购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

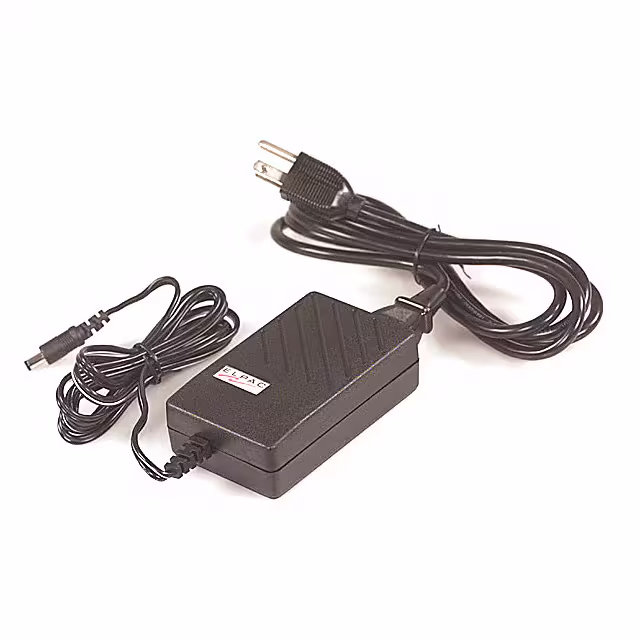

FW3015-760-NCAC/DC DESKTOP ADAPTER 15V 30W Inventus Power |
2,558 |
|
规格书 |
FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW3024-760-NCAC/DC DESKTOP ADAPTER 24V 30W Inventus Power |
3,469 |
|
规格书 |
FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1.25A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW5012-760-NCAC/DC DESKTOP ADAPTER 12V 50W Inventus Power |
4,673 |
|
规格书 |
FW50 (50W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 4.15A | 50 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
FW10024-D5-NCAC/DC DESKTOP ADAPTER 24V 96W Inventus Power |
3,959 |
|
规格书 |
FW100 (96W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 4A | 96 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
WM1830/.6-760AC/DC WALL MOUNT ADAPTER 30V 18W Inventus Power |
4,775 |
|
- |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 30V | 600mA | 18 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | - | - |
|
FW1805-760AC/DC DESKTOP ADAPTER 5V 15W Inventus Power |
1,932 |
|
规格书 |
FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
|
FW1812-760AC/DC DESKTOP ADAPTER 12V 18W Inventus Power |
2,477 |
|
规格书 |
FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 1.5A | 18 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
|
FW1824-760AC/DC DESKTOP ADAPTER 24V 18W Inventus Power |
1,592 |
|
规格书 |
FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 750mA | 18 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
FW3012-760AC/DC DESKTOP ADAPTER 12V 30W Inventus Power |
3,530 |
|
规格书 |
FW30 (30W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 2.5A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
|
FW3015-760AC/DC DESKTOP ADAPTER 15V 30W Inventus Power |
3,873 |
|
规格书 |
FW30 (30W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 15V | 2A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
