购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MW6512-D5-NC-WHAC/DC DESKTOP ADAPTER 12V 65W Inventus Power |
4,689 |
|
- |
MW65 | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 5.4A | 65 W | - | - | Medical | 80% | 0°C ~ 40°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.07" L x 3.06" W x 1.35" H (128.8mm x 77.7mm x 34.3mm) | CE |
|
|
MW6515-D5-NC-WHAC/DC DESKTOP ADAPTER 15V 65W Inventus Power |
3,286 |
|
- |
MW65 | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 15V | 4.3A | 65 W | - | - | Medical | 80% | 0°C ~ 40°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.07" L x 3.06" W x 1.35" H (128.8mm x 77.7mm x 34.3mm) | CE |
|

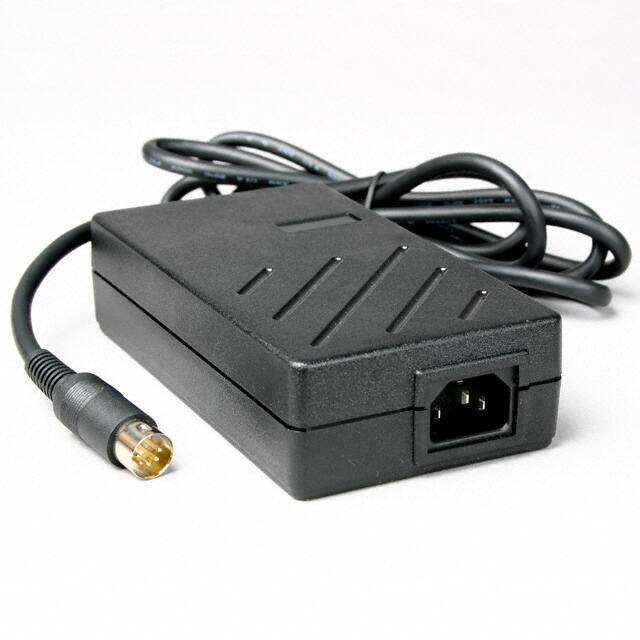

MWP9012-D8-NC-BKAC/DC DESKTOP ADAPTER 12V 90W Inventus Power |
3,429 |
|
规格书 |
MWP90 (90W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | - | - | Medical | 90% | 0°C ~ 40°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.90" L x 3.33" W x 1.50" H (149.9mm x 84.6mm x 38.1mm) | CE |
|
|
MWP9015-D8-NC-BKAC/DC DESKTOP ADAPTER 15V 90W Inventus Power |
1,738 |
|
规格书 |
MWP90 (90W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | - | - | Medical | 90% | 0°C ~ 40°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.90" L x 3.33" W x 1.50" H (149.9mm x 84.6mm x 38.1mm) | CE |
|
|
MWP9018-D8-NC-BKAC/DC DESKTOP ADAPTER 18V 90W Inventus Power |
1,404 |
|
规格书 |
MWP90 (90W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 5A | 90 W | - | - | Medical | 90% | 0°C ~ 40°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.90" L x 3.33" W x 1.50" H (149.9mm x 84.6mm x 38.1mm) | CE |
|
|
MWP9024-D8-NC-BKAC/DC DESKTOP ADAPTER 24V 90W Inventus Power |
4,805 |
|
规格书 |
MWP90 (90W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | - | - | Medical | 90% | 0°C ~ 40°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.90" L x 3.33" W x 1.50" H (149.9mm x 84.6mm x 38.1mm) | CE |
|

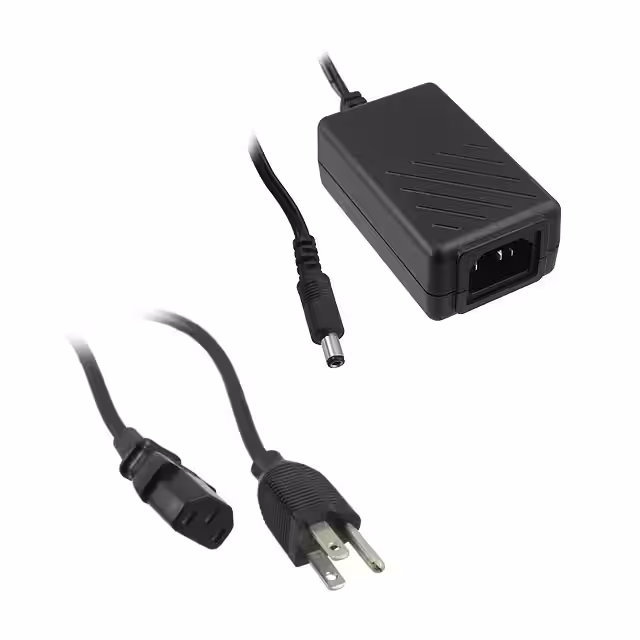

FW1805-760FAC/DC DESKTOP ADAPTER 5V 15W Inventus Power |
2,816 |
|
规格书 |
FW18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 5V | 3A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | 82% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | CB, CE, cTUVus, cULus, TUVgs |
|
|
FW1812-760FAC/DC DESKTOP ADAPTER 12V 18W Inventus Power |
2,663 |
|
规格书 |
FW18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 1.5A | 18 W | 500mW (Max) | Positive Center | ITE (Commercial) | 83% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | CB, CE, cTUVus, cULus, TUVgs |
|
|
FW1824-760FAC/DC DESKTOP ADAPTER 24V 19W Inventus Power |
3,867 |
|
规格书 |
FW18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 800mA | 19 W | 500mW (Max) | Positive Center | ITE (Commercial) | 86% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | CB, CE, cTUVus, cULus, TUVgs |
|
|
FW6024-D5FAC/DC DESKTOP ADAPTER 24V 60W Inventus Power |
2,347 |
|
规格书 |
FW60 (60W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 2.5A | 60 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
