购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

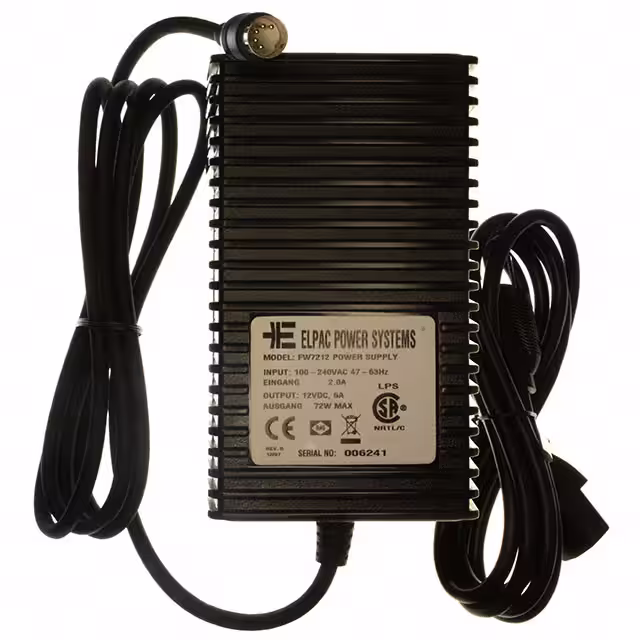

FW7212-D5FAC/DC DESKTOP ADAPTER 12V 72W Inventus Power |
3,135 |
|
规格书 |
FW72 (72W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 6A | 72 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | CE |
|
FW3012-760FAC/DC DESKTOP ADAPTER 12V 29W Inventus Power |
3,252 |
|
规格书 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 2.4A | 29 W | 300mW (Max) | Positive Center | ITE (Commercial) | 83% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | CB, CE, cULus, TUVgs |
|
|
FW3015-760FAC/DC DESKTOP ADAPTER 15V 30W Inventus Power |
1,658 |
|
规格书 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | 84% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | CB, CE, cULus, TUVgs |
|
|
FW3024-760FAC/DC DESKTOP ADAPTER 24V 36W Inventus Power |
1,532 |
|
规格书 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 1.5A | 36 W | 300mW (Max) | Positive Center | ITE (Commercial) | 86% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | CB, CE, cULus, TUVgs |
|

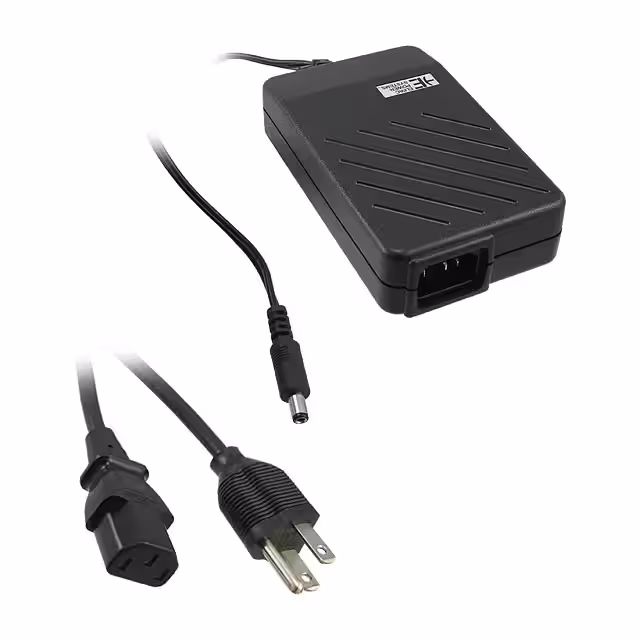

FW5012-760FAC/DC DESKTOP ADAPTER 12V 50W Inventus Power |
1,688 |
|
规格书 |
FW50 (50W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 4.15A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | 83% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | CCC, CE, cULus, TUVgs |
|
|
FW5024-760FAC/DC DESKTOP ADAPTER 24V 50W Inventus Power |
2,843 |
|
规格书 |
FW50 (50W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 2.1A | 50 W | 300mW (Max) | Positive Center | ITE (Commercial) | 83% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | CCC, CE, cULus, TUVgs |
|

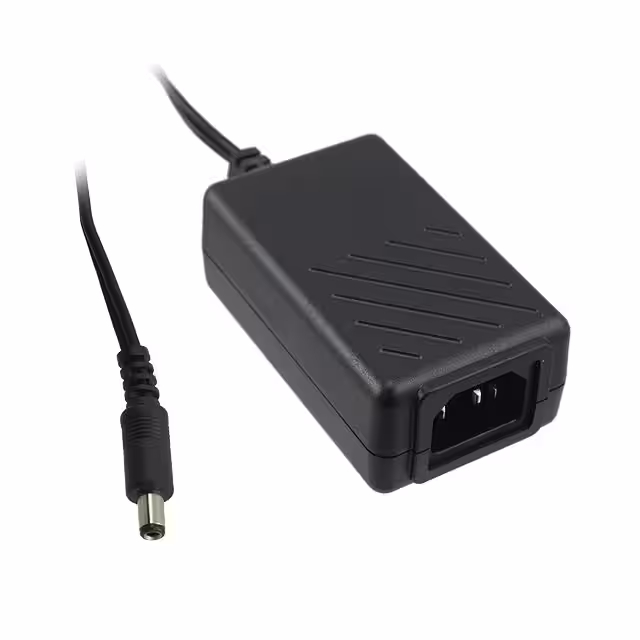

MW1212-760-NC-BKAC/DC DESKTOP ADAPTER 12V 12W Inventus Power |
4,154 |
|
规格书 |
MW12 (12W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 1A | 12 W | - | Positive Center | Medical | 80% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | CE |
|
FWP10024-D5FAC/DC DESKTOP ADAPTER 24V 100W Inventus Power |
4,158 |
|
- |
FWP100 | - | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 4.15A | 100 W | - | - | ITE (Commercial) | 80% | 0°C ~ 40°C | DIN, 5 Pin | - | - | - | 7.36" L x 4.33" W x 2.32" H (187.0mm x 110.0mm x 59.0mm) | CB, CE |
|
MW4009-760F-NC-BKAC/DC DESKTOP ADAPTER 9V 40W Inventus Power |
1,152 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 4.4A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
MW4009-760F-NC-WHAC/DC DESKTOP ADAPTER 9V 40W Inventus Power |
1,633 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 4.4A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
