| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FW3024-760AC/DC DESKTOP ADAPTER 24V 30W Inventus Power |
3,776 |
|
规格书 |
FW30 (30W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 1.25A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW5012-760AC/DC DESKTOP ADAPTER 12V 50W Inventus Power |
2,261 |
|
规格书 |
FW50 (50W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 4.15A | 50 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
FW5024-760AC/DC DESKTOP ADAPTER 24V 50W Inventus Power |
2,978 |
|
规格书 |
FW50 (50W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 2.1A | 50 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|

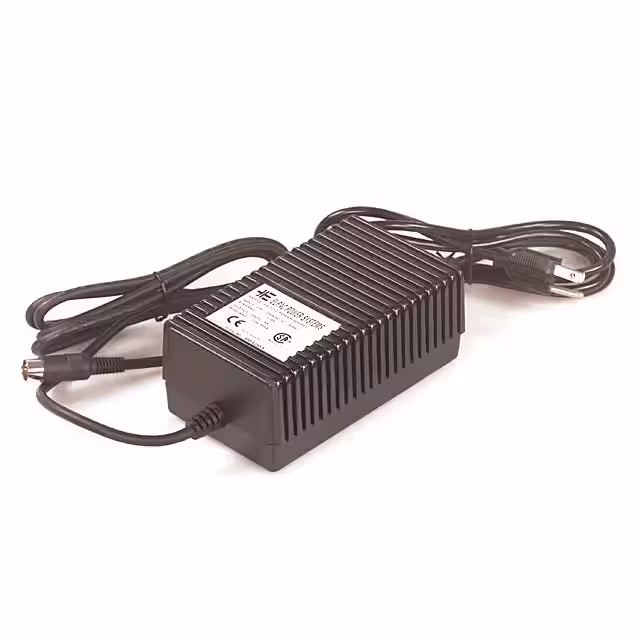

FW7212-D5AC/DC DESKTOP ADAPTER 12V 72W Inventus Power |
3,108 |
|
规格书 |
FW72 (72W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 6A | 72 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | CE |
|

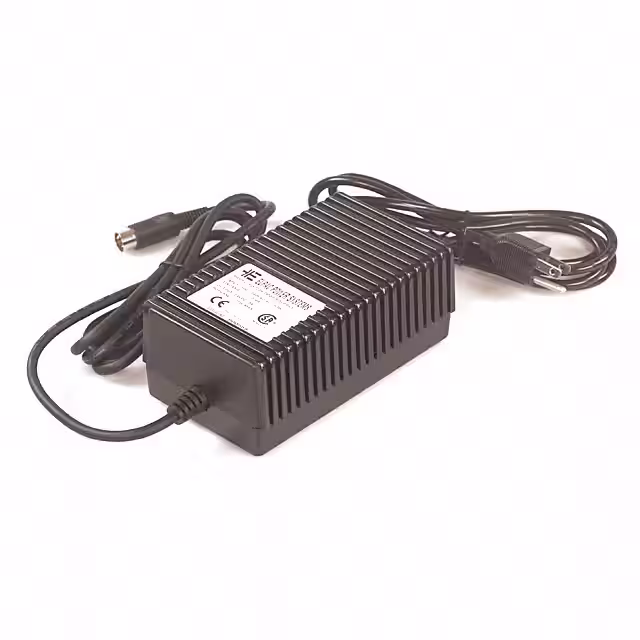

FW7224-D5AC/DC DESKTOP ADAPTER 24V 72W Inventus Power |
1,606 |
|
规格书 |
FW72 (72W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 3A | 72 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | CE |
|

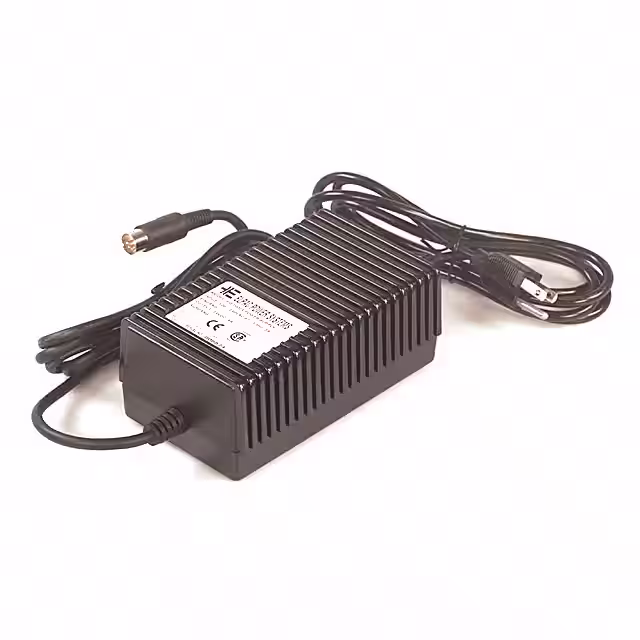

FW10024-D5AC/DC DESKTOP ADAPTER 24V 96W Inventus Power |
1,705 |
|
规格书 |
FW100 (96W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 4A | 96 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
MW4015-760-NC-BKAC/DC DESKTOP ADAPTER 15V 39W Inventus Power |
3,997 |
|
规格书 |
MW40 (40W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2.6A | 39 W | - | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
MW1212-760-NC-WHAC/DC DESKTOP ADAPTER 12V 12W Inventus Power |
4,564 |
|
规格书 |
MW12 (12W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 1A | 12 W | - | Positive Center | Medical | 78% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | CE |
|
MW2412-760-NC-WHAC/DC DESKTOP ADAPTER 12V 24W Inventus Power |
3,415 |
|
规格书 |
MW24 (24W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 2A | 24 W | - | Positive Center | Medical | 80% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | CB, CE |
|
|
MW2424-760-NC-WHAC/DC DESKTOP ADAPTER 24V 24W Inventus Power |
2,387 |
|
规格书 |
MW24 (24W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1A | 24 W | - | Positive Center | Medical | 80% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | CB, CE |
