购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWA220012A-13BAC/DC DESKTOP ADAPTER 12V 220W Inventus Power |
3,270 |
|
规格书 |
FWA220 (220W) | Bulk | Discontinued at Digi-Key | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 18.3A | 220 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
MI2612-760AC/DC DESKTOP ADAPTER 12V 26W Inventus Power |
1,816 |
|
规格书 |
MI (15-28W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.17A | 26 W | - | Positive Center | ITE (Commercial) | 75% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | CE |
|
WRI3021-D5AC/DC DESKTOP ADAPTER 5V/12V 28W Inventus Power |
3,914 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V | 2A, 1.5A | 28 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
WRI3012-D5AC/DC DESKTOP ADAPTER 12V 30W Inventus Power |
4,673 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2.5A | 30 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|

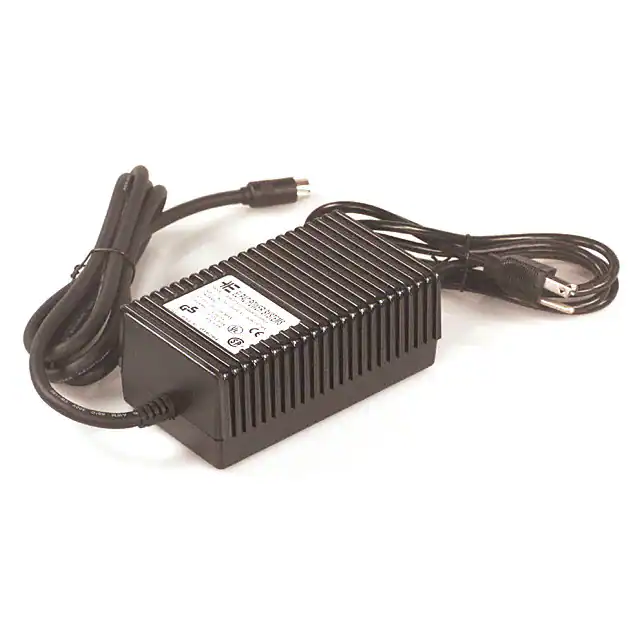

WRI2731-D5AC/DC DSKTP ADAPTER 5V +/-12 27W Inventus Power |
2,625 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 500mA, 500mA | 27 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|

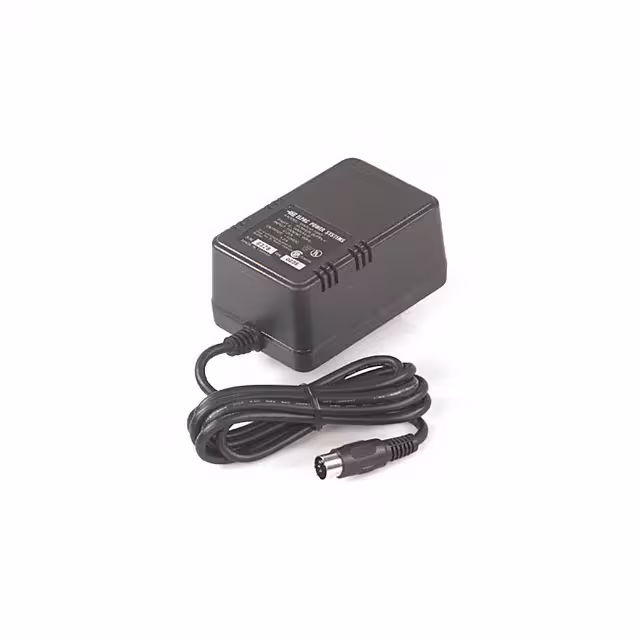

WM144-1950-SAC/DC WALL MOUNT ADAPTER 12V 14W Inventus Power |
2,107 |
|
规格书 |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 12V | 1.2A | 14 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | - | NEMA 1-15P | - | - | - |
|
WM075-1950-D5AC/DC WALL MOUNT ADAPTER 5V 7.5W Inventus Power |
1,658 |
|
规格书 |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 5V | 1.5A | 7.5 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | - | NEMA 1-15P | - | - | - |
|

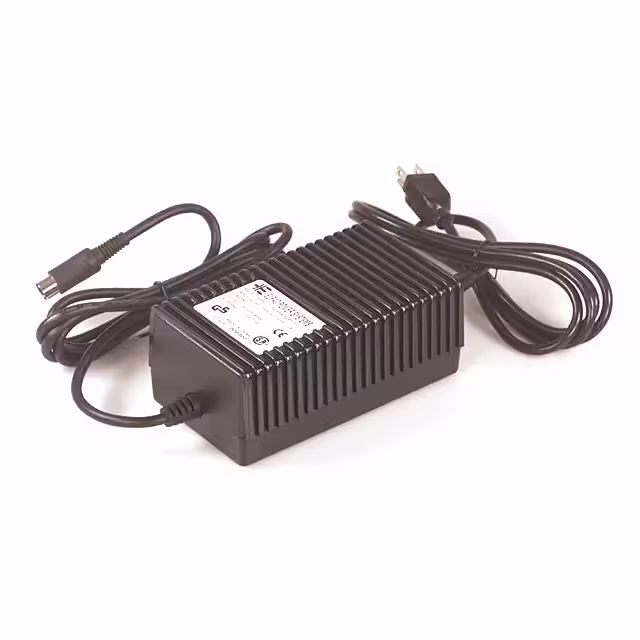

WRI3031-D5AC/DC DSKTP ADAPTER 5V +/-12 30W Inventus Power |
4,973 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 2A, 1.5A, 500mA | 30 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
WRI4212-D5AC/DC DESKTOP ADAPTER 12V 42W Inventus Power |
2,888 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3.5A | 42 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|

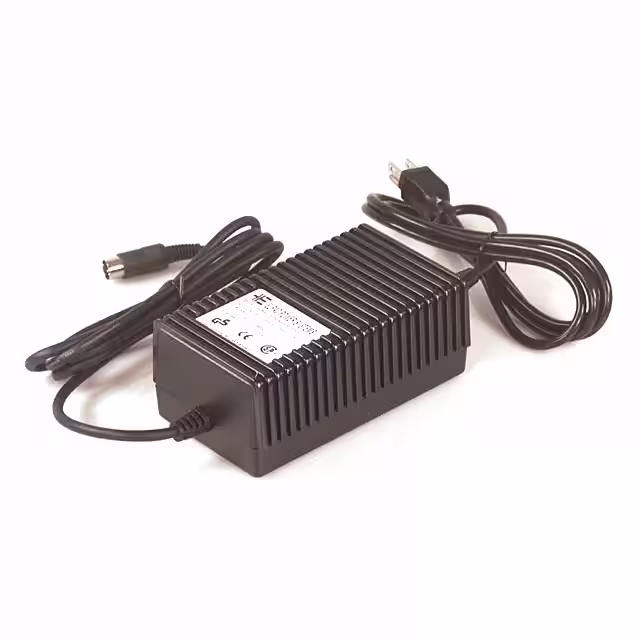

WRI4214-D5AC/DC DESKTOP ADAPTER 24V 42W Inventus Power |
2,523 |
|
规格书 |
WRI | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.75A | 42 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
