购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWA150048B-11AAC/DC DESKTOP ADAPTER 48V 154W Inventus Power |
1,298 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.2A | 154 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C8 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.6mm) | CE, cTUVus |
|
|
MWA150015B-12AAC/DC DESKTOP ADAPTER 15V 150W Inventus Power |
3,266 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 10A | 150 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C8 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.6mm) | CE, cTUVus |
|
|
MWA150018B-12AAC/DC DESKTOP ADAPTER 18V 149W Inventus Power |
2,948 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 8.3A | 149 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C8 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.6mm) | CE, cTUVus |
|

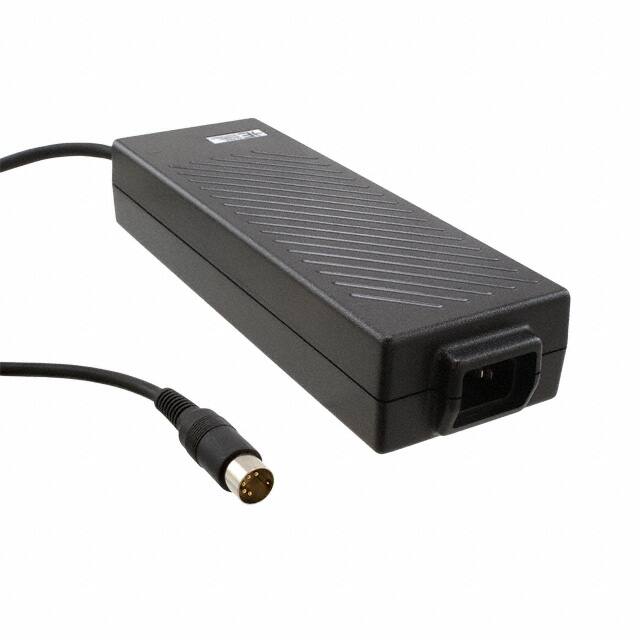

MWA180048A-11AAC/DC DESKTOP ADAPTER 48V 180W Inventus Power |
2,003 |
|
规格书 |
MWA180 (180W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.75A | 180 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
FWA220018A-13BAC/DC DESKTOP ADAPTER 18V 220W Inventus Power |
3,702 |
|
规格书 |
FWA220 (220W) | Bulk | Discontinued at Digi-Key | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 18V | 12.2A | 220 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
MWA180018A-13AAC/DC DESKTOP ADAPTER 18V 180W Inventus Power |
1,910 |
|
规格书 |
MWA180 (180W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 10A | 180 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
MWA220018A-13AAC/DC DESKTOP ADAPTER 18V 220W Inventus Power |
3,808 |
|
规格书 |
MWA220 (220W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 12.2A | 220 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
|
MWA220015A-13AAC/DC DESKTOP ADAPTER 15V 219W Inventus Power |
3,716 |
|
规格书 |
MWA220 (220W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 14.6A | 219 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 6 Pin | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.3mm x 73.7mm x 40.6mm) | CE, cTUVus |
|

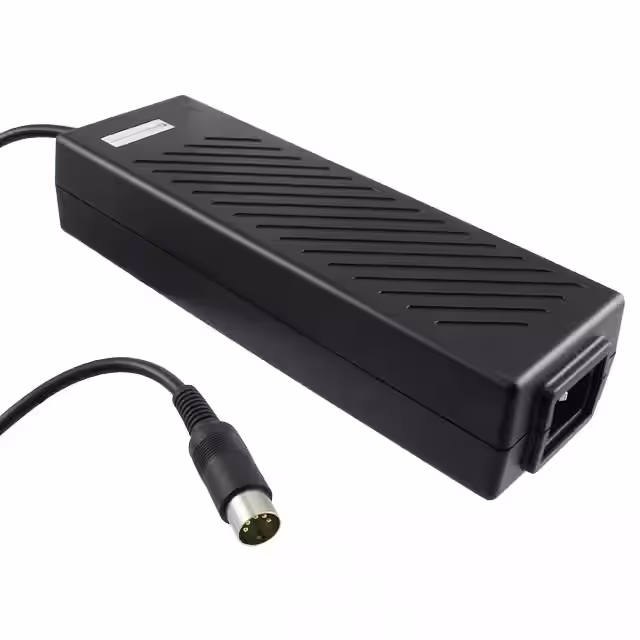

MWA120048A-11AAC/DC DESKTOP ADAPTER 48V 120W Inventus Power |
4,066 |
|
规格书 |
MWA120 (120W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 2.5A | 120 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
|

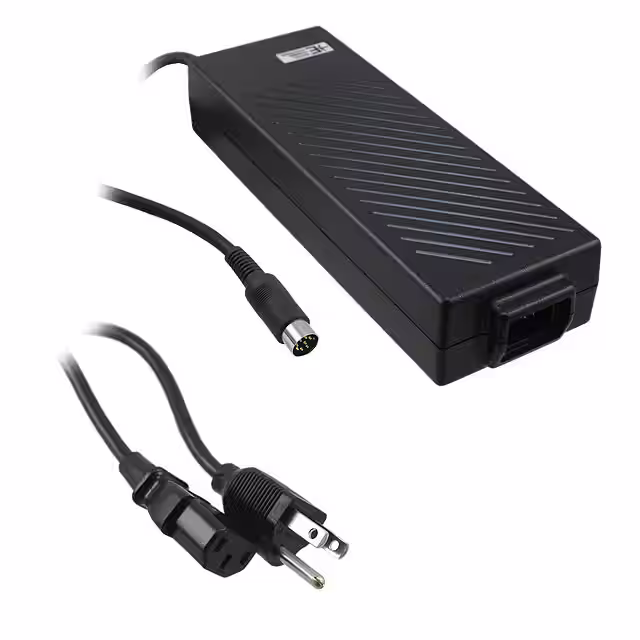

FWA220024A-12BAC/DC DESKTOP ADAPTER 24V 221W Inventus Power |
3,537 |
|
规格书 |
FWA220 (220W) | Bulk | Discontinued at Digi-Key | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 9.2A | 221 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
