购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BE12-4A85-MHIGH VOLTAGE REED RELAY, FORM 4A Standex-Meder Electronics |
4,450 |
|
规格书 |
BE | Tube | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
BE24-1A85-PRELAY REED SPST 1A 24V Standex-Meder Electronics |
2,455 |
|
规格书 |
BE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE12-2A85-PRELAY REED DPST 1A 12V Standex-Meder Electronics |
4,173 |
|
规格书 |
BE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
HI12-1A85RELAY REED SPST-NO 1A 12V Standex-Meder Electronics |
4,955 |
|
规格书 |
HI | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|

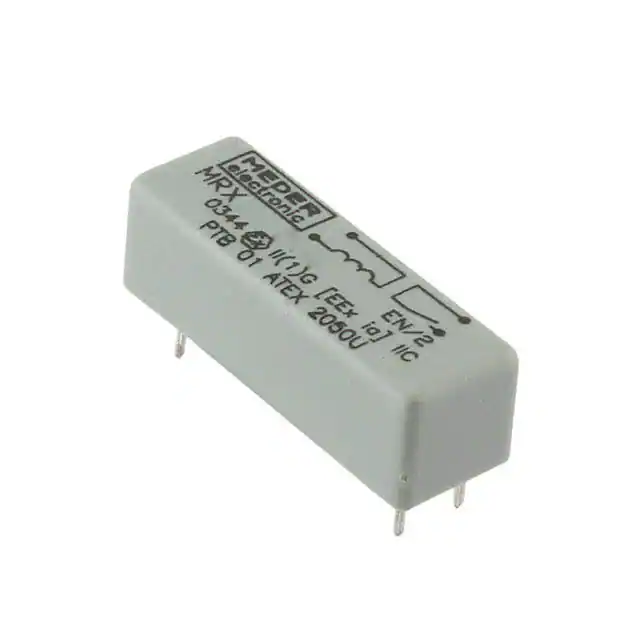

MRX05-1A71REED RELAY SPST-NO 5V ATEX PLAST Standex-Meder Electronics |
3,240 |
|
规格书 |
MRX | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -40°C ~ 85°C | - |
|
MRX12-1C90REED RELAY SPDT CHANGE 12V ATEX Standex-Meder Electronics |
2,164 |
|
规格书 |
MRX | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 240 mA | 28VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 2 ms | 2 ms | -20°C ~ 85°C | - |
|
|
BH12-4A85-MHIGH VOLTAGE AND INSULATION REED Standex-Meder Electronics |
3,570 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
MRX12-1A71REED RELAY SPST-NO 12V ATEX PLAS Standex-Meder Electronics |
3,289 |
|
规格书 |
MRX | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
BT24-2A66RELAY REED DPST 500MA 24V Standex-Meder Electronics |
3,493 |
|
规格书 |
BT | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 1.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
HE12-1B83RELAY REED SPST 3A 12V Standex-Meder Electronics |
1,394 |
|
规格书 |
HE | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
