购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BE24-1A85-MHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
3,071 |
|
规格书 |
BE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
MRE24-1A85-HCHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
1,903 |
|
规格书 |
MRE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | Magnetic Shield | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
BE12-1A85-PRELAY REED SPST 1A 12V Standex-Meder Electronics |
4,400 |
|
规格书 |
BE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 19.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BH12-1A85-MHIGH VOLTAGE AND INSULATION REED Standex-Meder Electronics |
2,553 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
BH24-1A85-MHIGH VOLTAGE AND INSULATION REED Standex-Meder Electronics |
1,212 |
|
- |
BH | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2.4 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
MRE24-2A85-PHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
3,764 |
|
规格书 |
MRE | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
MRE12-1A85-HVHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
2,934 |
|
规格书 |
MRE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.8 VDC | 1.2 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
BE24-1A66+1B66-MGENERAL PUPOSE REED RELAY, FORM Standex-Meder Electronics |
3,835 |
|
规格书 |
BE | Tube | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 500 mA | 200VAC, 200VDC - Max | 17.8 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 1.3 VDC | 0.5 ms | 100 µs | -20°C ~ 70°C | - |
|
|

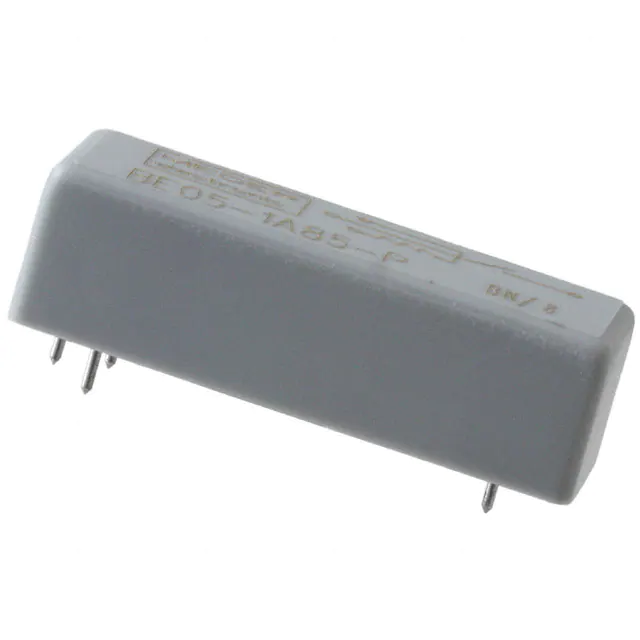

BE05-1A85-PRELAY REED SPST 1A 5V Standex-Meder Electronics |
4,384 |
|
规格书 |
BE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BH12-2A85-MHIGH VOLTAGE AND INSULATION REED Standex-Meder Electronics |
4,400 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
