购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

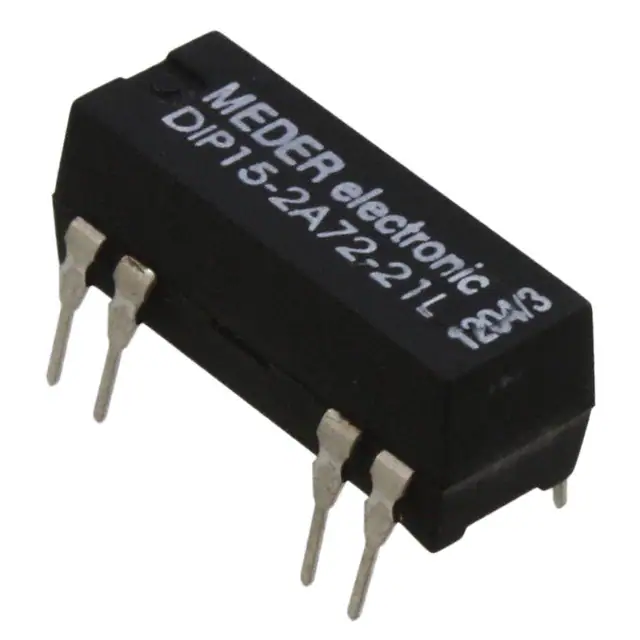

DIP15-2A72-21LRELAY REED DPST-NO 1A 15V Standex-Meder Electronics |
1,355 |
|
规格书 |
DIP | Tube | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 10.5 VDC | 2.2 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MS05-1A87-75LRELAY REED SPST 500MA 5V Standex-Meder Electronics |
2,743 |
|
规格书 |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-1A72-12DRELAY REED SPST 1A 24V Standex-Meder Electronics |
2,771 |
|
规格书 |
DIP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MRE24-1A85-HVHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
4,625 |
|
规格书 |
MRE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
SHV24-1A85-78D3KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
1,811 |
|
规格书 |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
MRE12-1A85-HCHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
2,181 |
|
规格书 |
MRE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | Magnetic Shield | PC Pin | Sealed - Fully | 8.5 VDC | 1.2 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
RM05-8A-SPRELAY REED 8PST 0.5A 5V Standex-Meder Electronics |
3,680 |
|
规格书 |
RM | Bulk | Active | Through Hole | 5VDC | 8PST-NO (8 Form A) | 500 mA | 170VAC, 170VDC - Max | 10 mA | Non Latching | - | PC Pin | - | - | - | 0.6 ms | 0.1 ms | -20°C ~ 85°C | - |
|
NP05-1A66-500-210RELAY REED SPST 500MA 5V Standex-Meder Electronics |
1,806 |
|
规格书 |
NP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
SIL05-1A72-74LRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
1,117 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE05-1A85-MHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
1,222 |
|
- |
BE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
