| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS05-1A87-75DGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
160 |
|
规格书 |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 100 µs | -20°C ~ 70°C | - |
|
MS12-1A87-75LRELAY REED SPST 500MA 12V Standex-Meder Electronics |
305 |
|
规格书 |
MS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-1A72-12LRELAY REED SPST 1A 24V Standex-Meder Electronics |
164 |
|
规格书 |
DIP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP24-1C90-51DRELAY REED SPDT 500MA 24V Standex-Meder Electronics |
158 |
|
规格书 |
DIP | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL05-1C90-51DGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
391 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL05-1C90-51QGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
375 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|

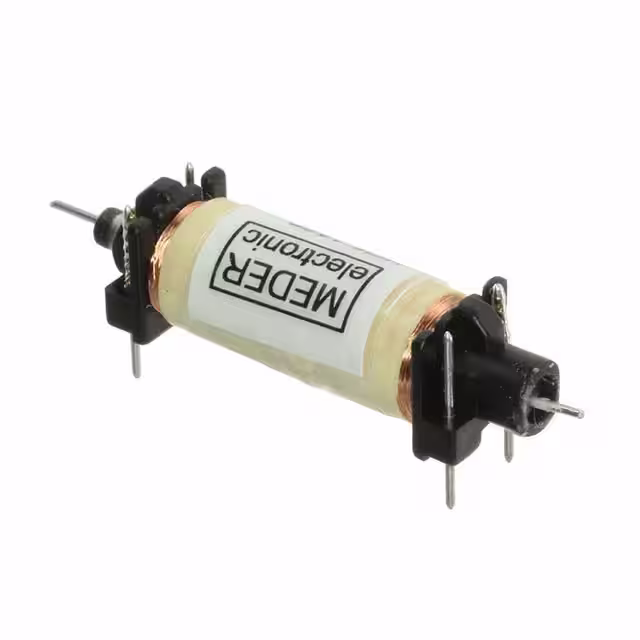

HI05-1A66REED RELAY SPST-NO 5V PCB Standex-Meder Electronics |
470 |
|
规格书 |
HI | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78L3KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
238 |
|
规格书 |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
SIL05-1C90-51LGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
400 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78D4KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
143 |
|
规格书 |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
