购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5GL111-2SWITCH SNAP ACT SPST-NC 5A 125V |
494 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
AV464461SWITCH SNAP ACTION SPDT 0.1A 30V |
204 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|

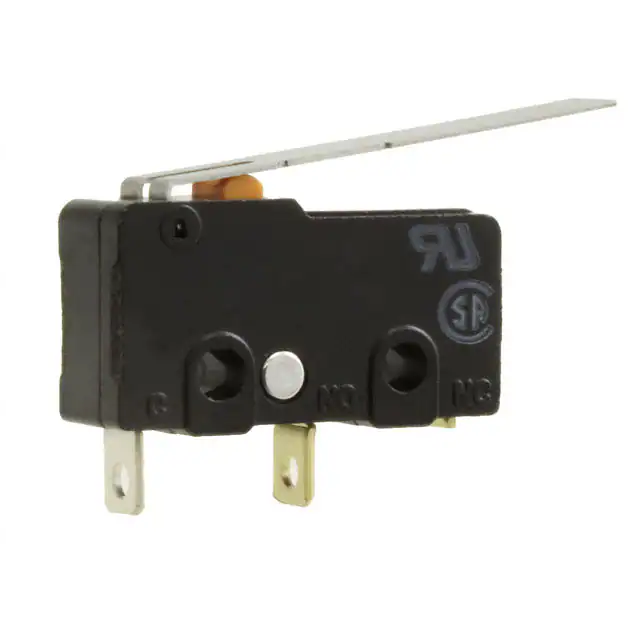

SS-5GL111-3SWITCH SNAP ACT SPST-NO 5A 125V |
154 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

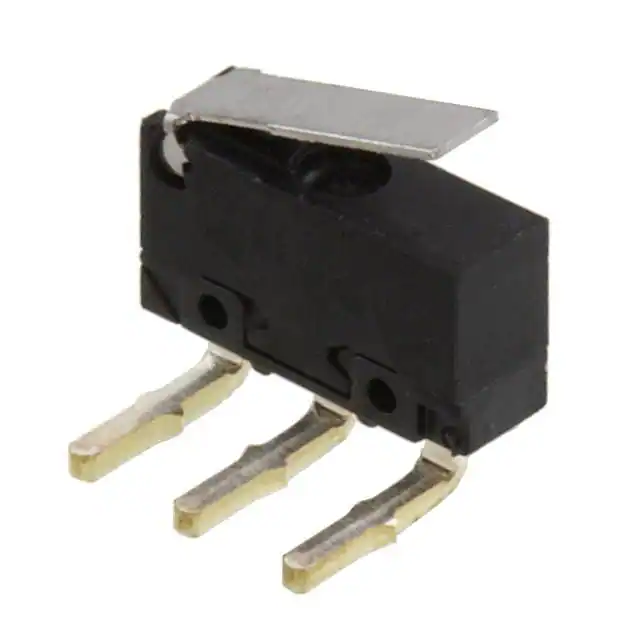

AV4624SWITCH SNAP ACTION SPDT 0.5A 30V |
4,151 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 25gf | - | 0.228" (5.8mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|

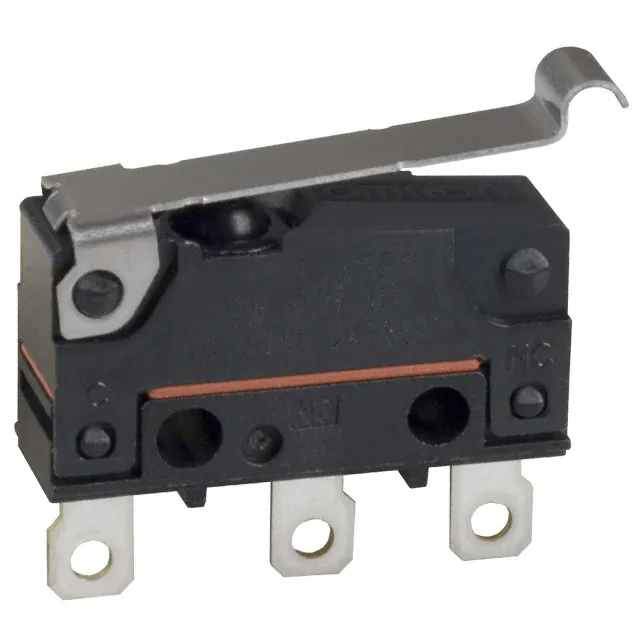

D2SW-P2L3HSWITCH SNAP ACTION SPDT 2A 250V |
1,735 |
|
规格书 |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|

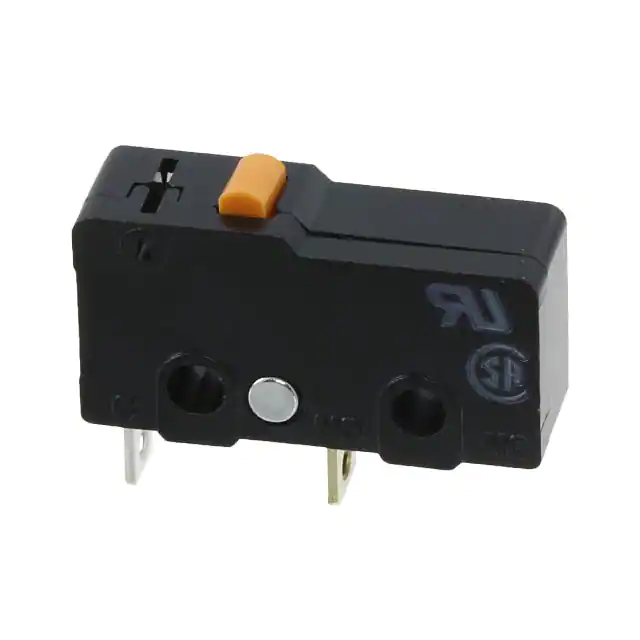

SS-01-E-3SWITCH SNP ACT SPST-NO 0.1A 125V |
302 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|

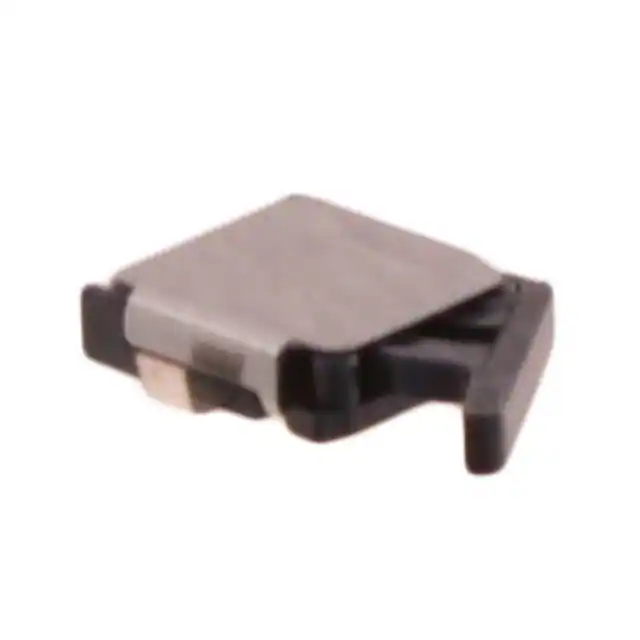

D3SH-A0RSWITCH DETECT SPST-NO 0.001A 5V |
2,505 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
D3SH-B1L1SWITCH DETECT SPST-NC 0.001A 5V |
793 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Left Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
D3SH-B1R1SWITCH DETECT SPST-NC 0.001A 5V |
494 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Right Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|

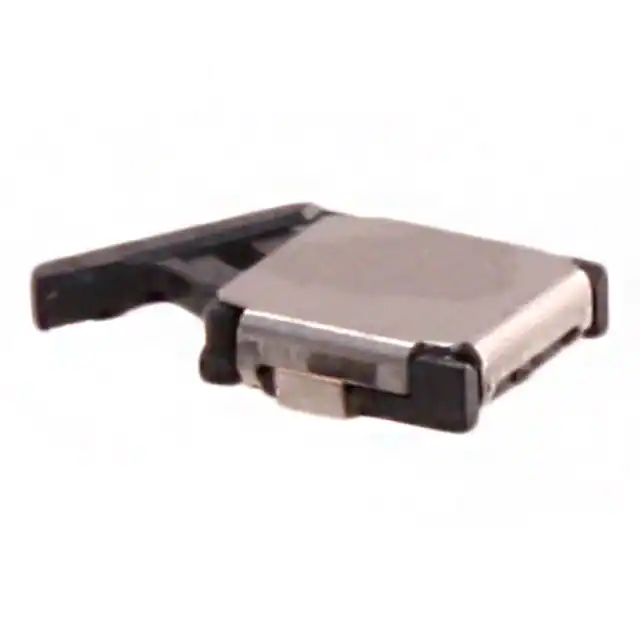

D3SH-A0LSWITCH DETECT SPST-NO 0.001A 5V |
329 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Left Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SH-B0RSWITCH DETECT SPST-NC 0.001A 5V |
155 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
VM3CQF0802L02SWITCH LIMIT SPDT 16A 125V |
119 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 20gf | 0.697" (17.7mm) | 0.122" (3.1mm) | 0.027" (0.7mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
|
D2GW-A02HSEALED SWITCH PCB PIN PLUNGER |
604 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

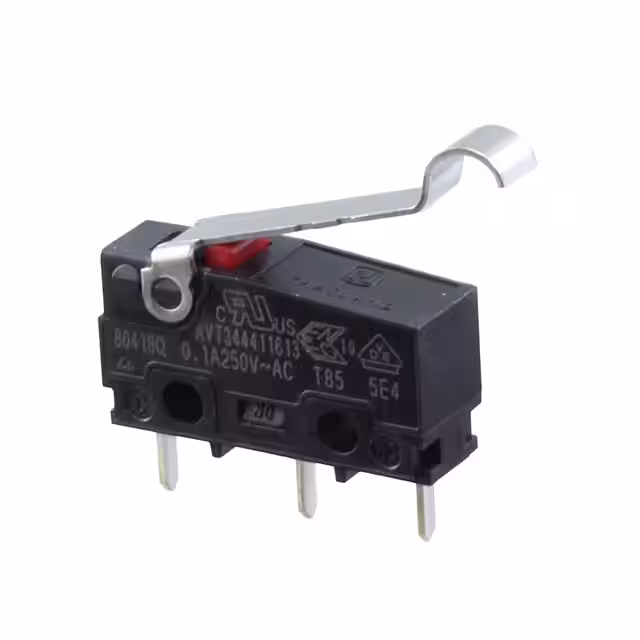

AVT344411613SWITCH SNAP ACT SPDT 0.1A 125V |
547 |
|
规格书 |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 35gf | 3.059gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-L3-DSWITCH SNAP ACTION SPDT 3A 125V |
8,778 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
VM3CQF0801L03SWITCH LIMIT SPDT 16A 125V |
177 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
SS-5-FTSWITCH SNAP ACTION SPDT 5A 125V |
3,478 |
|
规格书 |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D2F-FL-TSWITCH SNAP ACTION SPDT 1A 125V |
964 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V15H22-CZ100A05-KSWITCH SNAP ACTION SPDT 22A 250V |
236 |
|
规格书 |
V15 | Tray | Active | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|
D3V-166-1A4SWITCH SNAP ACTION SPDT 16A 250V |
1,375 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
