购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM3CQF0804L04SWITCH LIMIT SPDT 5A 125V |
178 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|

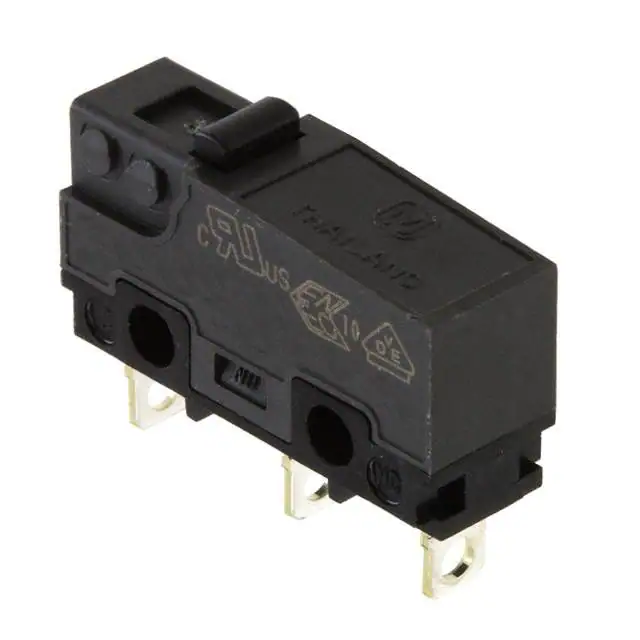

AVL32053-ASWITCH SNAP ACTION SPDT 5A 125V |
990 |
|
规格书 |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D2F-DSWITCH SNAP ACTION SPDT 3A 125V |
1,675 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
D2F-L30SWITCH SNAP ACTION SPDT 3A 125V |
1,808 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 150gf | 4.079gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
AH15849-ASWITCH SNAP ACTION SPDT 1A 125V |
525 |
|
规格书 |
AH1 | Tube | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 26gf | 2.039gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
D2F-01-DSWITCH SNAP ACTION SPDT 0.1A 30V |
583 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
D2F-FL3-D3SWITCH SNAP ACTION SPDT 1A 125V |
455 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2AW-A003D RSWITCH SNAP ACT SPST-NO 0.1A 12V |
1,738 |
|
规格书 |
D2AW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-A002D RSWITCH SNAP ACT SPST-NC 0.1A 12V |
620 |
|
规格书 |
D2AW | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
D2F-FL-DSWITCH SNAP ACTION SPDT 1A 125V |
475 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

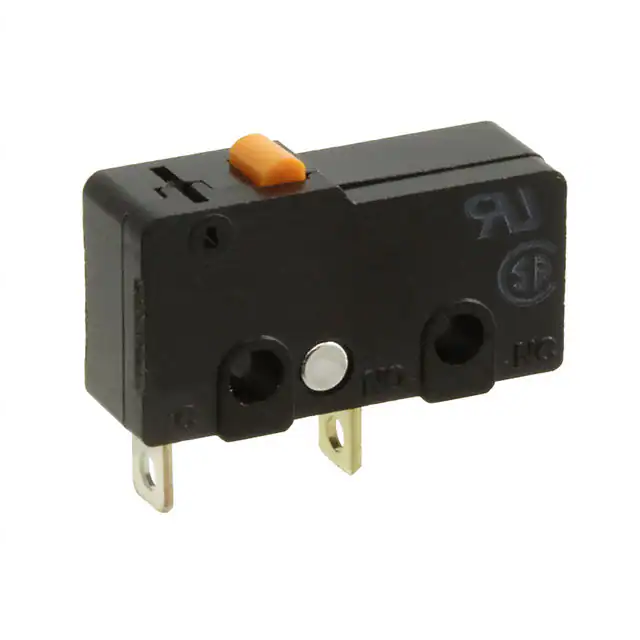

SS-5-F-3SWITCH SNAP ACT SPST-NO 5A 125V |
435 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D2A-1120SWITCH SNAP ACTION SPDT 0.1A 30V |
2,430 |
|
规格书 |
D2A | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | IP00 | - | 50gf | 5.099gf | 0.319" (8.1mm) | - | - | - | -10°C ~ 80°C |
|
ZM50E10E01SWITCH SNAP ACTION SPDT 5A 125V |
4,116 |
|
规格书 |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 8.000gf | 0.594" (15.1mm) | 0.205" (5.2mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
V7-2B17E9SWITCH SNAP ACTION SPDT 11A 125V |
2,098 |
|
规格书 |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 75gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

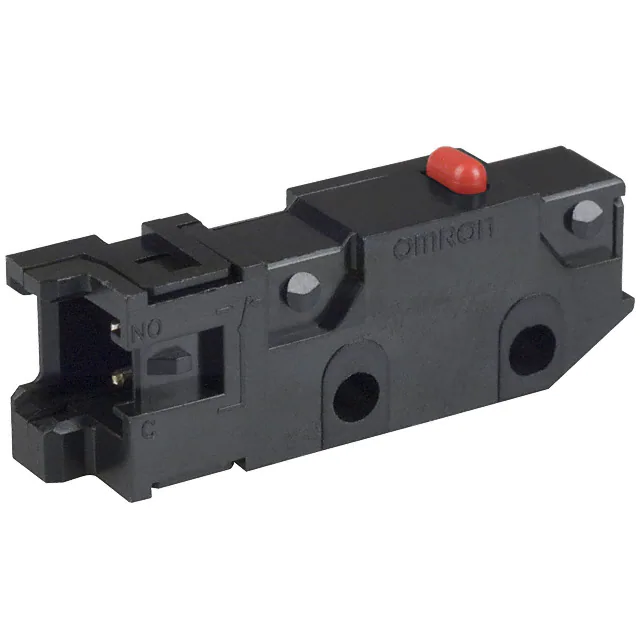

D3M-01SWITCH SNAP ACT SPST-NC 0.1A 30V |
500 |
|
规格书 |
D3M | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP40 | - | 153gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

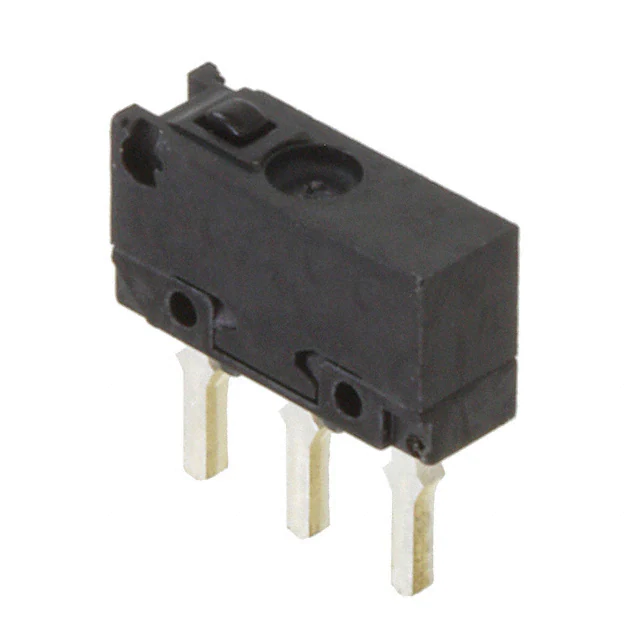

AV4404SWITCH SNAP ACTION SPDT 0.5A 30V |
210 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 100gf | - | 0.189" (4.8mm) | 0.012" (0.3mm) | 0.004" (0.1mm) | 0.004" (0.1mm) | -25°C ~ 80°C |
|

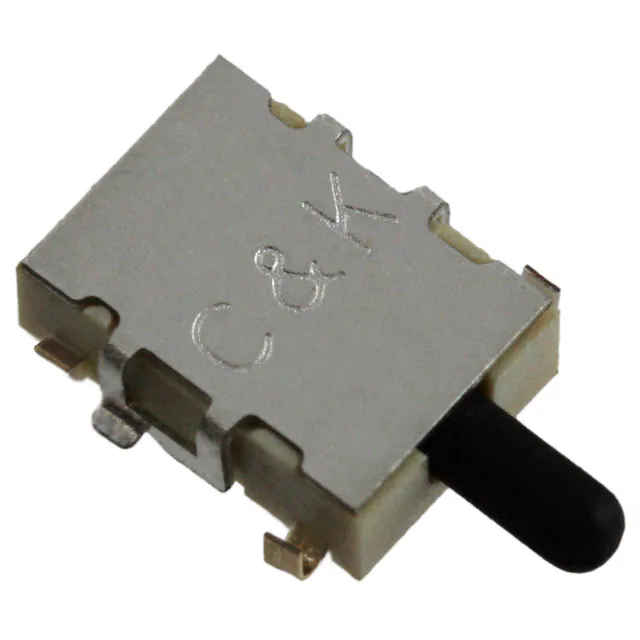

SDS005RSWITCH DETECT SPST-NC 100MA 12V |
3,088 |
|
规格书 |
SDS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

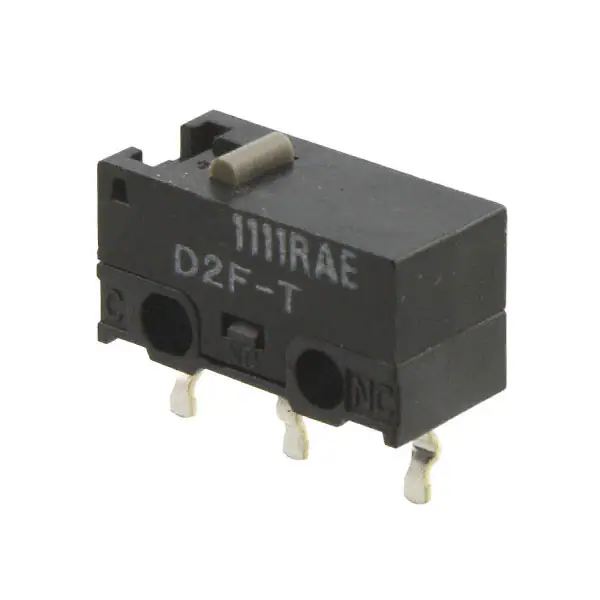

D2F-TSWITCH SNAP ACTION SPDT 3A 125V |
917 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
D3C-2210SWITCH DETECTOR SPDT 0.1A 30V |
1,498 |
|
规格书 |
D3C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | IP00 | - | 130gf | 10gf | 0.134" (3.4mm) | - | - | - | -20°C ~ 80°C |
|
D2F-F-D3SWITCH SNAP ACTION SPDT 1A 125V |
1,042 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
