购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

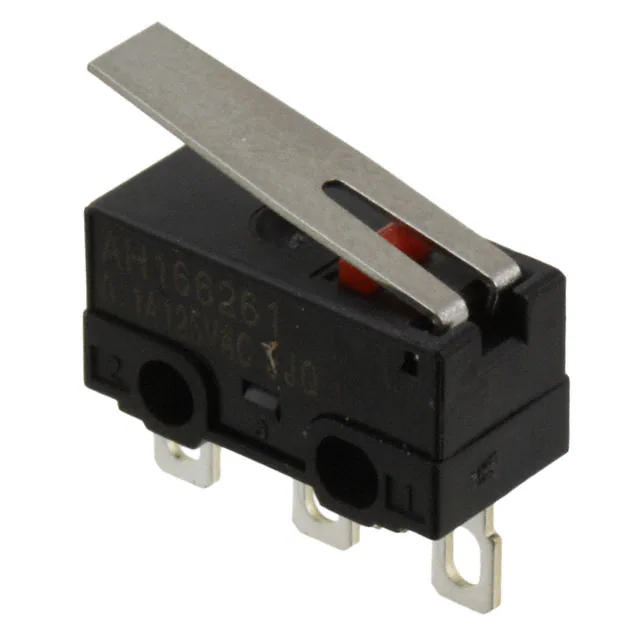

AH168261-ASWITCH SNAP ACT SPDT 0.1A 125V |
381 |
|
规格书 |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 2.500gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|

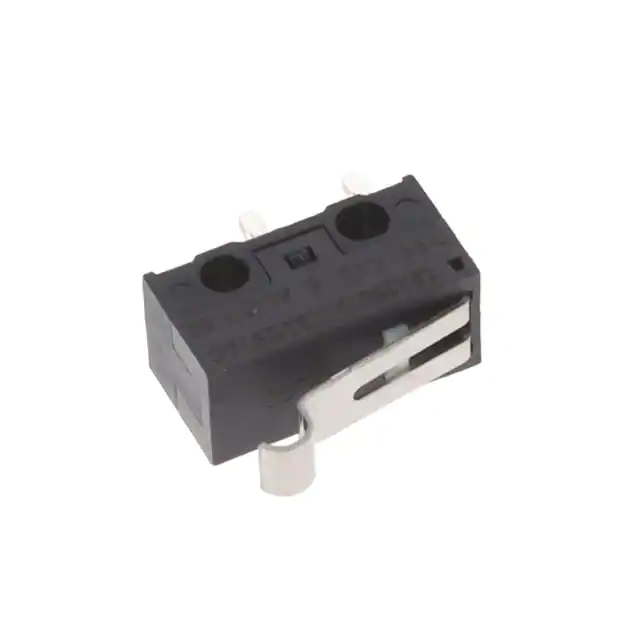

SAJ13XXRHLN88SNOPTQSWITCH SNAP ACT SPST-NO 3A 125V |
310 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.400" (10.2mm) | 0.150" (3.8mm) | 0.018" (0.45mm) | 0.020" (0.5mm) | -25°C ~ 75°C |
|
MS0850504F065C1ASWITCH SNAP ACTION SPDT 5A 125V |
249 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 65gf | 25gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
MS0850507F025C1ASWITCH SNAP ACTION SPDT 5A 125V |
324 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.492" (12.5mm) | 0.197" (5.0mm) | - | - | -25°C ~ 85°C |
|

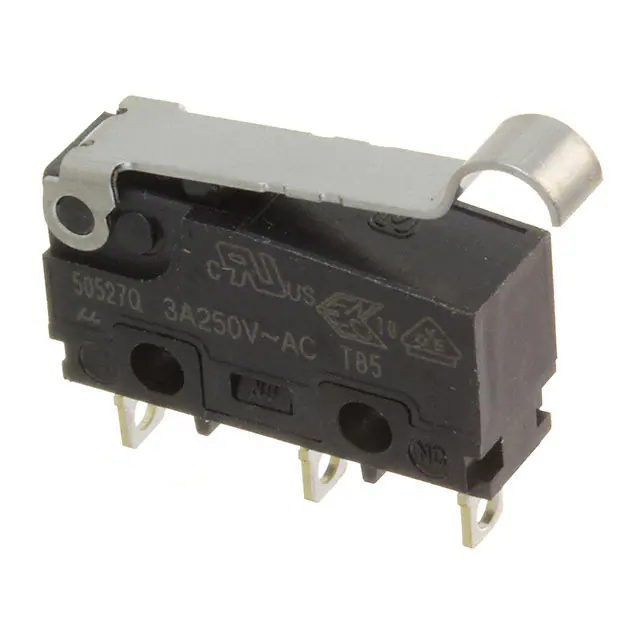

AVT32423SWITCH SNAP ACTION SPDT 3A 125V |
826 |
|
规格书 |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 16gf | 1.530gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

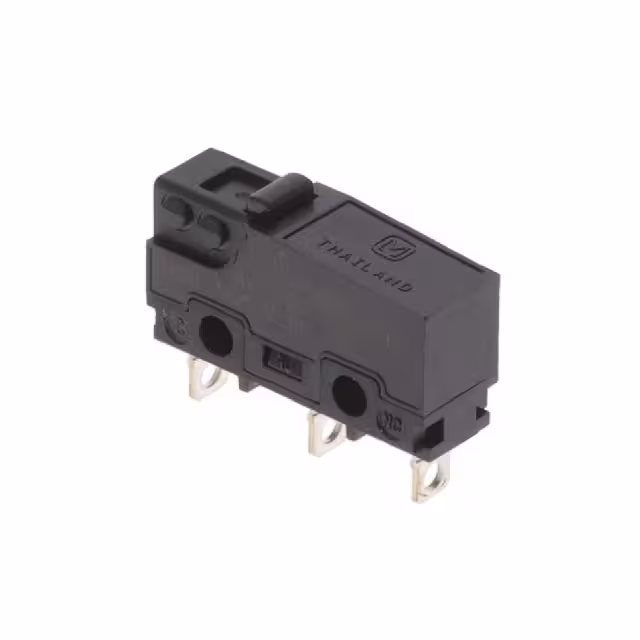

AVT32023SWITCH SNAP ACTION SPDT 3A 125V |
197 |
|
规格书 |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SM3CQF0803L01SWITCH LIMIT SPDT 5A 125V |
680 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|

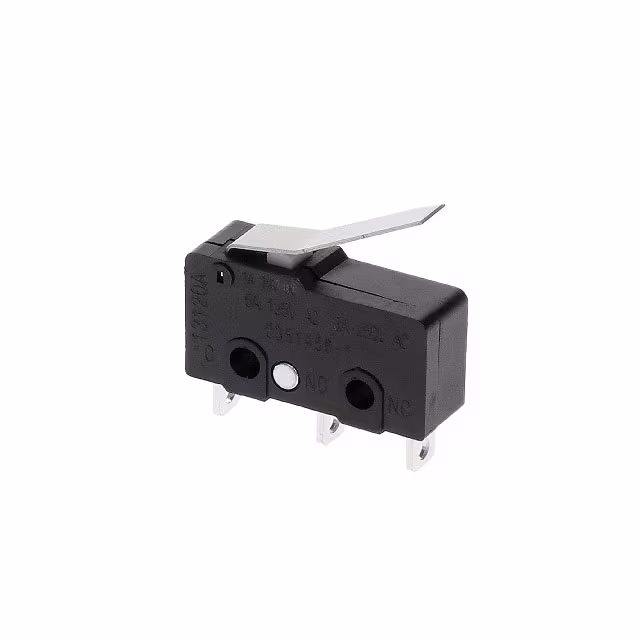

SAJ25YXUL1147SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
110 |
|
规格书 |
SAJ2 | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 60gf | 0.492" (12.5mm) | 0.138" (3.5mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 75°C |
|
|
AVL3205613SWITCH SNAP ACT SPDT 0.1A 125V |
147 |
|
规格书 |
AVL3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

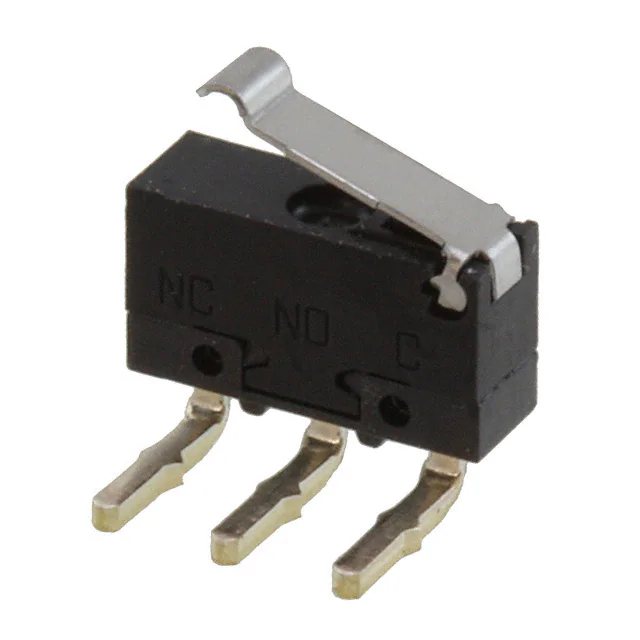

AV4544SWITCH SNAP ACTION SPDT 0.5A 30V |
3,192 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|

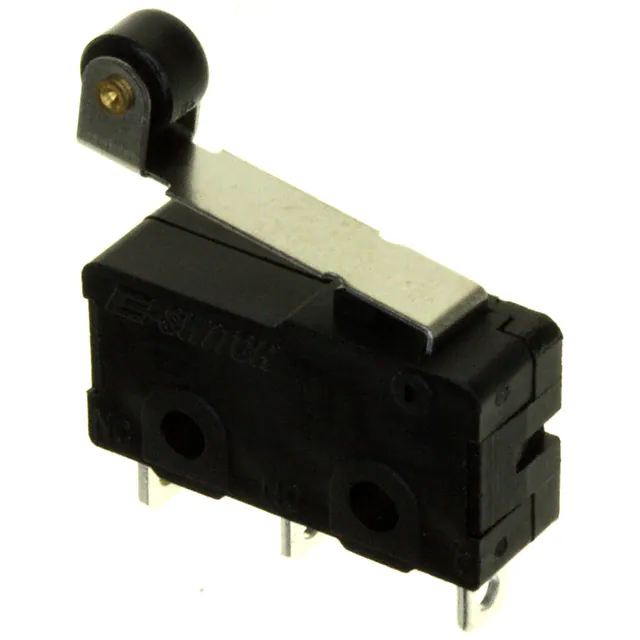

MS0850505F075S1ASWITCH SNAP ACTION SPDT 5A 125V |
557 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 75gf | 25gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

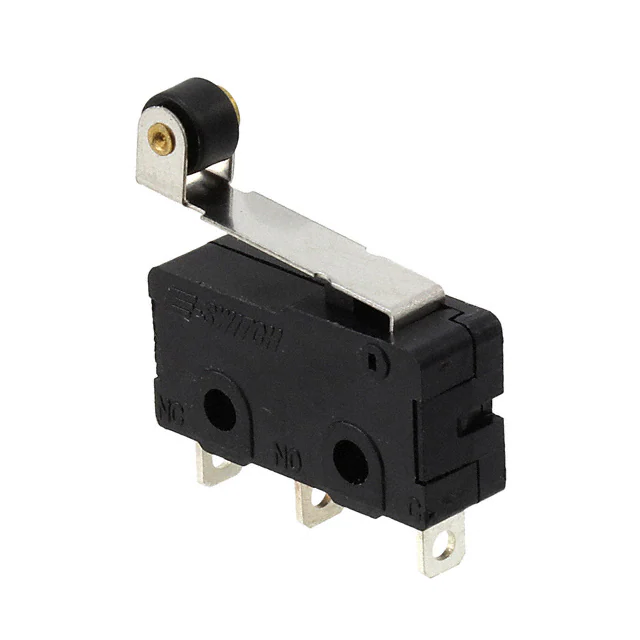

MS0850505F015S1ASWITCH SNAP ACTION SPDT 5A 125V |
179 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 15gf | 6.000gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

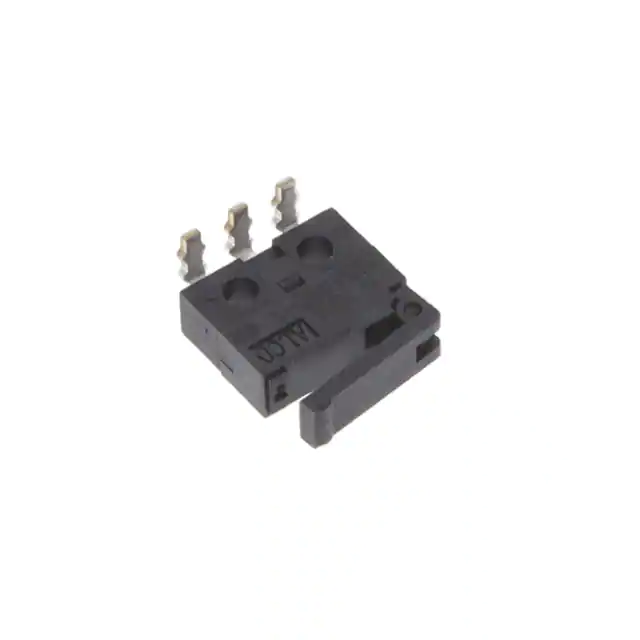

SAJ405XHL0N30SDTSLQSWITCH SNAP ACTION SPDT 0.5A 30V |
962 |
|
规格书 |
SAJ4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
D2F-FL-D3SWITCH SNAP ACTION SPDT 1A 125V |
12,782 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V15T16-EZ300SWITCH SNAP ACTION SPDT 16A 250V |
747 |
|
规格书 |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 300gf | 75gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|

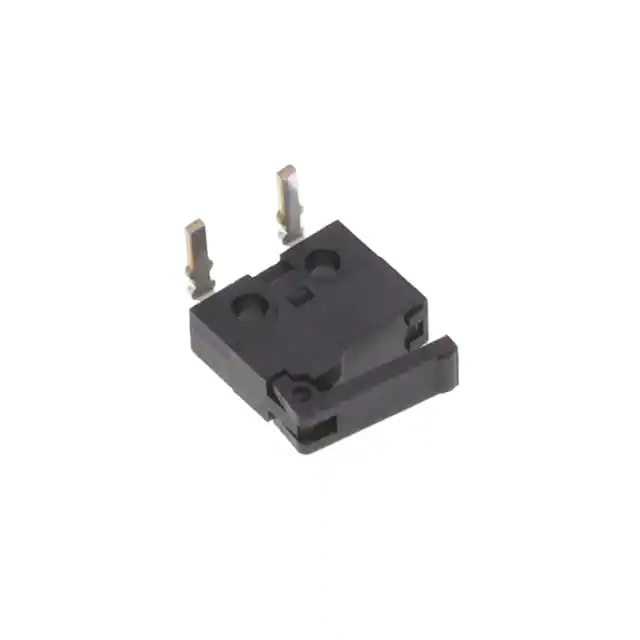

SAJ405XHL0N30SNCLRQSWITCH SNAP ACT SPST-NC 0.5A 30V |
929 |
|
规格书 |
SAJ4 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SM3CQF1301L03SWITCH LIMIT SPDT 5A 125V |
102 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 40gf | 20gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

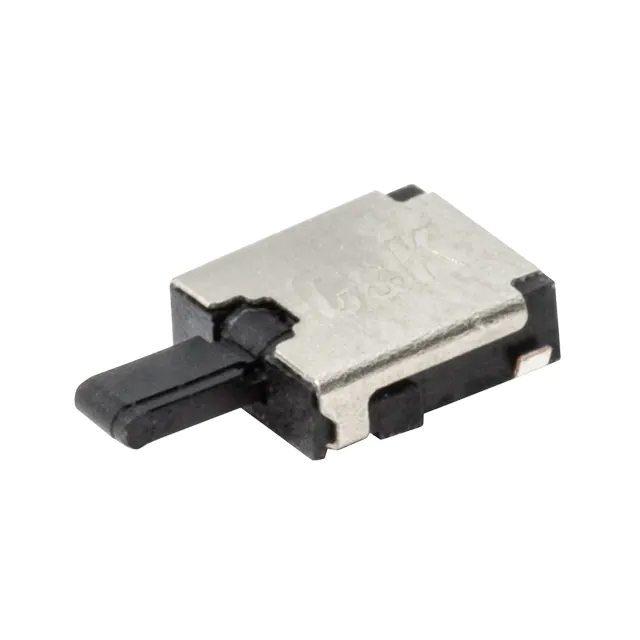

FDSD001RSWITCH DETECTOR SPST-NO 10MA 5V |
3,044 |
|
规格书 |
FDSD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 40gf | - | 0.063" (1.6mm) | 0.063" (1.6mm) | - | 0.057" (1.45mm) | -10°C ~ 60°C |
|

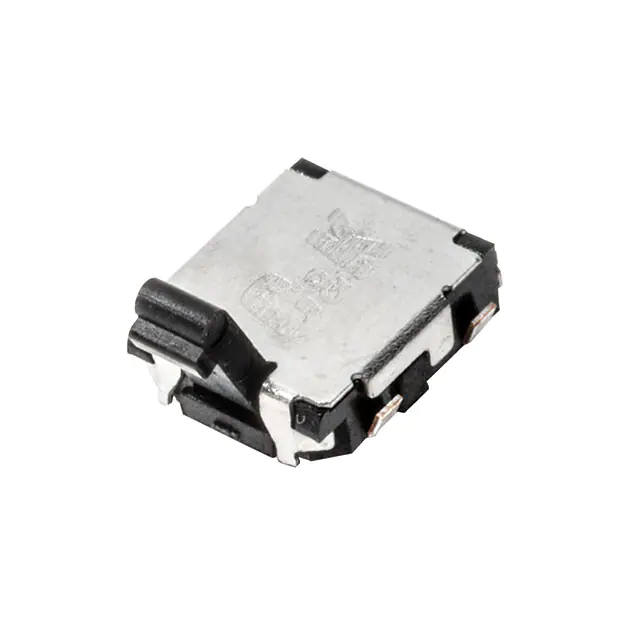

FDSE001RSWITCH DETECT SPST-NC 0.001A 5V |
1,946 |
|
规格书 |
FDSE | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 35gf | - | 0.059" (1.5mm) | 0.060" (1.5mm) | - | 0.064" (1.63mm) | -10°C ~ 60°C |
|

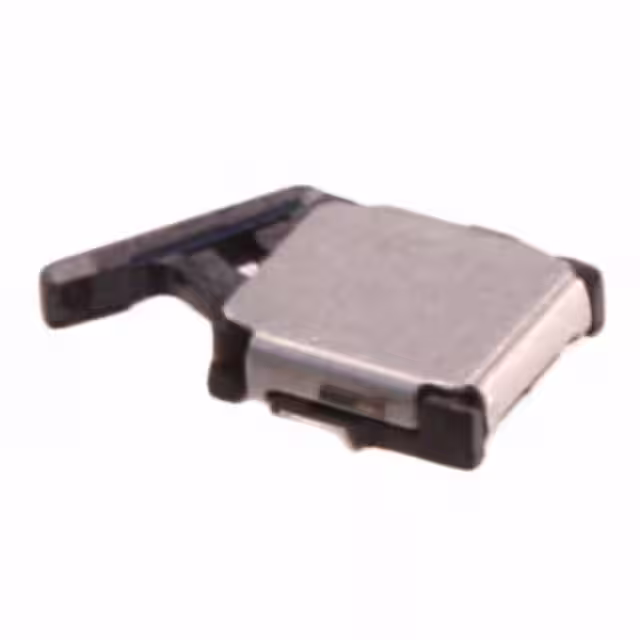

D3SH-B0LSWITCH DETECT SPST-NC 0.001A 5V |
216 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Left Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
