购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

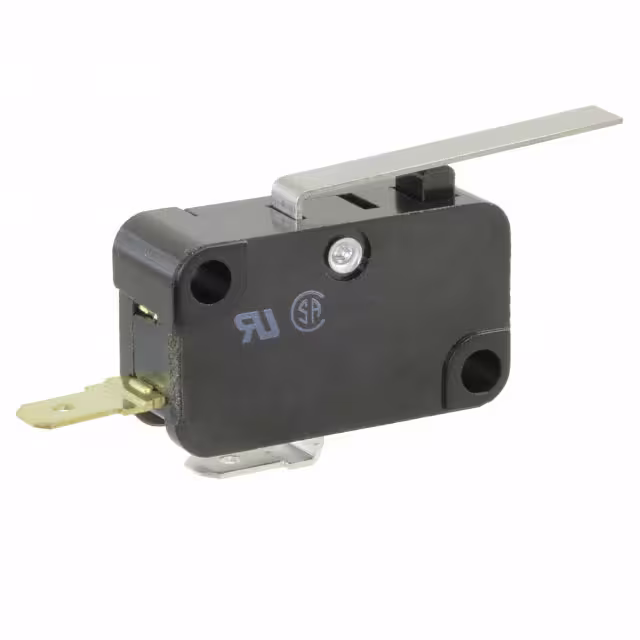

V-102-3C25SWITCH SNAP ACT SPST-NO 10A 250V |
1,275 |
|
规格书 |
V | Bulk | Active | SPST-NO | Off-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
AV4644SWITCH SNAP ACTION SPDT 0.5A 30V |
359 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|

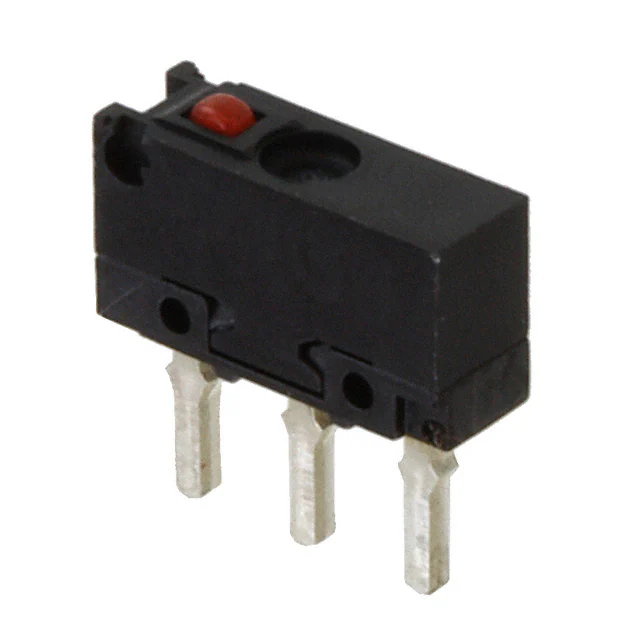

AV440461SWITCH SNAP ACTION SPDT 0.1A 30V |
1,499 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 100gf | - | 0.189" (4.8mm) | 0.012" (0.3mm) | 0.004" (0.1mm) | 0.004" (0.1mm) | -25°C ~ 80°C |
|
D3SH-B1RSWITCH DETECT SPST-NC 0.001A 5V |
996 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|

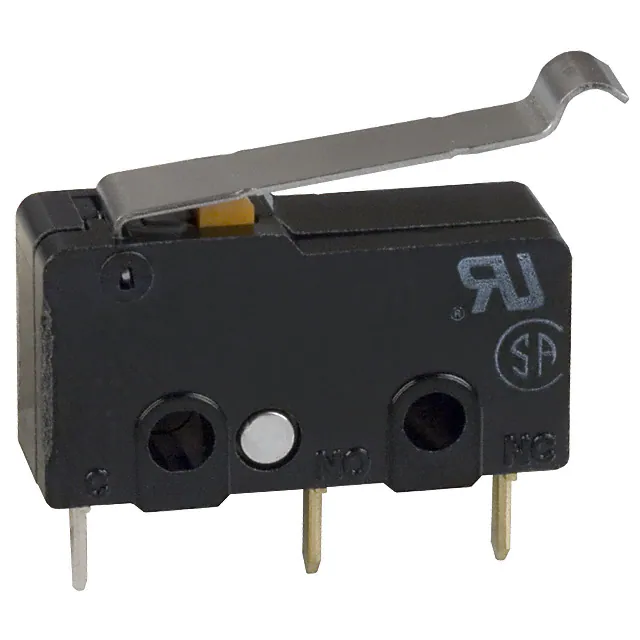

SS-5GL13DSWITCH SNAP ACTION SPDT 5A 125V |
534 |
|
规格书 |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

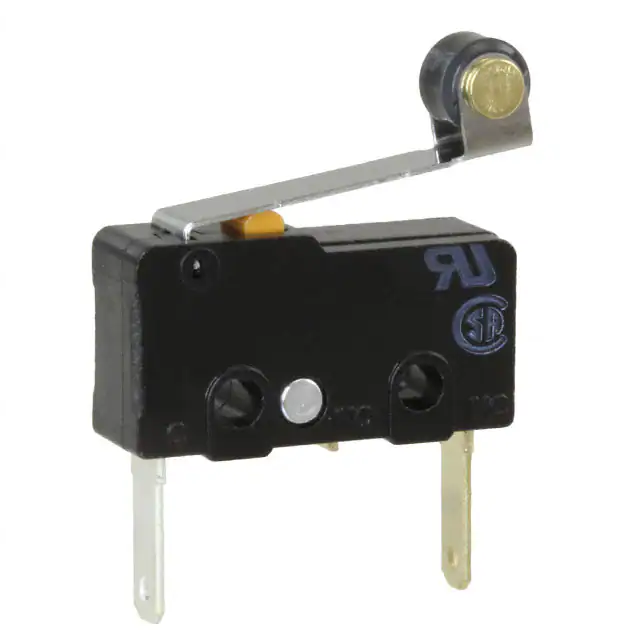

SS-5GL2-2TSWITCH SNAP ACT SPST-NC 5A 125V |
133 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ZX40E30C01SWITCH SNAP ACTION SPDT 3A 125V |
586 |
|
规格书 |
ZX | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 48gf | 8.000gf | 0.330" (8.4mm) | 0.134" (3.4mm) | 0.050" (1.3mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
D2GW-AL63DSEALED ULTRA SUBMINIATURE SWITCH |
889 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Leaf | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 153gf | 10gf | 0.346" (8.80mm) | - | 0.055" (1.4mm) | 0.105" (2.67mm) | -40°C ~ 85°C |
|
|
D2GW-AL63HSEALED ULTRA SUBMINIATURE SWITCH |
818 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Leaf | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | 10gf | 0.346" (8.80mm) | - | 0.055" (1.4mm) | 0.105" (2.67mm) | -40°C ~ 85°C |
|
V15H16-CZ100A02-KSWITCH SNAP ACTION SPDT 16A 250V |
790 |
|
规格书 |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|

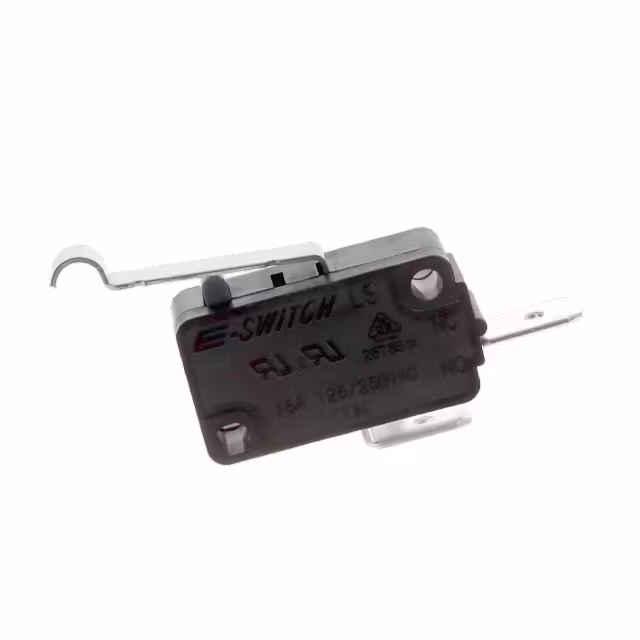

LS0851504F050C2CSWITCH SNAP ACT SPST-NO 15A 125V |
229 |
|
规格书 |
LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|

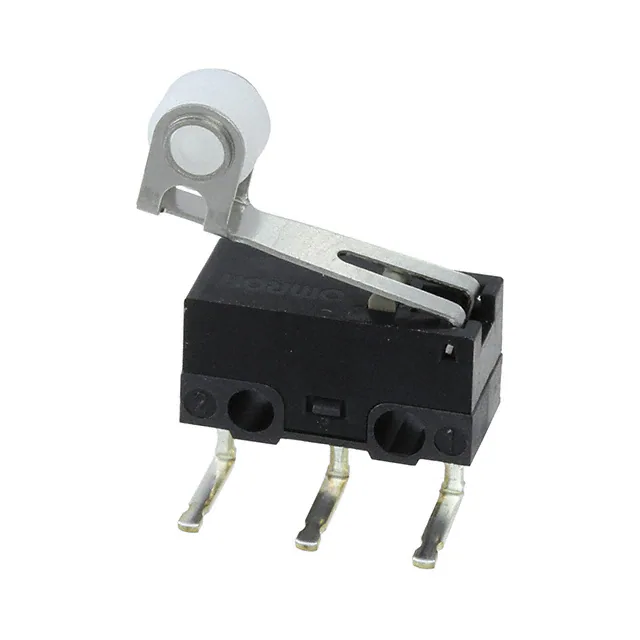

D2F-01FL2-ASWITCH SNAP ACTION SPDT 0.1A 30V |
7,893 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 40gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

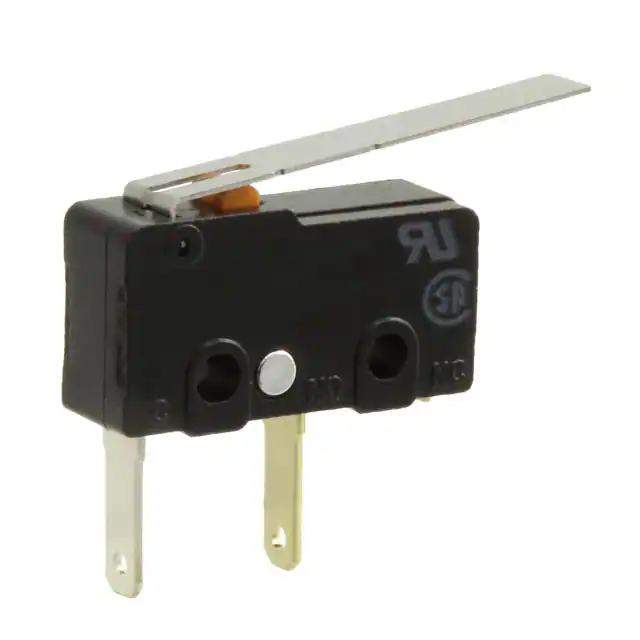

SS-5GL111-F-3TSWITCH SNAP ACT SPST-NO 5A 125V |
428 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 12gf | 2.039gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
.jpg)
|
D3V-16G-1C5SWITCH SNAP ACTION SPDT 16A 250V |
120 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
MBE5E1SWITCH SNAP ACT SPST-NC 10A 250V |
959 |
|
规格书 |
MB | Tray | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 95gf | - | 0.646" (16.4mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|

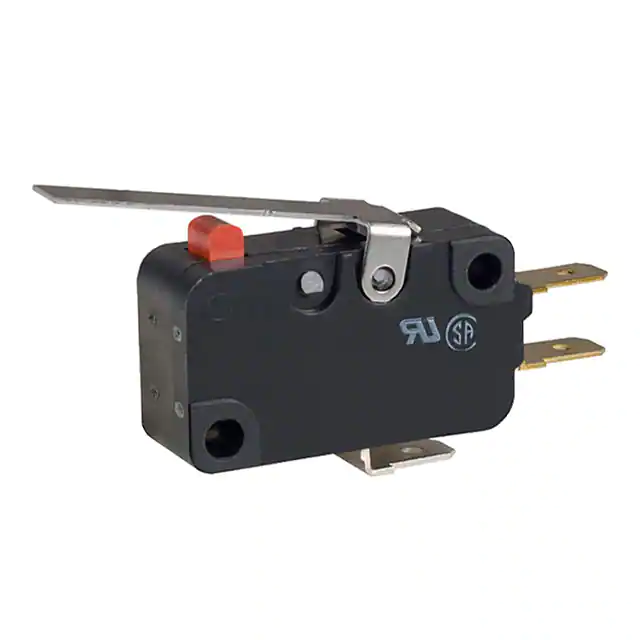

D3V-113M-3A5SWITCH SNAP ACT SPST-NO 11A 250V |
307 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
WS0850100F070SASWITCH SNAP ACTION SPDT 1A 24V |
872 |
|
规格书 |
WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 70gf | - | 0.413" (10.5mm) | - | - | - | -25°C ~ 85°C |
|
V7-4A17D8SWITCH SNAP ACTION SPDT 5A 125V |
212 |
|
规格书 |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D2F-01L3-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
6,116 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
SSG-5L2HSWITCH SNAP ACTION SPDT 5A 125V |
181 |
|
规格书 |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 61gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
