购物车LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-200-12-3YO/P +12V16A |
1,259 |
|
规格书 |
ELG-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 16A | 192 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
XBG-160-A-CO/P +34~56V3.3A |
1,513 |
|
规格书 |
XBG-160 (160W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 34 ~ 56V | 3.3A | 160 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 5.96" Dia x 2.36" H (151.5mm x 60.0mm) | CB, CCC, CE, cURus, ENEC |
|
HBG-100-36BLED DRVR CC AC/DC 21.6-36V 2.7A |
1,306 |
|
规格书 |
HBG-100 (100W) | Tray | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 21.6 ~ 36V | 2.7A | 97 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 85°C | 91% | Wire Leads | 5.12" Dia x 2.62" H (130.0mm x 66.5mm) | CB, CCC, CE, cURus, ENEC |
|
PLC-100-48LED DRIVER CC/CV AC/DC 48V 2A |
2,674 |
|
规格书 |
PLC-100 (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 264VAC | 48V | 2A | 96 W | 3.75 kV | - | OTP, OVP, SCP | - | -30°C ~ 50°C | 88.5% | Wire Leads | 7.89" L x 2.74" W x 1.38" H (200.5mm x 69.5mm x 35.0mm) | CB, CCC, CE, PSE, TUV, UR |
|
|
PWM-60-24KN60W PWM OUTPUT KNX LED DRIVER O/ |
1,433 |
|
规格书 |
PWM-60-KN (60W) | Bulk | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 2.5A | 60 W | 3.75 kV | PWM | OCP, OTP, OVP, SCP | - | -40°C ~ 85°C | 89% | Wire Leads | 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm) | CB, CCC, CE, EAC, ENEC |
|
PLN-100-27LED DRVR CC/CV AC/DC 20.25-27V |
1,216 |
|
规格书 |
PLN-100 (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 295VAC | 20.25 ~ 27V | 3.55A | 96 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP64 | -30°C ~ 50°C | 88% | Wire Leads | 7.87" L x 2.78" W x 1.38" H (200.0mm x 70.5mm x 35.0mm) | CB, CE, cURus, PSE, TUV |
|
|
XLG-240-L-DA2O/P +178~342V 0.7~1.05A |
1,094 |
|
规格书 |
XLG-240-DA2 (240W) | Box | Active | - | Constant Power | AC DC Converter | 1 | 100VAC | 305VAC | 178 ~ 342V | 700mA | 240 W | 3.75 kV | PWM | - | IP67 | -40°C ~ 90°C | 94% | Wire Leads | 8.62" L x 2.48" W x 1.40" H (219.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
|
|
HLG-80H-48ABLED DRVR CC/CV AC/DC |
4,871 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 48V | 1.7A | 82 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, EAC, KC, PSE, RCM, TUV, UL |
|
HLG-80H-24ABO/P +24V3.4A |
3,300 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 3.4A | 82 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 90.5% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, EAC, KC, PSE, RCM, TUV, UL |
|

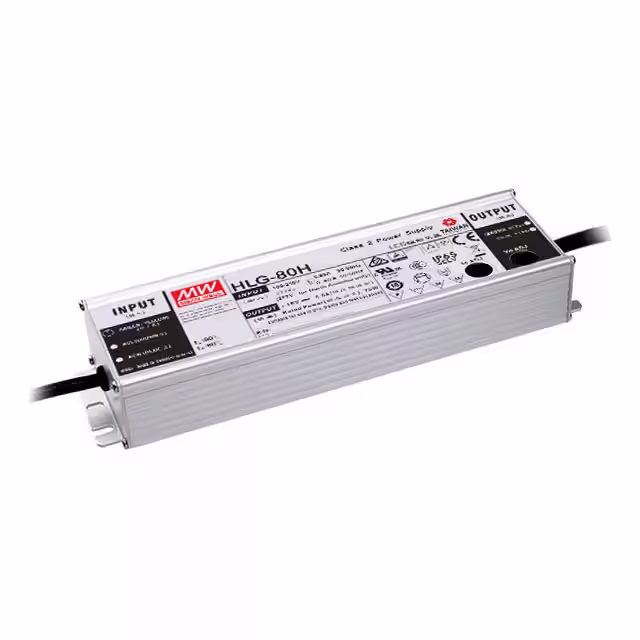

HLG-80H-42ABO/P +42V1.95A |
3,852 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 42V | 1.95A | 82 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, EAC, KC, PSE, RCM, TUV, UL |
|
ELG-200-C700ALED DRVR CC AC/DC 142-286V 700MA |
2,560 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 142 ~ 286V | 700mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-200-C2100LED DRVR CC AC/DC 48-96V 2.1A |
1,675 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 48 ~ 96V | 2.1A | 202 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 92% | Wire Leads | 7.87" L x 2.80" W x 1.48" H (200.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-200-C1050LED DRVR CC AC/DC 95-190V 1.05A |
1,525 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 95 ~ 190V | 1.05A | 200 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 7.87" L x 2.80" W x 1.48" H (200.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
NPF-120-15LED DRIVER CC/CV AC/DC 9-15V 8A |
3,876 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 15V | 8A | 120 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 89% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
NPF-120-30LED DRVR CC/CV AC/DC 18-30V 4A |
2,698 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 30V | 4A | 120 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 89.5% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
NPF-120-36LED DVR CC/CV ACDC 21.6-36V 3.4A |
2,707 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 21.6 ~ 36V | 3.4A | 122 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
NPF-120-54LED DVR CC/CV ACDC 32.4-54V 2.3A |
4,885 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 32.4 ~ 54V | 2.3A | 124 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90.5% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
NPF-120-42LED DVR CC/CV ACDC 25.2-42V 2.9A |
2,403 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 25.2 ~ 42V | 2.9A | 122 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-200-12B-3YLED AC/DC DRIVER 200W |
2,576 |
|
规格书 |
ELG-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 16A | 192 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
ELG-200-12BLED DRVR CC/CV AC/DC 12V 16A |
4,361 |
|
规格书 |
ELG-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 16A | 192 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC, RCM |
