购物车LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
USCI-055180GBLED DRIVER - 55W - CC |
4,613 |
|
规格书 |
USCI LITE | Box | Active | - | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 18 ~ 52.4V | 1.8A | 55 W | - | Analog | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 90% | Wire Leads | 6.59" L x 2.36" W x 1.50" H (167.4mm x 59.9mm x 38.1mm) | cULus |
|
HLN-80H-54ALED DRVR CC/CV AC/DC 54V 1.5A |
2,322 |
|
规格书 |
HLN-80H (80W) | Box | Not For New Designs | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 54V | 1.5A | 81 W | 3.75 kV | PWM | OCP, OTP, OVP, SCP | IP64 | -40°C ~ 50°C | 91% | Wire Leads | 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm) | CB, CE, cURus, PSE, TUV, UR |
|
|
XLG-240-M-DA2O/P +90~171V 1.4~2.1A |
4,935 |
|
规格书 |
XLG-240-DA2 (240W) | Box | Active | - | Constant Power | AC DC Converter | 1 | 100VAC | 305VAC | 90 ~ 171V | 1.4A | 240 W | 3.75 kV | PWM | - | IP67 | -40°C ~ 90°C | 93.5% | Wire Leads | 8.62" L x 2.48" W x 1.40" H (219.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
|
HBG-160P-48BLED DVR CC/CV ACDC 28.8-48V 3.3A |
2,342 |
|
规格书 |
HBG-160P (160W) | Tray | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 3.3A | 158 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | - | - | 93% | Wire Leads | 4.91" Dia x 1.34" H (124.6mm x 34.0mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-120H-54LED DRVR CC/CV AC/DC 27-54V 2.3A |
3,958 |
|
规格书 |
HLG-120H (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 27 ~ 54V | 2.3A | 124 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 93.5% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV |
|
|
PWM-90-48DA2PWR SUPP, BATT & COND |
2,672 |
|
规格书 |
PWM-90 (90W) | Bulk | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 48V | 1.88A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90.5% | Wire Leads | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, EAC, ENEC |
|
|
AB-D20150-V48-Q100-240VAC INPUT, 48VDC OUTPUT, |
3,080 |
|
规格书 |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 100VAC | 240VAC | 48V | 3.125A | 150 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 92% | Terminal Block | 12.70" L x 1.19" W x 0.85" H (322.6mm x 30.1mm x 21.5mm) | CE, cULus, cURus, TUV, UKCA |
|
ELG-240-C2100LED DRVR CC AC/DC 57-114V 2.1A |
1,939 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 57 ~ 114V | 2.1A | 242 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
ELG-240-42LED DRVR CC/CV AC/DC 42V 5.71A |
3,674 |
|
规格书 |
ELG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 42V | 5.71A | 240 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.87" L x 2.80" W x 1.48" H (200.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-240-C1050LED DRVR CC AC/DC 114-228V 1.05A |
4,443 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 114 ~ 228V | 1.05A | 239 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-150H-42LED DRVR CC/CV AC/DC 21-42V 3.6A |
3,932 |
|
规格书 |
HLG-150H (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 21 ~ 42V | 3.6A | 151 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 94% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|

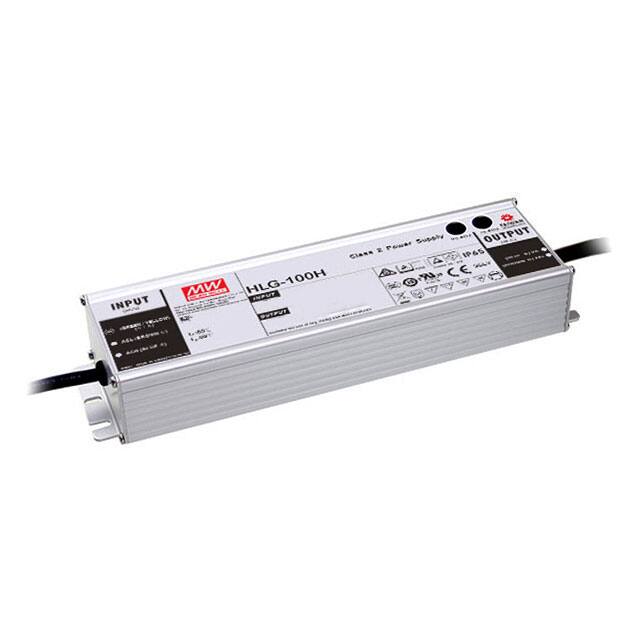

HLG-100H-42ABO/P +42V2.28A |
3,551 |
|
规格书 |
HLG-100H (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 42V | 2.28A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
|

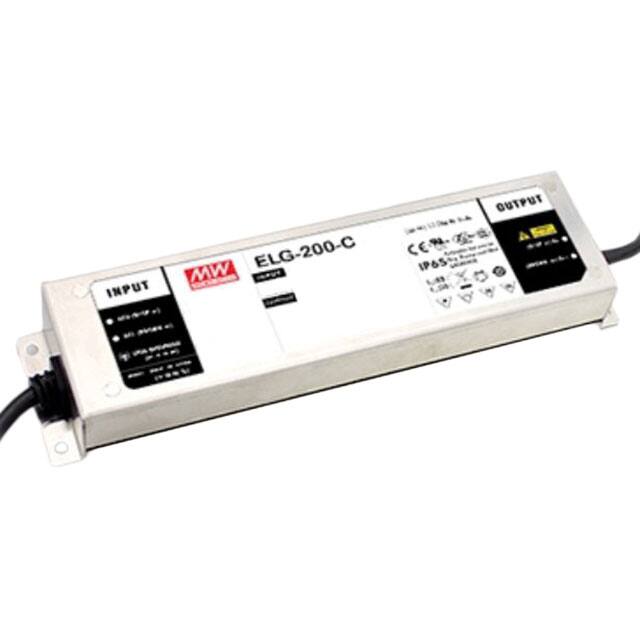

ELG-200-C1750BLED POWER SUPPLIES 199.5W57-114V |
4,862 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 57 ~ 114V | 1.75A | 200 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 92% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
HLG-120H-C500BLED DRVR CC AC/DC 150-300V 500MA |
4,488 |
|
规格书 |
HLG-120H-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 150 ~ 300V | 500mA | 150 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 94% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, ENEC, PSE, RCM |
|
|
ELG-240-C700LED DRVR CC AC/DC 172-343V 700MA |
1,874 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 172 ~ 343V | 700mA | 240 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-240-C1750ALED DRVR CC AC/DC 69-137V 1.75A |
1,732 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 69 ~ 137V | 1.75A | 240 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-240-C1750LED DRVR CC AC/DC 69-137V 1.75A |
1,763 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 69 ~ 137V | 1.75A | 240 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLN-60H-20ALED DRVR CC/CV AC/DC 20V 3A |
4,379 |
|
规格书 |
HLN-60H (60W) | Box | Not For New Designs | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 20V | 3A | 60 W | 3.75 kV | PWM | OCP, OTP, OVP, SCP | IP64 | -40°C ~ 50°C | 88.5% | Wire Leads | 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm) | CB, CE, PSE, TUV |
|
|
USCI-100140GBLED DRIVER - 100W - CC |
3,458 |
|
规格书 |
USCI LITE | Box | Active | - | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 50 ~ 143V | 1.4A | 100 W | - | Analog | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 92.5% | Wire Leads | 6.59" L x 2.36" W x 1.50" H (167.4mm x 59.9mm x 38.1mm) | cULus |
|
|
XLG-240-48-ABVI/P 110-305VAC/2.7A(MAX) O/P +48 |
2,937 |
|
规格书 |
XLG-240 (240W) | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 110VAC | 305VAC | 48V | 5A | 240 W | 3.75 kV | PWM | OCP, OTP, OVP, SCP | IP67 | -20°C ~ 90°C | 91% | Wire Leads | 8.62" L x 2.48" W x 1.40" H (219.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
