购物车LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-D20150-V24-Q100-240VAC INPUT,24VDC OUTPUT, 1 |
2,571 |
|
规格书 |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 100VAC | 240VAC | 24V | 6.25A | 150 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 92% | Terminal Block | 12.70" L x 1.19" W x 0.85" H (322.6mm x 30.1mm x 21.5mm) | CE, cULus, cURus, TUV, UKCA |
|
ELG-240-42BLED DRVR CC/CV AC/DC 42V 5.71A |
1,011 |
|
规格书 |
ELG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 42V | 5.71A | 240 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92.5% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-240-36BLED DRVR CC/CV AC/DC 36V 6.66A |
1,251 |
|
规格书 |
ELG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 36V | 6.66A | 240 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.87" L x 2.80" W x 1.48" H (200.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
AB-D65200-V12-Q90-305VAC INPUT, 12VDC OUTPUT, 2 |
1,112 |
|
规格书 |
AB-D6x200-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12V | 16A | 192 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 60°C | 93% | Wire Leads | 8.69" L x 2.46" W x 1.50" H (220.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
|
AB-D65200-V24-Q90-305VAC INPUT, 24VDC OUTPUT, 2 |
3,324 |
|
规格书 |
AB-D6x200-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 8.3A | 200 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 60°C | 94% | Wire Leads | 8.69" L x 2.46" W x 1.50" H (220.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
|
HBG-100-48DAO/P 28.8~48V2A |
1,714 |
|
规格书 |
HBG-100 (100W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 2A | 96 W | 3.75 kV | - | OCP, OTP, OVP | IP65 | -40°C ~ 85°C | 91% | Wire Leads | 5.12" Dia x 2.62" H (130.0mm x 66.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-150-48D2LED AC/DC DRIVER 150W |
4,108 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 3.13A | 150 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
ELG-240-C1750BLED DRVR CC AC/DC 69-137V 1.75A |
2,858 |
|
规格书 |
ELG-240-C (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 69 ~ 137V | 1.75A | 240 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ELG-240-C2100B-3YLED CC AC/DC DRIVER 240W |
2,259 |
|
规格书 |
ELG-240-C | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 57 ~ 115V | 2.1A | 242 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
|
ELG-240-48B-3YO/P +48V5A |
3,845 |
|
规格书 |
ELG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 5A | 240 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-185H-54LED DVR CC/CV AC/DC 27-54V 3.45A |
2,217 |
|
规格书 |
HLG-185H (185W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 54V | 3.45A | 186 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 94% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
|
ELG-200-C1400D2LED DRIVERS POWER SUPPLIES 198.8 |
4,171 |
|
规格书 |
ELG-200-C (200W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 71 ~ 142V | 1.4A | 199 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 92% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|

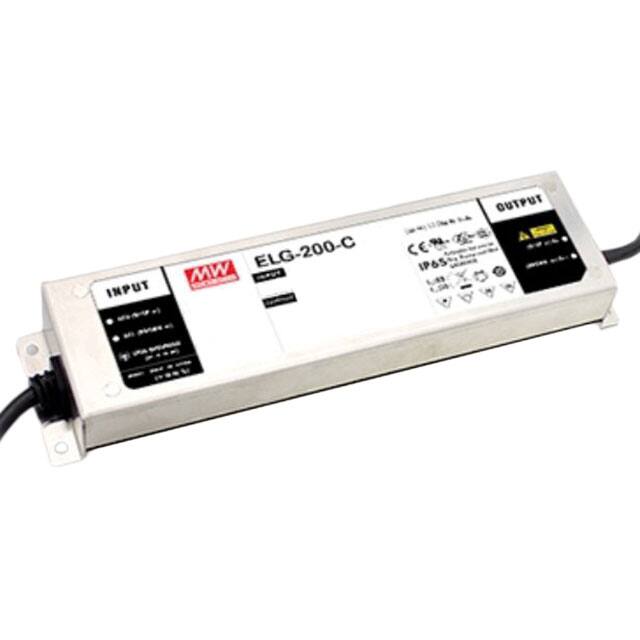

ELG-200-C1750ALED POWER SUPPLIES 199.5W57-114V |
3,216 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 57 ~ 114V | 1.75A | 200 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 85°C | 92% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
AB-D67200-V12-Q90-305VAC INPUT, 12VDC OUTPUT, 2 |
4,281 |
|
规格书 |
AB-D6x200-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12V | 16A | 192 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 60°C | 93% | Wire Leads | 8.69" L x 2.46" W x 1.50" H (220.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
|
AB-D67200-V24-Q90-305VAC INPUT, 24VDC OUTPUT, 2 |
2,678 |
|
规格书 |
AB-D6x200-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 8.3A | 200 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 60°C | 94% | Wire Leads | 8.69" L x 2.46" W x 1.50" H (220.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
|
USC4-100140GBLED DRIVER -100W - CC |
3,832 |
|
规格书 |
USC4 LITE | Box | Active | - | Constant Current | AC DC Converter | 1 | 249VAC | 528VAC | 50 ~ 143V | 1.4A | 100 W | - | Analog | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 92.5% | Wire Leads | 6.59" L x 2.36" W x 1.50" H (167.4mm x 59.9mm x 38.1mm) | cULus |
|
|
HLG-185H-12LED DRVR CC/CV AC/DC 6-12V 13A |
2,657 |
|
规格书 |
HLG-185H (185W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12V | 13A | 156 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 91.5% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
|
HLG-185H-36LED DRVR CC/CV AC/DC 18-36V 5.2A |
4,930 |
|
规格书 |
HLG-185H (185W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 36V | 5.2A | 187 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93.5% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
HVG-65-30ALED DVR CC/CV AC/DC 27-33V 2.17A |
3,453 |
|
规格书 |
HVG-65 (65W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 180VAC | 528VAC | 27 ~ 33V | 2.17A | 65 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 89% | Wire Leads | 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm) | cURus |
|
HVGC-65-700ALED DRIVER CC AC/DC 9-93V 700MA |
1,423 |
|
规格书 |
HVGC-65 (65W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 528VAC | 9 ~ 93V | 700mA | 65 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 90.5% | Wire Leads | 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm) | CB, CE, cURus, ENEC |
