| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-75-C1050D2LED POWER SUPPLIES 1050MA 35-71V |
4,916 |
|
规格书 |
ELG-75-C (75W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 35 ~ 71V | 1.05A | 75 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-150-C1050LED DRVR CC AC/DC 72-143V 1.05A |
3,553 |
|
规格书 |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 72 ~ 143V | 1.05A | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC |
|
XAC34-1050Z-UNV-I34W, 1050MA, UNV, 0-10V DIM, I-L |
3,793 |
|
规格书 |
- | Box | Active | - | Constant Current | AC DC Converter | 1 | 120VAC | 277VAC | 17 ~ 32V | 1.05A | 34 W | - | Analog | OTP, OVP, SCP | - | -30°C ~ 85°C | 80% | Wire Leads | 4.00" L x 2.00" W x 1.52" H (101.6mm x 50.8mm x 38.5mm) | cURus, FCC |
|
|
AB-D20100-V12-Q100-240VAC INPUT, 12VDC OUTPUT, |
2,942 |
|
规格书 |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 100VAC | 240VAC | 12V | 8.33A | 100 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 89% | Terminal Block | 12.62" L x 1.18" W x 0.72" H (320.6mm x 30.0mm x 18.2mm) | CE, cULus, cURus, TUV, UKCA |
|
HLG-80H-15BLED DRIVER CC/CV AC/DC 9-15V 5A |
3,298 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 15V | 5A | 75 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 89% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL |
|
LPF-90D-48LED DRVR CC AC/DC 28.8-48V 1.88A |
2,601 |
|
规格书 |
LPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 1.88A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 70°C | 90.5% | Wire Leads | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) | CB, CCC, CE, PSE, TUV, UR |
|
|
LPF-90D-20LED DRIVER CC AC/DC 12-20V 4.5A |
4,387 |
|
规格书 |
LPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 20V | 4.5A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 70°C | 89.5% | Wire Leads | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|
|
LPF-90D-15LED DRIVER CC AC/DC 9-15V 5A |
2,920 |
|
规格书 |
LPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 15V | 5A | 75 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 70°C | 89% | Wire Leads | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|
|
LPF-90D-42LED DRVR CC AC/DC 25.2-42V 2.15A |
2,233 |
|
规格书 |
LPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 25.2 ~ 42V | 2.15A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 70°C | 90.5% | Wire Leads | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|
|
AB-D65100-V12-Q90-305VAC INPUT, 12VDC OUTPUT, 1 |
2,507 |
|
规格书 |
AB-D6x80-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12V | 8.33A | 100 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 60°C | 91.5% | Wire Leads | 6.80" L x 2.46" W x 1.50" H (172.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
|
AB-D65100-V24-Q90-305VAC INPUT, 24VDC OUTPUT, 1 |
3,733 |
|
规格书 |
AB-D6x80-Vxx-Q | Box | Active | - | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 4.17A | 100 W | 3.2 kV | Non-Dimmable | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 60°C | 92.5% | Wire Leads | 6.80" L x 2.46" W x 1.50" H (172.6mm x 62.5mm x 38.0mm) | CE, cULus, cURus, TUV, UKCA |
|
XBG-160-AO/P +34~56V3.3A |
1,475 |
|
规格书 |
XBG-160 (160W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 34 ~ 56V | 3.3A | 160 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 5.96" Dia x 2.36" H (151.5mm x 60.0mm) | CB, CCC, CE, cURus, ENEC |
|
|
XKV60-1248Z-UNV-I60W V-LOC DRIVER W/J-BOX 0-10V, |
2,360 |
|
规格书 |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 108VAC | 304.7VAC | 12 ~ 48V | 5A | 60 W | - | Analog | OTP, SCP | - | -30°C ~ 70°C | 90% | Wire Leads | 9.76" L x 2.68" W x 1.46" H (247.9mm x 68.1mm x 37.1mm) | cULus, FCC |
|
|
HLG-80H-12BLED DRVR CC/CV AC/DC 7.2-12V 5A |
3,123 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 7.2 ~ 12V | 5A | 60 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 88% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL |
|
HBG-160P-48ALED DVR CC/CV ACDC 28.8-48V 3.3A |
2,956 |
|
规格书 |
HBG-160P (160W) | Tray | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 3.3A | 158 W | 3.75 kV | - | OTP, OVP, SCP | - | - | 93% | Wire Leads | 4.91" Dia x 1.34" H (124.6mm x 34.0mm) | CB, CCC, CE, cURus, ENEC |
|

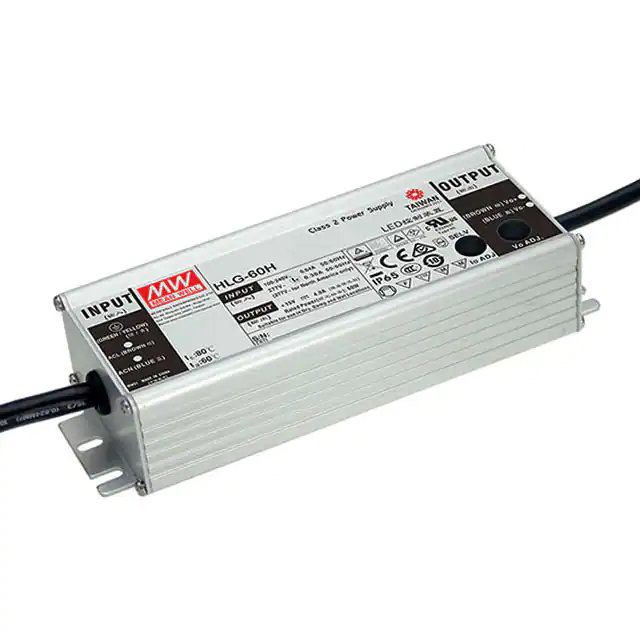

HLG-60H-42ABO/P +42V1.45A |
1,905 |
|
规格书 |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 42V | 1.45A | 61 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 90% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
|
HLG-60H-36ABO/P +36V1.7A |
3,531 |
|
规格书 |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 36V | 1.7A | 61 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 90% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
|

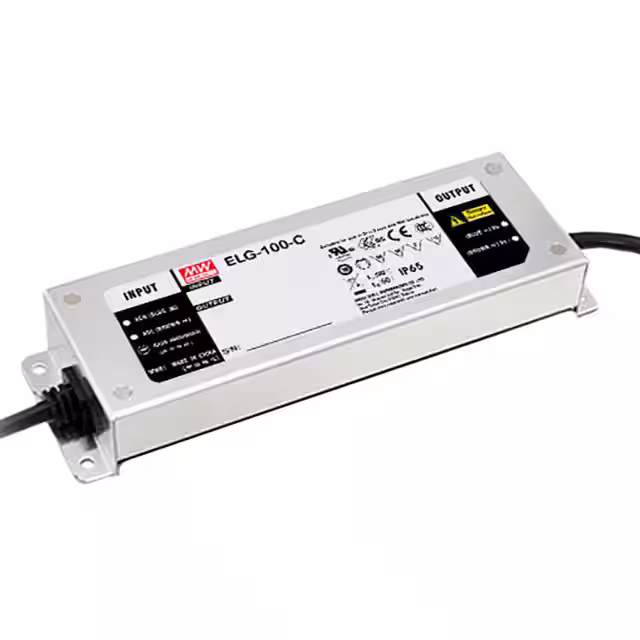

ELG-100-C700DALED POWER SUPPLIES 700MA 71-143V |
1,388 |
|
规格书 |
ELG-100-C (100W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 71 ~ 143V | 700mA | 100 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C (With Derating) | 90% | Wire Leads | 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
HLG-60H-24ABLED DRVR CC/CV AC/DC |
4,014 |
|
规格书 |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 2.5A | 60 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 89.5% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
|
|
AB-D20150-V12-Q100-240VAC INPUT, 12VDC OUTPUT, |
4,925 |
|
规格书 |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 100VAC | 240VAC | 12V | 11A | 150 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 92% | Terminal Block | 12.62" L x 1.18" W x 0.85" H (320.6mm x 30.0mm x 21.5mm) | CE, cULus, cURus, TUV, UKCA |
