购物车高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

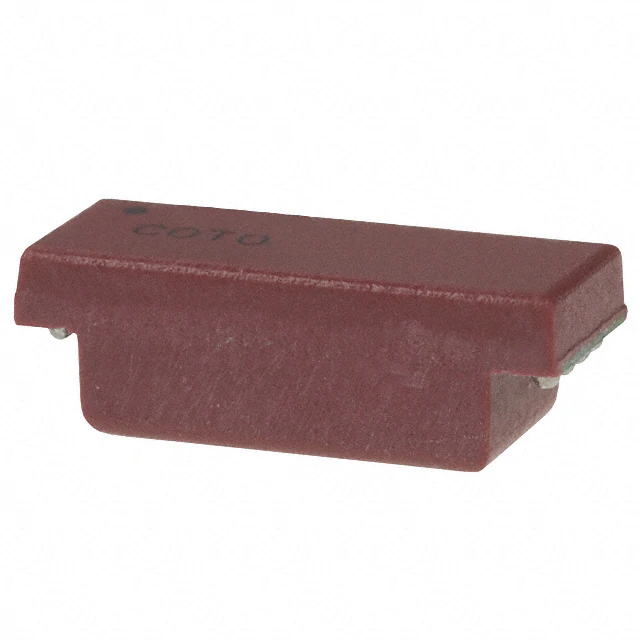

B10-03BRELAY RF SPST-NO 250MA 3.3V Coto Technology |
4,634 |
|
规格书 |
B10 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|
2920-05-121RELAY RF SPST-NO 1A 5V Coto Technology |
1,834 |
|
规格书 |
2900 | Tube | Not For New Designs | Non Latching | 66.7 mA | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 3.8 VDC | 0.4 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2920-12-121RELAY RF SPST-NO 1A 12V Coto Technology |
1,454 |
|
规格书 |
2900 | Tube | Not For New Designs | Non Latching | 48 mA | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 9 VDC | 1 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|

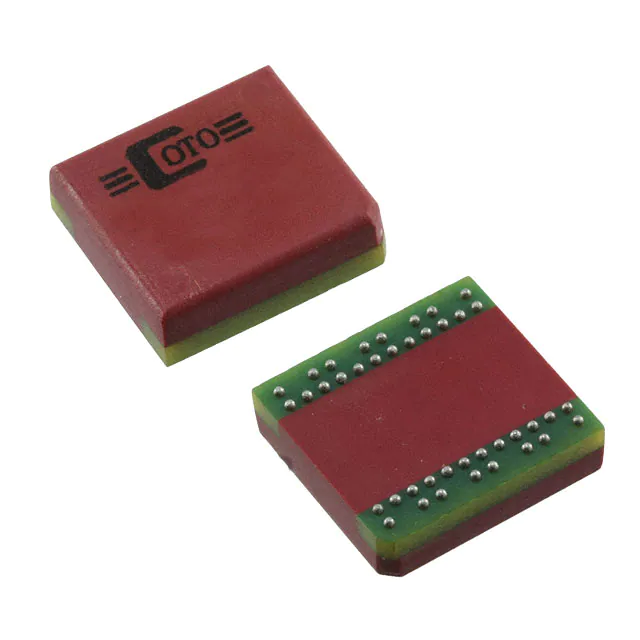

B41-0002RELAY RF SPST-NO X 4 250MA 3.3V Coto Technology |
1,108 |
|
规格书 |
B41 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

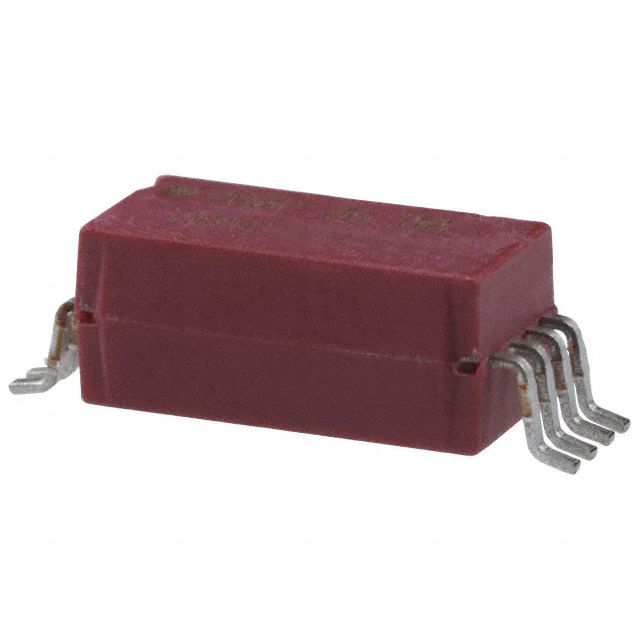

9802-05-00RELAY RF SPST-NO 250MA 5V Coto Technology |
4,198 |
|
规格书 |
9800 | Bulk | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9802-05-20RELAY RF SPST-NO 250MA 5V Coto Technology |
4,136 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-12-00RELAY RF SPST-NO 500MA 12V Coto Technology |
3,086 |
|
规格书 |
9290 | Bulk | Active | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

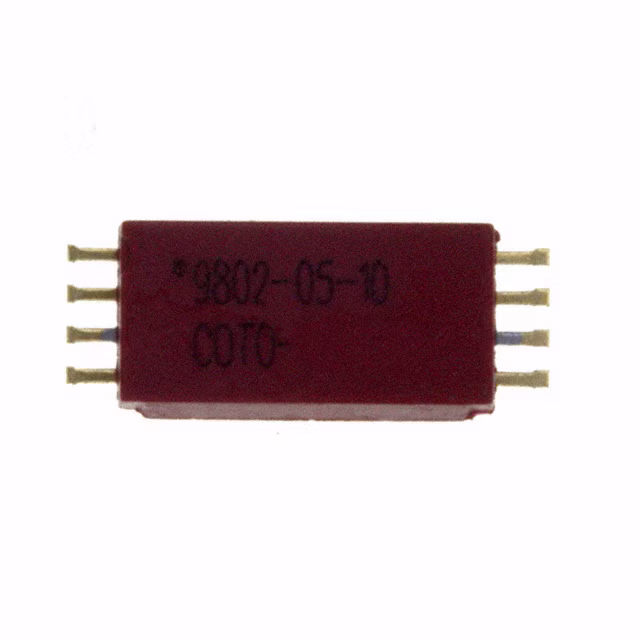

9802-05-10RELAY RF SPST-NO 250MA 5V Coto Technology |
2,021 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
B10-05BRELAY RF SPST-NO 250MA 5V Coto Technology |
3,213 |
|
规格书 |
B10 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

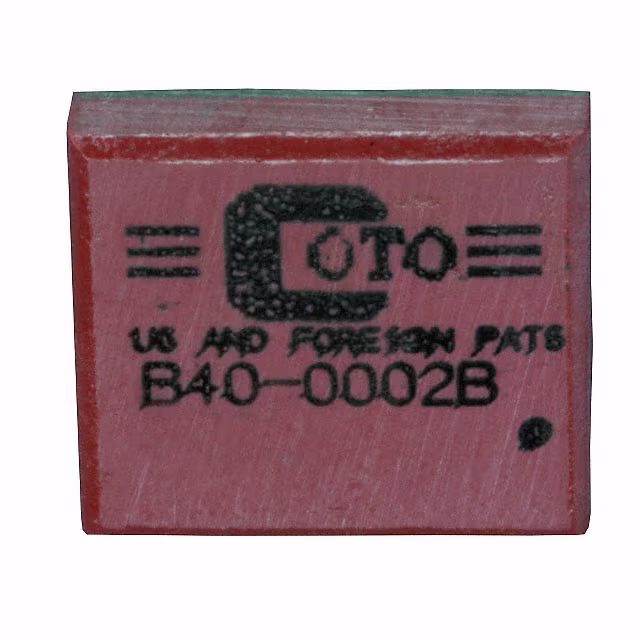

B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V Coto Technology |
1,731 |
|
规格书 |
B40 | Tube | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
