购物车高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9853-05-20TRRELAY RF SPDT 100MA 5V Coto Technology |
965 |
|
规格书 |
9853 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 50VAC, 50VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9202-05-20TRRELAY RF SPST-NO 500MA 5V Coto Technology |
1,415 |
|
规格书 |
9200 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-05-00RELAY RF SPST-NO 500MA 5V Coto Technology |
1,102 |
|
规格书 |
9290 | Tube | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9853-05-20RELAY RF SPDT 100MA 5V Coto Technology |
1,539 |
|
规格书 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

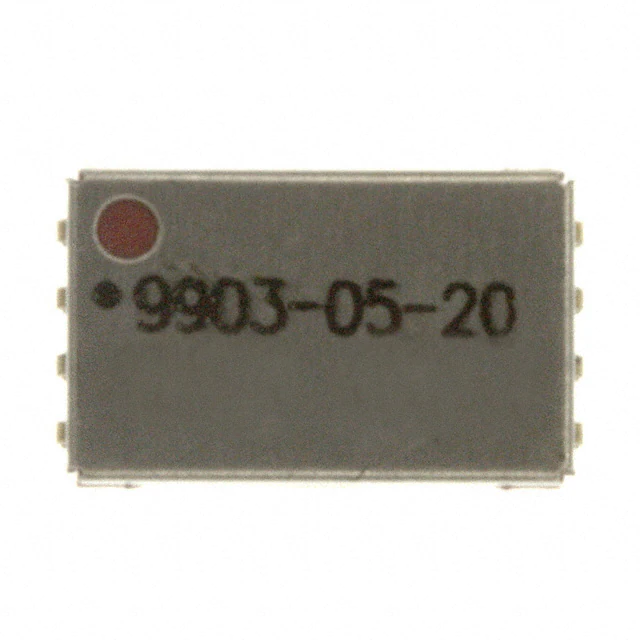

9903-05-20RELAY RF SPST-NO 250MA 5V Coto Technology |
3,910 |
|
规格书 |
9900 | Tube | Not For New Designs | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9002-12-01RELAY RF SPST-NO 500MA 12V Coto Technology |
4,428 |
|
规格书 |
9000 | Tube | Active | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Diode | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9903-05-20TRRELAY RF SPST-NO 250MA 5V Coto Technology |
3,644 |
|
规格书 |
9900 | Tape & Reel (TR) | Not For New Designs | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9270-24-00TRRELAY RF SPST-NO 500MA 24V Coto Technology |
4,906 |
|
规格书 |
9270 | Tape & Reel (TR) | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 VDC | 2 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
|
9002-12-11RELAY RF SPST-NO 500MA 12V Coto Technology |
4,233 |
|
规格书 |
9000 | Tube | Active | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Diode, Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
9402-12-20TRRELAY RF SPST-NO 500MA 12V Coto Technology |
3,457 |
|
规格书 |
9400 | Tape & Reel (TR) | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
