购物车高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9290-05-20RELAY RF SPST-NO 500MA 5V Coto Technology |
2,916 |
|
规格书 |
9290 | Bulk | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9202-12-20RELAY RF SPST-NO 500MA 12V Coto Technology |
4,648 |
|
规格书 |
9200 | Tube | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9202-12-20TRRELAY RF SPST-NO 500MA 12V Coto Technology |
1,491 |
|
规格书 |
9200 | Tape & Reel (TR) | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9270-05-20RELAY RF SPST-NO 500MA 5V Coto Technology |
1,088 |
|
规格书 |
9270 | Bulk | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|
9270-12-00RELAY RF SPST-NO 500MA 12V Coto Technology |
2,905 |
|
规格书 |
9270 | Bulk | Active | Non Latching | 30 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.7 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
|
9270-12-20RELAY RF SPST-NO 500MA 12V Coto Technology |
2,261 |
|
规格书 |
9270 | Bulk | Active | Non Latching | 30 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.7 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|
9402-12-20RELAY RF SPST-NO 500MA 12V Coto Technology |
1,589 |
|
规格书 |
9400 | Tube | Active | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|

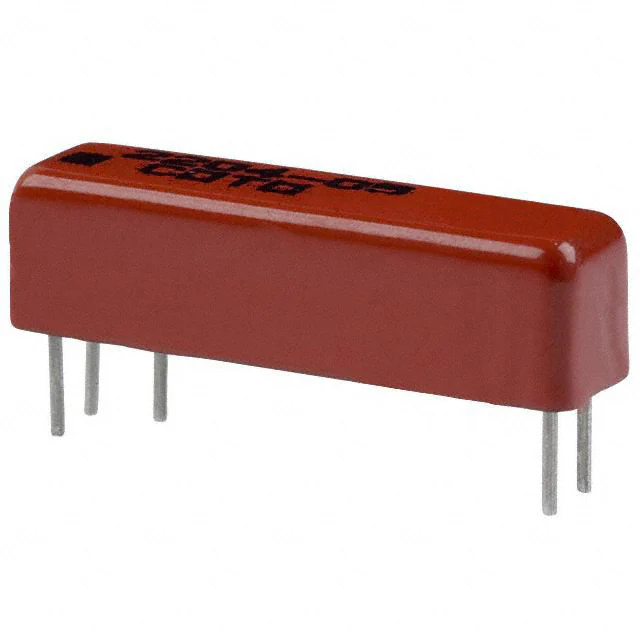

2204-05-421RELAY RF SPST-NO 500MA 5V Coto Technology |
3,010 |
|
规格书 |
2200 | Tube | Active | Non Latching | 13.5 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2204-12-321RELAY RF SPST-NO 500MA 12V Coto Technology |
2,978 |
|
规格书 |
2200 | Tube | Active | Non Latching | 8 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
2332-12-020RELAY RF DPST-NO 500MA 12V Coto Technology |
4,916 |
|
规格书 |
2300 | Tray | Active | Non Latching | 12 mA | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
