购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402DC-30NXJRW0402DC-30NXJRW Coilcraft |
1,473 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 30 nH | ±5% | 810 mA | - | Unshielded | 245mOhm Max | 62 @ 900MHz | 4.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-6N6XGRWFIXED IND 6.6NH 1.65A 63MOHM SMD Coilcraft |
3,805 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 6.6 nH | ±2% | 1.65 A | - | Unshielded | 63mOhm Max | 68 @ 900MHz | 10.65GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-8N1XGRWFIXED IND 8.1NH 1.6A 70MOHM SMD Coilcraft |
1,608 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 8.1 nH | ±2% | 1.6 A | - | Unshielded | 70mOhm Max | 71 @ 900MHz | 8.47GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|

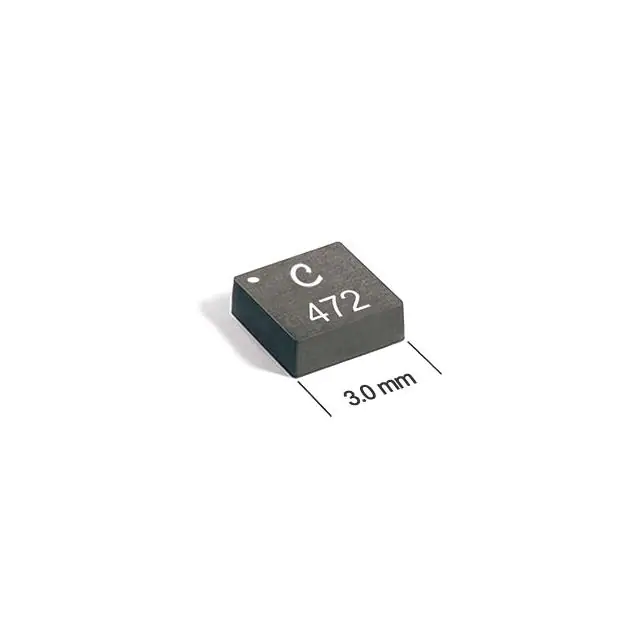

XFL3012-472MECXFL3012-472MEC Coilcraft |
4,018 |
|
规格书 |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1 A | 1.2A | Shielded | 171mOhm Max | - | 52.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
1008LS-222XJRC1008LS-222XJRC Coilcraft |
3,373 |
|
规格书 |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 1.1Ohm Max | 37 @ 50MHz | 150MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
MSS1278-683MLDPOWER INDUCTOR, SHIELDED, 10/20% Coilcraft |
3,811 |
|
规格书 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 68 µH | ±20% | 1.8 A | 3.4A | Shielded | 101.5mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|

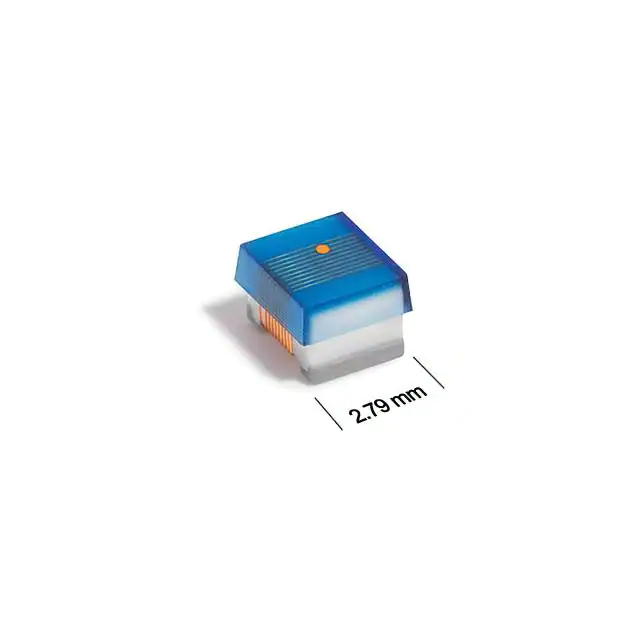

1008CS-121XGRC1008CS-121XGRC Coilcraft |
3,937 |
|
规格书 |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-270XJRC1008CS-270XJRC Coilcraft |
3,252 |
|
规格书 |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|

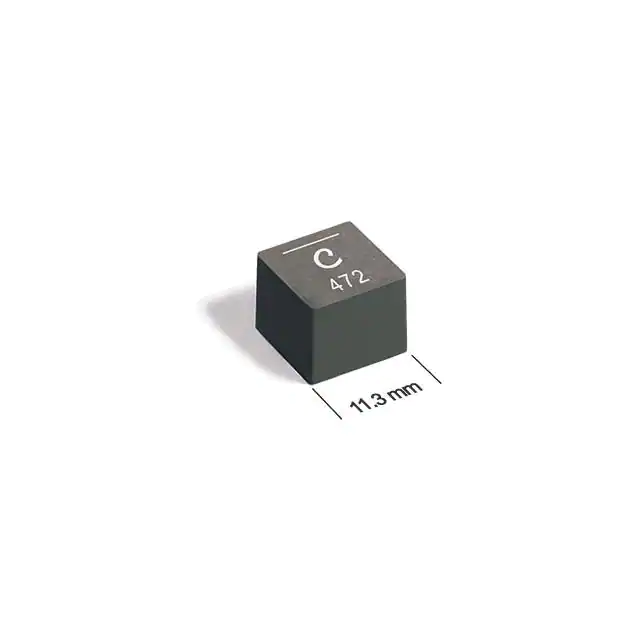

XAL1010-451MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,450 |
|
规格书 |
XAL1010 | Nonstandard | Strip | Active | Molded | Metal Composite | 450 nH | ±20% | 53 A | 70.5A | Shielded | 0.72mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
XGL5050-153MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
2,496 |
|
规格书 |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 15 µH | ±20% | 4.6 A | 3.9A | Shielded | 54.9mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
