购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGP4233-562MEFIXED IND 5.6UH 44A 0.75MOHM SM Coilcraft |
4,036 |
|
规格书 |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±20% | 44 A | 63A | Shielded | 0.75mOhm Max | - | 22.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-682MEFIXED IND 6.8UH 34A 2.95MOHM SM Coilcraft |
2,265 |
|
规格书 |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 34 A | 92A | Shielded | 2.95mOhm Max | - | 21.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
0402DC-2N0XJRW0402DC-2N0XJRW Coilcraft |
1,651 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 2 nH | ±5% | 2 A | - | Unshielded | 35mOhm Max | 60 @ 900MHz | 15.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-3N8XJRWFIXED IND 3.8NH 2.05A 46MOHM SM Coilcraft |
1,406 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.8 nH | ±5% | 2.05 A | - | Unshielded | 46mOhm Max | 69 @ 900MHz | 12.92GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-8N8XGRWFIXED IND 8.8NH 1.6A 70MOHM SMD Coilcraft |
1,272 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 8.8 nH | ±2% | 1.6 A | - | Unshielded | 70mOhm Max | 74 @ 900MHz | 7.54GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-5N2XGRWFIXED IND 5.2NH 1.85A 48MOHM SMD Coilcraft |
4,731 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 5.2 nH | ±2% | 1.85 A | - | Unshielded | 48mOhm Max | 68 @ 900MHz | 11.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
1812PS-823KRCFIXED IND 82UH 650MA 1.25OHM SM Coilcraft |
2,603 |
|
规格书 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 82 µH | ±10% | 650 mA | 280mA | Shielded | 1.25Ohm Max | 55 @ 1MHz | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
XFL2006-104MECFIXED IND 100UH 135MA 12.25OHM Coilcraft |
2,073 |
|
规格书 |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 100 µH | ±20% | 135 mA | 65mA | Shielded | 12.25Ohm Max | - | 13MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
XFL3012-561MECXFL3012-561MEC Coilcraft |
3,468 |
|
规格书 |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 560 nH | ±20% | 2.2 A | 2.9A | Shielded | 32mOhm Max | - | 203MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|

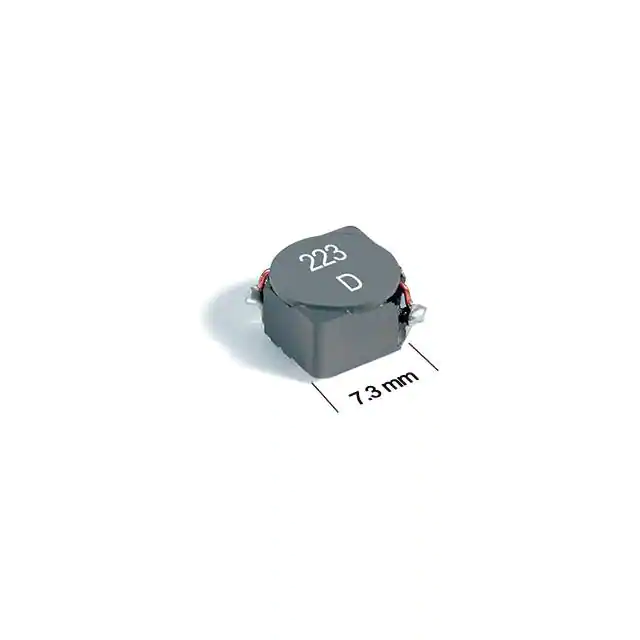

MSS7341-684KLDPOWER INDUCTOR, SHIELDED, 20/30% Coilcraft |
4,884 |
|
规格书 |
MSS7341 | Nonstandard | Strip | Active | Drum Core | Ferrite | 680 µH | ±10% | 420 mA | 220mA | Shielded | 1.98Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.161" (4.10mm) |
