购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

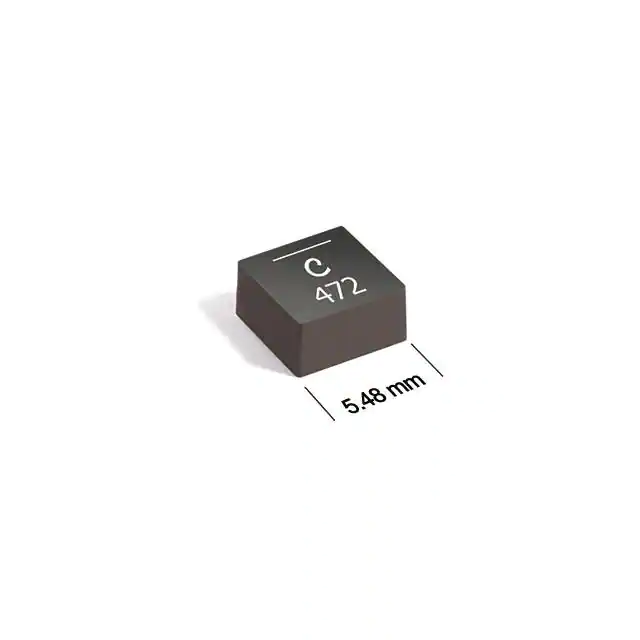

XGL5030-351MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
1,563 |
|
规格书 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 350 nH | ±20% | 22.8 A | 24.5A | Shielded | 2.2mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
XFL2006-472MECFIXED IND 4.7UH 660MA 732MOHM SM Coilcraft |
1,425 |
|
规格书 |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 660 mA | 310mA | Shielded | 732mOhm | - | 68MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|

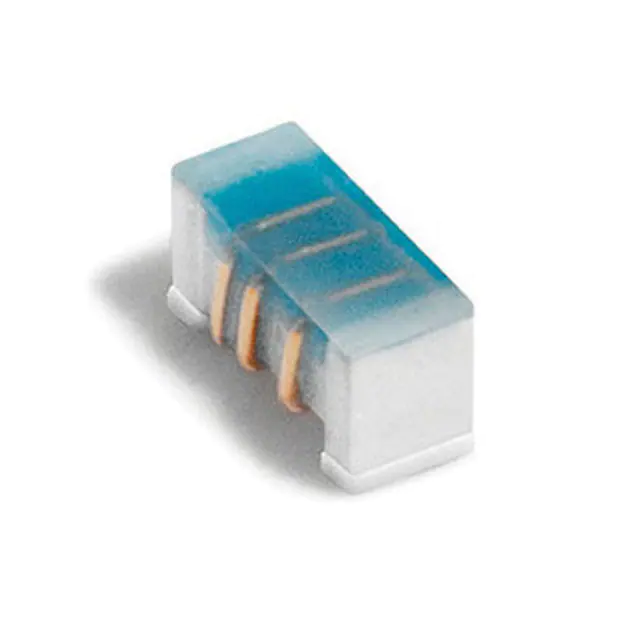

0402DC-6N7XGRWFIXED IND 6.7NH 1.65A 63MOHM SMD Coilcraft |
910 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 6.7 nH | ±2% | 1.65 A | - | Unshielded | 63mOhm Max | 69 @ 900MHz | 10.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-20NXGRWFIXED IND 20NH 1A 162.7MOHM SMD Coilcraft |
839 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 20 nH | ±2% | 1 A | - | Unshielded | 162.7mOhm Max | 67 @ 900MHz | 5.11GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
XGL5030-521MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
2,588 |
|
规格书 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 520 nH | ±20% | 25 A | 20.5A | Shielded | 3mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
|
0402DC-7N7XGRWFIXED IND 7.7NH 1.6A 70MOHM SMD Coilcraft |
1,223 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 7.7 nH | ±2% | 1.6 A | - | Unshielded | 70mOhm Max | 70 @ 900MHz | 9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-8N5XGRWFIXED IND 8.5NH 1.6A 70MOHM SMD Coilcraft |
4,002 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 8.5 nH | ±2% | 1.6 A | - | Unshielded | 70mOhm Max | 73 @ 900MHz | 7.94GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
XGL4030-222MECFIXED IND 2.2UH 8.7A 15MOHM SMD Coilcraft |
3,343 |
|
规格书 |
XGL4030 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 8.7 A | 7A | Shielded | 15mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
0402DC-23NXJRW0402DC-23NXJRW Coilcraft |
3,710 |
|
规格书 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 23 nH | ±5% | 970 mA | - | Unshielded | 176.5mOhm Max | 68 @ 900MHz | 4.98GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|

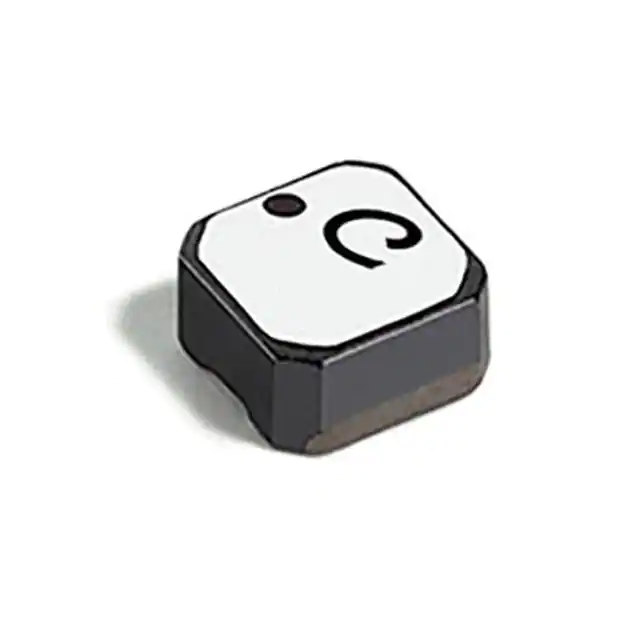

LPS3015-223MRCFIXED IND 22UH 570MA 825MOHM SMD Coilcraft |
3,521 |
|
规格书 |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 22 µH | ±20% | 570 mA | 500mA | Shielded | 825mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
