购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SER2010-301MLDFIXED IND 300NH 45A 1MOHM SM Coilcraft |
2,892 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 300 nH | ±20% | 45 A | 100A | Shielded | 1mOhm Max | - | 182MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
XFL4020-332MECFIXED IND 3.3UH 5.2A 38.3MOHM SM Coilcraft |
3,393 |
|
规格书 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 5.2 A | 2.9A | Shielded | 38.3mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
XGL5030-223MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
4,411 |
|
规格书 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 3.6 A | 3A | Shielded | 118.8mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|

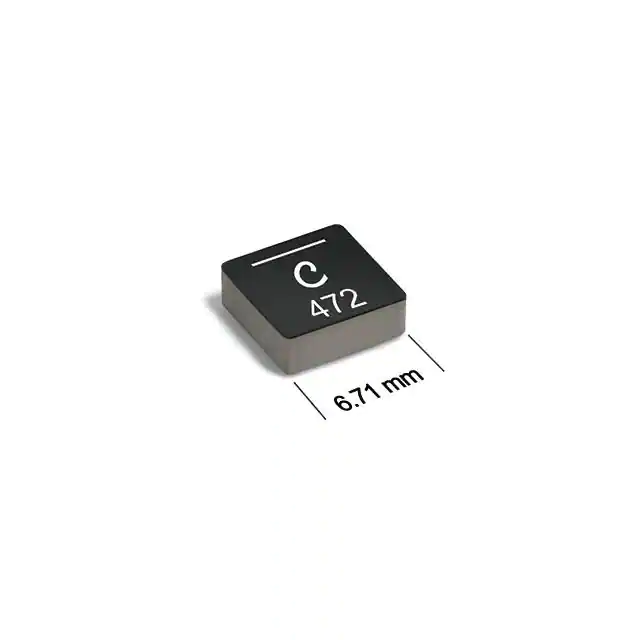

XGL6030-472MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
1,163 |
|
规格书 |
XGL6030 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 10 A | 8.6A | Shielded | 21mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.122" (3.10mm) |
|
XGL5050-472MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
2,169 |
|
规格书 |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 9.7 A | 7A | Shielded | 16mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
|
XAL5050-472MECFIXED IND 4.7UH 8.2A 24.15MOHM Coilcraft |
4,985 |
|
规格书 |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 8.2 A | 6.6A | Shielded | 24.15mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
|
MSS1210-104KEDFIXED IND 100UH 2.4A 125MOHM SM Coilcraft |
4,903 |
|
规格书 |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 100 µH | ±10% | 2.4 A | 3.1A | Shielded | 125mOhm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
XGL1010-152MEDFIXED IND 1.5UH 40.7A 1.7MOHM SM Coilcraft |
4,499 |
|
规格书 |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 40.7 A | 45A | Shielded | 1.7mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|

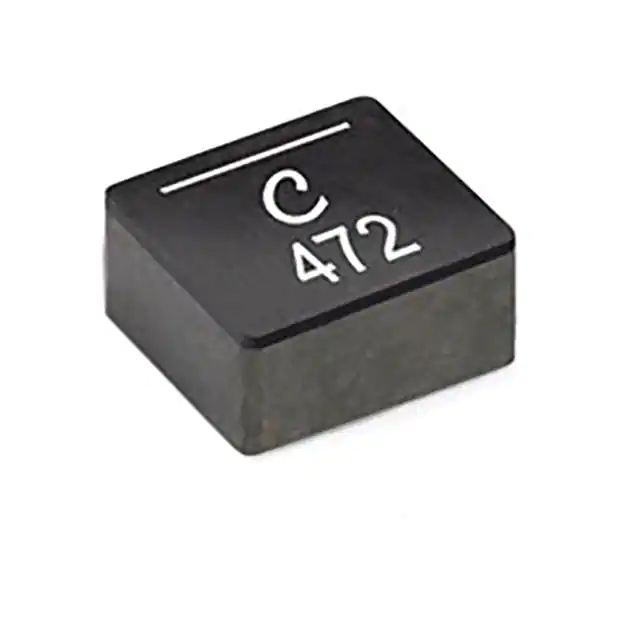

XGL3520-451MECFIXED INDUCTOR 0.45UH SMD Coilcraft |
2,471 |
|
规格书 |
XGL3520 | Nonstandard | Strip | Active | Molded | - | 450 nH | ±20% | 12 A | 7.8A | Shielded | 6.8mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
XFL2010-121MECFIXED INDUCTOR 0.12UH SMD Coilcraft |
2,158 |
|
规格书 |
XFL2010 | Nonstandard | Strip | Active | - | - | 120 nH | ±20% | 2.7 A | 4.9A | Shielded | 22mOhm Max | - | 730MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.039" (1.00mm) |
