购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD1370-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
118 |
|
规格书 |
CPD1370 | Vertical, 2 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 5.2 A | 7A | Shielded | 17.9mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 3 PC Pin | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.591" (15.00mm) |
|
|
VSEB0850H-8R2MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
700 |
|
规格书 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 10.3 A | 9A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
VSEB0850H-100MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
700 |
|
规格书 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 9.8 A | 8.2A | Shielded | 29.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
VSEB0850H-6R8MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
700 |
|
规格书 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 12 A | 9.7A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
VSEB0850H-150MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
700 |
|
规格书 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 8.1 A | 7.2A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|
|
VSEB0850H-220MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
700 |
|
规格书 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 5.8 A | 6.2A | Shielded | 64.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.189" (4.80mm) |
|

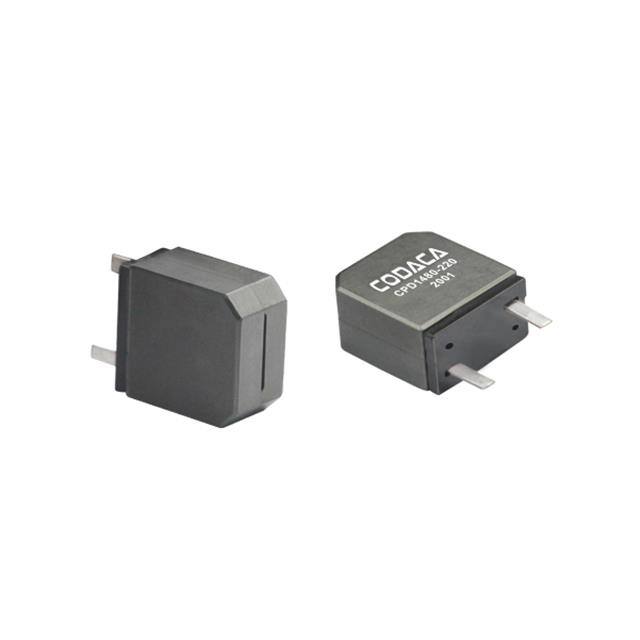

CPD1480-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
459 |
|
规格书 |
CPD1480 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 8 A | 6.2A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.299" W (14.00mm x 7.60mm) | 0.630" (16.00mm) |
|
CSBX1275-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,878 |
|
规格书 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 19 A | 30A | Shielded | 4.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-3R3MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,138 |
|
规格书 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 22 A | 37A | Shielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1275-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
766 |
|
规格书 |
CSBL1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 9.5A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
