购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

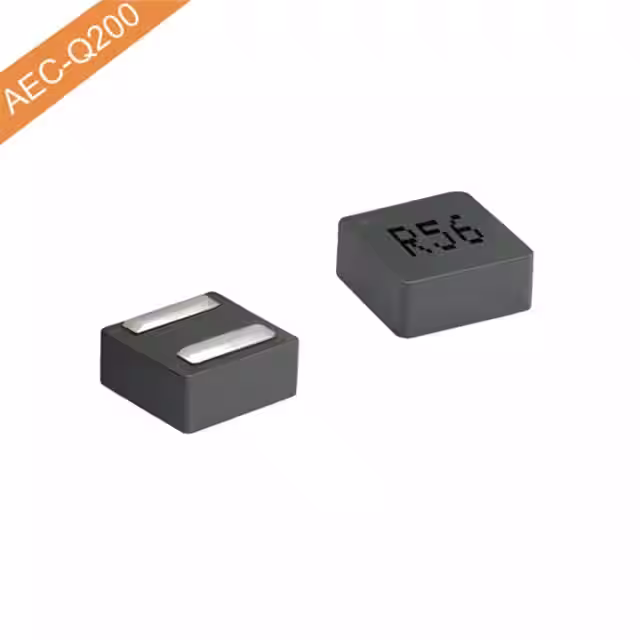

CSEB0520H-1R0MSMD MOLDING POWER CHOKE CODACA |
500 |
|
规格书 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1 µH | ±20% | 9.6 A | 9.5A | Shielded | 10.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
CSEB0520H-1R2MSMD MOLDING POWER CHOKE CODACA |
495 |
|
规格书 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 9 A | 8.7A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|

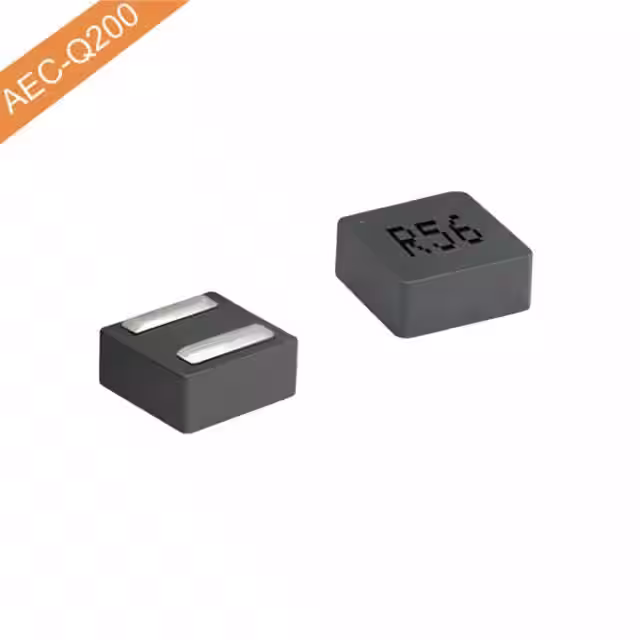

CSEB0530H-1R2MSMD MOLDING POWER CHOKE CODACA |
470 |
|
规格书 |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 10.5 A | 11A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) |
|
|
CSEB0530H-1R0MSMD MOLDING POWER CHOKE CODACA |
465 |
|
规格书 |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1 µH | ±20% | 10.8 A | 11.5A | Shielded | 8.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) |
|
CSEB0520H-R16MSMD MOLDING POWER CHOKE CODACA |
400 |
|
规格书 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.16 µH | ±20% | 20 A | 29A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
CSEB0550H-8R2MSMD MOLDING POWER CHOKE CODACA |
396 |
|
规格书 |
CSEB0550H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 6.2 A | 4.7A | Shielded | 34.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
|
|
CSEB0530H-1R5MSMD MOLDING POWER CHOKE CODACA |
250 |
|
规格书 |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 10 A | 10A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) |
|
|
CSEB0530H-3R3MSMD MOLDING POWER CHOKE CODACA |
250 |
|
规格书 |
CSEB0530H | 2-SMD | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 8.2 A | 7A | Shielded | 19.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) |
|
|
CSEB0550H-5R6MSMD MOLDING POWER CHOKE CODACA |
217 |
|
规格书 |
CSEB0550H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 7.3 A | 5.7A | Shielded | 25.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
|
CSBX1265-470MSMD HIGH CURRENT POWER INDUCTOR CODACA |
726 |
|
规格书 |
CSBX1265 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 47 µH | ±20% | 4 A | 7.2A | Shielded | 62.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
