购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP43-3R3MSMD POWER INDUCTOR CODACA |
2,523 |
|
规格书 |
SP43 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.45 A | 2.6A | Unshielded | 35.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.125" (3.18mm) |
|
|
SP43-270KSMD POWER INDUCTOR CODACA |
1,900 |
|
规格书 |
SP43 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.18 A | 950mA | Unshielded | 252mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.125" (3.18mm) |
|
|
CSAB1040A-3R3MSMD MOLDING POWER CHOKE CODACA |
4,760 |
|
规格书 |
CSAB1040A | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 10.7 A | 16A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-680MSMD MOLDING POWER CHOKE CODACA |
1,245 |
|
规格书 |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 68 µH | ±20% | 2.6 A | 3.8A | Shielded | 195mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPRH124-101MSMD POWER INDUCTOR CODACA |
3,000 |
|
规格书 |
SPRH124 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.46 A | 1.99A | Shielded | 272mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.181" (4.60mm) |
|
|
CSAC0750-R47MSMD MOLDING POWER CHOKE CODACA |
800 |
|
规格书 |
CSAC0750 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 20 A | 24A | Shielded | 4.0mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.189" (4.80mm) |
|
|
CSAC0750-100MSMD MOLDING POWER CHOKE CODACA |
500 |
|
规格书 |
CSAC0750 | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4.5 A | 7.6A | Shielded | 69.0mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.289" L x 0.262" W (7.35mm x 6.65mm) | 0.190" (4.85mm) |
|
|
CSAB0750-100MSMD MOLDING POWER CHOKE CODACA |
5,565 |
|
规格书 |
CSAB0750 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 4.3 A | 5.3A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
|

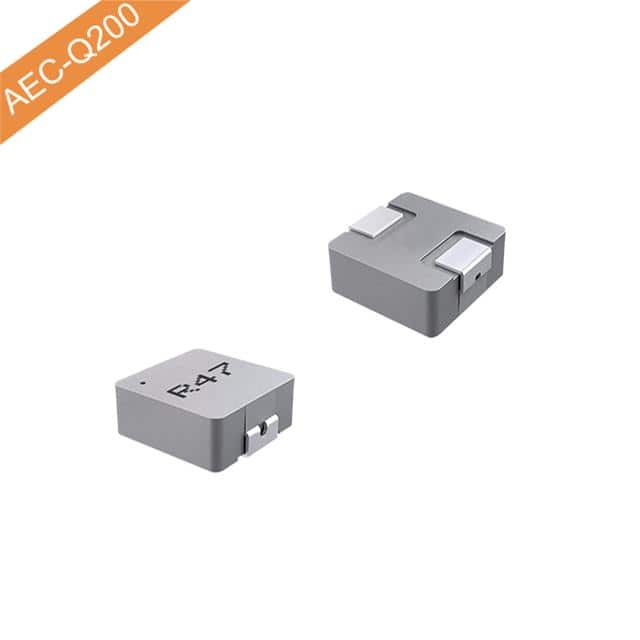

CSAB0420-2R2MSMD MOLDING POWER CHOKE CODACA |
3,901 |
|
规格书 |
CSAB0420 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 4 A | 5A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0750-220MSMD MOLDING POWER CHOKE CODACA |
2,391 |
|
规格书 |
CSAB0750 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 3.2 A | 4A | Shielded | 106mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
