购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1275-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
600 |
|
规格书 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 14 A | 25.5A | Shielded | 6.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-2R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
501 |
|
规格书 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 24 A | 45A | Shielded | 2.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1265-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
330 |
|
规格书 |
CSBL1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 8A | Shielded | 21.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|

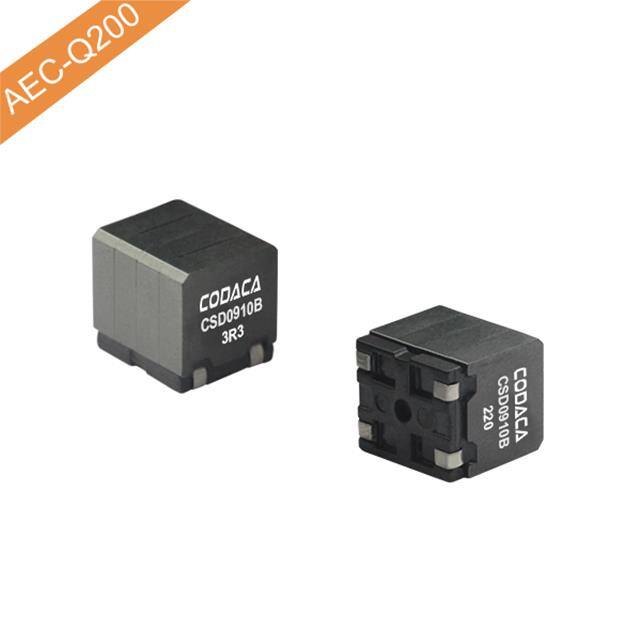

CSD0910B-6R8MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
300 |
|
规格书 |
CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 5 A | 8.7A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
CSD0910B-150MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
300 |
|
规格书 |
CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 4.6A | Shielded | 39.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
CSBX1275-270MFIX IND 27UH 7A 26.5MOHM SMD CODACA |
300 |
|
规格书 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 27 µH | ±20% | 7 A | 11.4A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1275-5R6MSMD HIGH CURRENT POWER INDUCTOR CODACA |
298 |
|
规格书 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 22A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-5R6MSMD HIGH CURRENT POWER INDUCTOR CODACA |
289 |
|
规格书 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 27A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBL1275-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
289 |
|
规格书 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 11 A | 16A | Shielded | 10.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSD0910B-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
283 |
|
规格书 |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5 A | 5.6A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
