购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD Bourns Inc. |
1,418 |
|
规格书 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 800 nH | ±20% | 21 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|

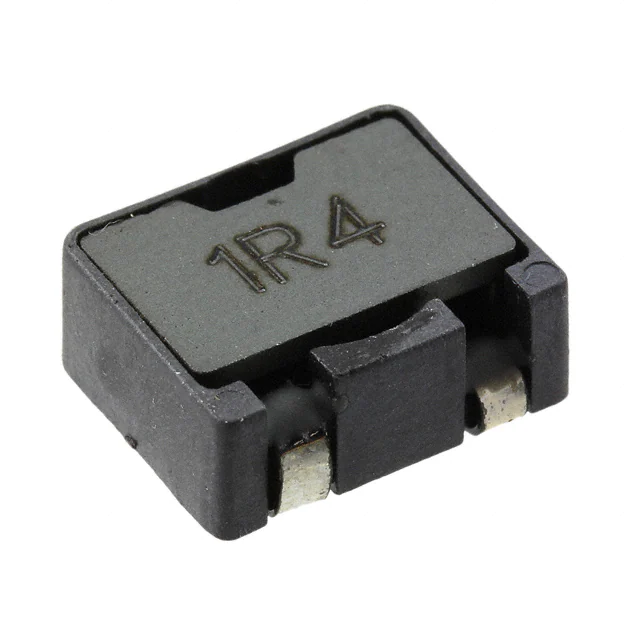

SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD Bourns Inc. |
1,891 |
|
规格书 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 13 A | 14A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD Bourns Inc. |
4,203 |
|
规格书 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.5 A | 10A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD Bourns Inc. |
2,342 |
|
规格书 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 8 A | 8A | Shielded | 10.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD Bourns Inc. |
2,099 |
|
规格书 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 360 nH | ±30% | 23 A | 26A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|

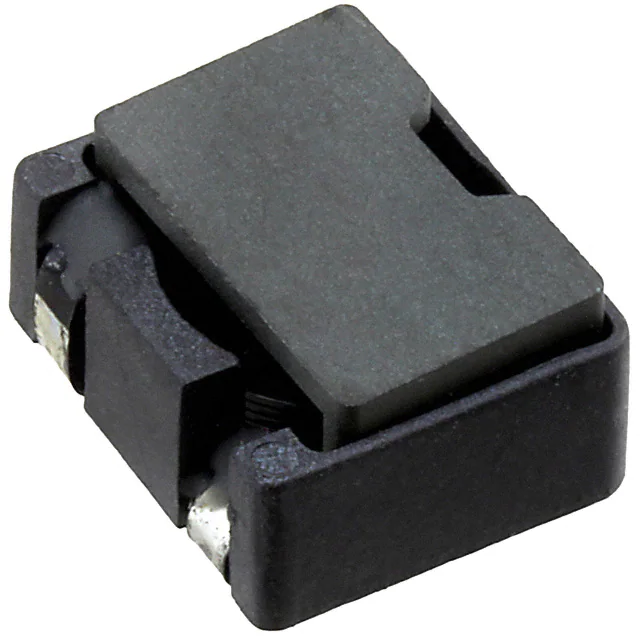

SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD Bourns Inc. |
2,472 |
|
规格书 |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 10 A | 8A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|
|
SRP1055-7R2MFIXED IND 7.2UH 7A 15.5 MOHM SMD Bourns Inc. |
1,061 |
|
规格书 |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7.2 µH | ±20% | 7 A | 6.2A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|

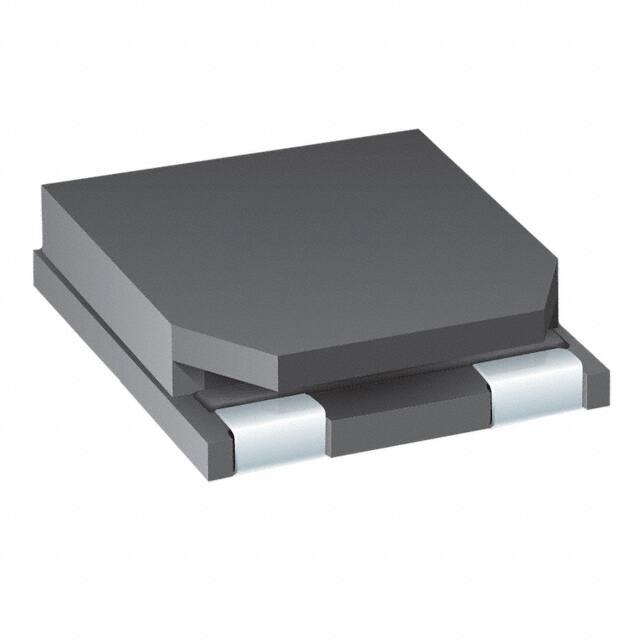

SRP1204-1R1MFIXED IND 1.1UH 12A 4.5 MOHM SMD Bourns Inc. |
4,890 |
|
规格书 |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 µH | ±20% | 12 A | 13A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
SRP1204-R50MFIXED IND 550NH 13A 3 MOHM SMD Bourns Inc. |
4,270 |
|
规格书 |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 550 nH | ±20% | 13 A | 14A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD Bourns Inc. |
1,678 |
|
规格书 |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 14 A | 22A | Shielded | 3.4mOhm Max | - | 75MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
