购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1205-2R5YFIXED IND 2.5UH 11.5A 3.4MOHM SM Bourns Inc. |
2,583 |
|
规格书 |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 µH | ±25% | 11.5 A | 12A | Shielded | 3.4mOhm Max | - | 40MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-4R0YFIXED IND 4UH 10.5A 5.4 MOHM SMD Bourns Inc. |
2,882 |
|
规格书 |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 10.5 A | 8.3A | Shielded | 5.4mOhm Max | - | 35MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-R60YFIXED IND 600NH 16A 2.5 MOHM SMD Bourns Inc. |
1,659 |
|
规格书 |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 600 nH | ±25% | 16 A | 27A | Shielded | 2.5mOhm Max | - | 95MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

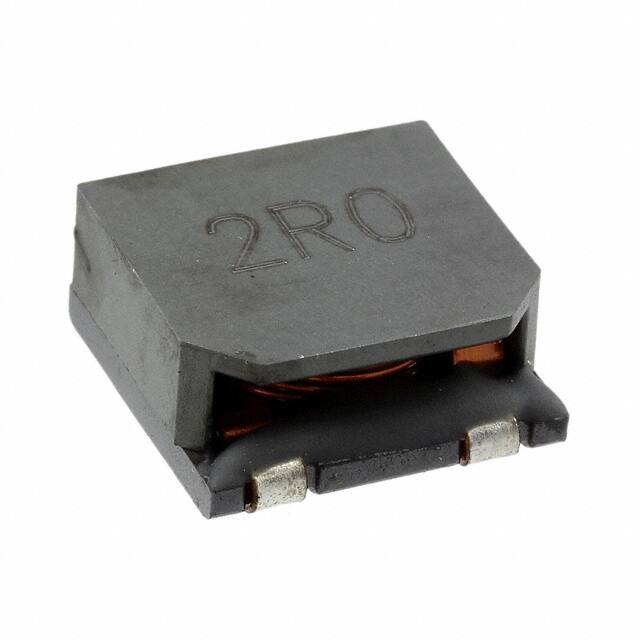

SRP1206-2R0YFIXED IND 2UH 17A 6 MOHM SMD Bourns Inc. |
2,649 |
|
规格书 |
SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 17 A | 15A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRP1206-3R3ZFIXED IND 3.3UH 14A 7 MOHM SMD Bourns Inc. |
3,271 |
|
规格书 |
SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±25% | 14 A | 12A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP1235-100MFIXED IND 10UH 7A 34 MOHM SMD Bourns Inc. |
3,407 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 10 µH | ±20% | 7 A | 9.5A | Shielded | 34mOhm Max | - | 11MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-1R8MFIXED IND 1.8UH 16.5A 7 MOHM SMD Bourns Inc. |
2,221 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.8 µH | ±20% | 16.5 A | 24A | Shielded | 7mOhm Max | - | 32MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-5R6MFIXED IND 5.6UH 10A 18 MOHM SMD Bourns Inc. |
3,885 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 5.6 µH | ±20% | 10 A | 14A | Shielded | 18mOhm Max | - | 15MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-8R2MFIXED IND 8.2UH 8.5A 28 MOHM SMD Bourns Inc. |
3,763 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 8.2 µH | ±20% | 8.5 A | 12A | Shielded | 28mOhm Max | - | 12MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R10MFIXED IND 100NH 43A 960 MOHM SMD Bourns Inc. |
2,162 |
|
规格书 |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 100 nH | ±20% | 43 A | 56A | Shielded | 960mOhm Max | - | 105MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
