购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

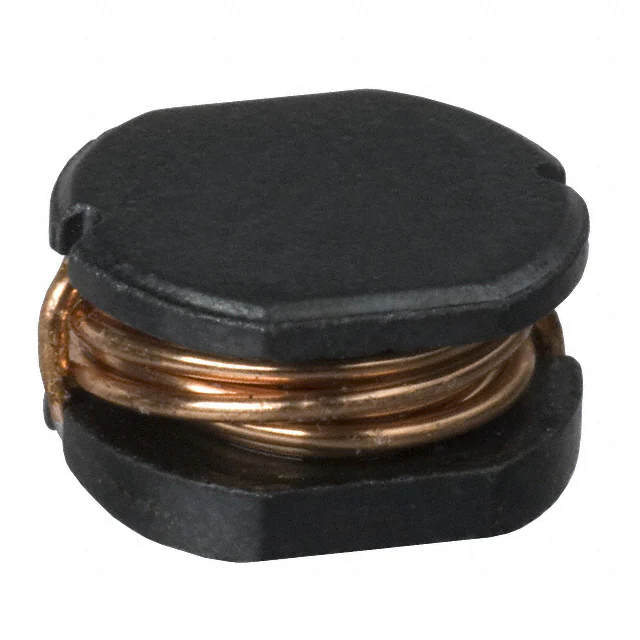

PM105-120MFIXED IND 12UH 2.45A 70 MOHM SMD Bourns Inc. |
1,702 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.45 A | - | Unshielded | 70mOhm | - | 23MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-180MFIXED IND 18UH 2.15A 90 MOHM SMD Bourns Inc. |
4,961 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.15 A | - | Unshielded | 90mOhm | - | 18MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-270MFIXED IND 27UH 1.76A 110MOHM SMD Bourns Inc. |
2,701 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.76 A | - | Unshielded | 110mOhm | - | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-560KFIXED IND 56UH 1.17A 190MOHM SMD Bourns Inc. |
1,621 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.17 A | - | Unshielded | 190mOhm | - | 10MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-331KFIXED IND 330UH 520MA 1.15OHM SM Bourns Inc. |
3,002 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | - | Unshielded | 1.15Ohm | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-391KFIXED IND 390UH 480MA 1.3OHM SMD Bourns Inc. |
1,147 |
|
规格书 |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 480 mA | - | Unshielded | 1.3Ohm | - | 3MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

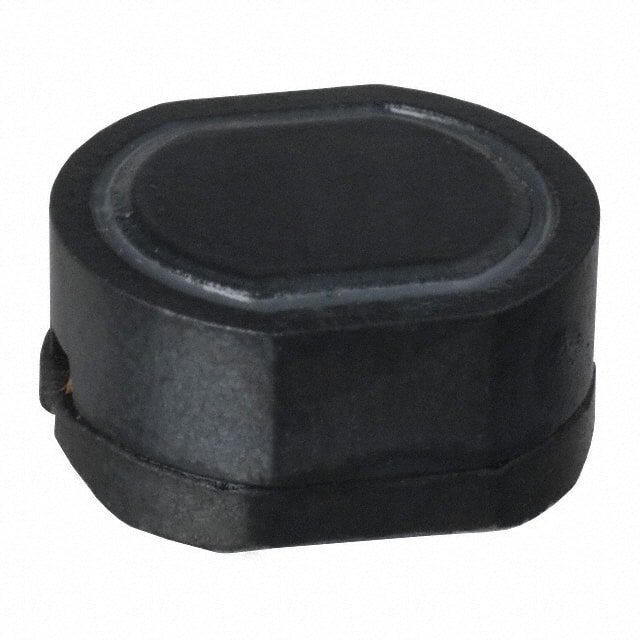

PM105S-390MFIXED IND 39UH 1.28A 160MOHM SMD Bourns Inc. |
3,731 |
|
规格书 |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.28 A | - | Shielded | 160mOhm Max | - | 15MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-121MFIXED IND 120UH 730MA 380MOHM SM Bourns Inc. |
2,212 |
|
规格书 |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 730 mA | - | Shielded | 380mOhm Max | - | 7MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-181MFIXED IND 180UH 600MA 620MOHM SM Bourns Inc. |
2,870 |
|
规格书 |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 600 mA | - | Shielded | 620mOhm Max | - | 5MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-391MFIXED IND 390UH 410MA 1.18OHM SM Bourns Inc. |
2,715 |
|
规格书 |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 410 mA | - | Shielded | 1.18Ohm Max | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
