购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

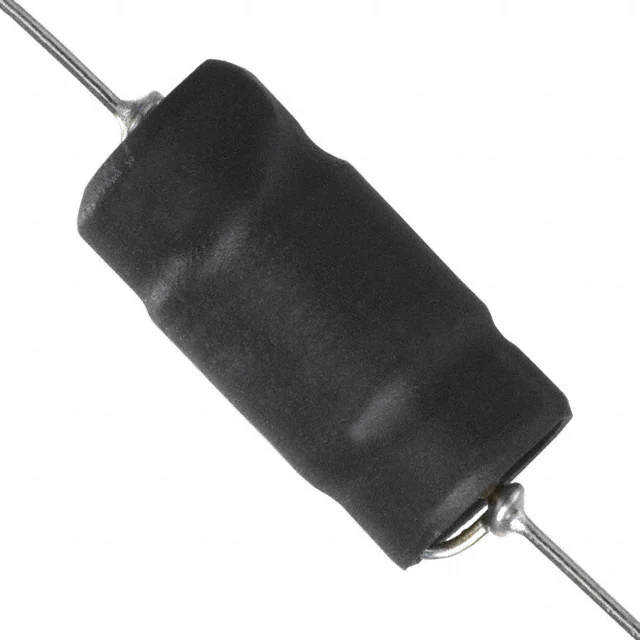

5900-390FIXED IND 39UH 3.3A 39 MOHM TH Bourns Inc. |
1,657 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 3.3 A | 4.3A | Unshielded | 39mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-121FIXED IND 120UH 2.1A 97 MOHM TH Bourns Inc. |
2,688 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.1 A | 2.4A | Unshielded | 97mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-271FIXED IND 270UH 1.4A 210 MOHM TH Bourns Inc. |
3,468 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.4 A | 1.6A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-821FIXED IND 820UH 850MA 580MOHM TH Bourns Inc. |
4,278 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 850 mA | 920mA | Unshielded | 580mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-152FIXED IND 1.5MH 560MA 1.33OHM TH Bourns Inc. |
1,987 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 560 mA | 680mA | Unshielded | 1.33Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-182FIXED IND 1.8MH 530MA 1.5 OHM TH Bourns Inc. |
4,102 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 530 mA | 620mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-272FIXED IND 2.7MH 410MA 2.5 OHM TH Bourns Inc. |
1,550 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 410 mA | 510mA | Unshielded | 2.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-332FIXED IND 3.3MH 390MA 2.8 OHM TH Bourns Inc. |
2,445 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 390 mA | 460mA | Unshielded | 2.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-682FIXED IND 6.8MH 280MA 5.4 OHM TH Bourns Inc. |
2,577 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 280 mA | 320mA | Unshielded | 5.4Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-822FIXED IND 8.2MH 260MA 6 OHM TH Bourns Inc. |
4,547 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 260 mA | 290mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
