购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

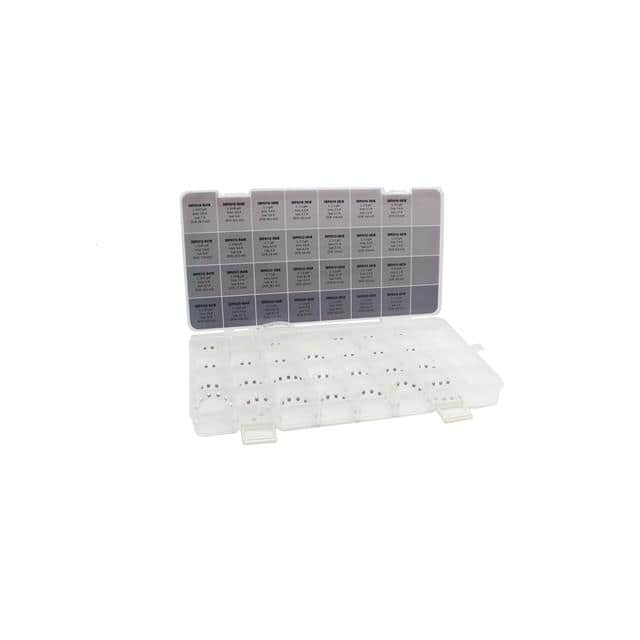

SRP03-LABSRP0310,0312,0315,0320 SERIES DE Bourns Inc. |
2,228 |
|
规格书 |
- | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

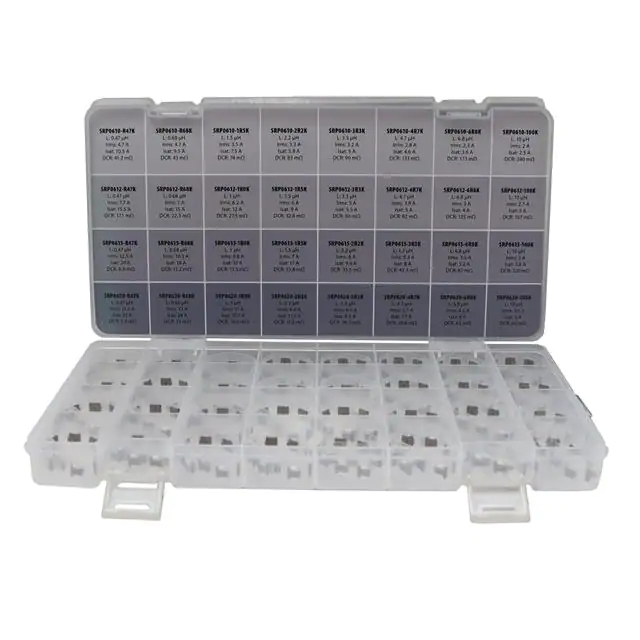

SRP06-LABSRP0610,0612,0615,0620 SERIES DE Bourns Inc. |
1,611 |
|
规格书 |
- | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9230-00FIXED IND 150NH 1.1A 100 MOHM TH Bourns Inc. |
4,078 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | 150 nH | ±10% | 1.1 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
4629FIXED IND 55UH 500MA 1 OHM TH Bourns Inc. |
1,254 |
|
规格书 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 55 µH | ±5% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.52MHz | 17MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
5900-5R6FIXED IND 5.6UH 5.4A 15 MOHM TH Bourns Inc. |
4,501 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 5.4 A | 11.8A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-6R8FIXED IND 6.8UH 5.2A 16 MOHM TH Bourns Inc. |
1,423 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 5.2 A | 10.8A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-8R2FIXED IND 8.2UH 5A 17 MOHM TH Bourns Inc. |
4,612 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 5 A | 10A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-120FIXED IND 12UH 4.6A 21 MOHM TH Bourns Inc. |
1,790 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 4.6 A | 8.1A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-150FIXED IND 15UH 4.2A 25 MOHM TH Bourns Inc. |
2,114 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 4.2 A | 6.8A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-180FIXED IND 18UH 4A 27 MOHM TH Bourns Inc. |
4,199 |
|
规格书 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 4 A | 6.2A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
