| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3308-221MFIXED IND 220UH 400MA 1.9OHM SMD Bourns Inc. |
2,810 |
|
规格书 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 500mA | Unshielded | 1.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-681MFIXED IND 680UH 100MA 5.3OHM SMD Bourns Inc. |
2,505 |
|
规格书 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 100 mA | 200mA | Unshielded | 5.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-102MFIXED IND 1MH 50MA 8.4 OHM SMD Bourns Inc. |
3,095 |
|
规格书 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 50 mA | 100mA | Unshielded | 8.4Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
PM3340-681MFIXED IND 680UH 200MA 1.2OHM SMD Bourns Inc. |
2,962 |
|
规格书 |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.453" (11.50mm) |
|

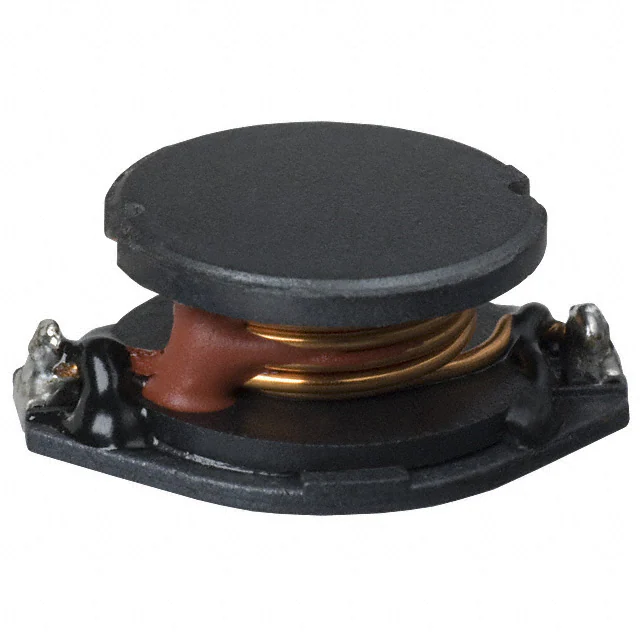

PM5022-102MFIXED IND 1MH 500MA 1.8 OHM SMD Bourns Inc. |
4,527 |
|
规格书 |
PM5022 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 1A | Unshielded | 1.8Ohm | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
2102-HFIXED IND 12UH 10.3A 7 MOHM TH Bourns Inc. |
4,748 |
|
规格书 |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 12 µH | ±15% | 10.3 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2215-HFIXED IND 180UH 3.8A 75 MOHM TH Bourns Inc. |
1,162 |
|
规格书 |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 3.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|

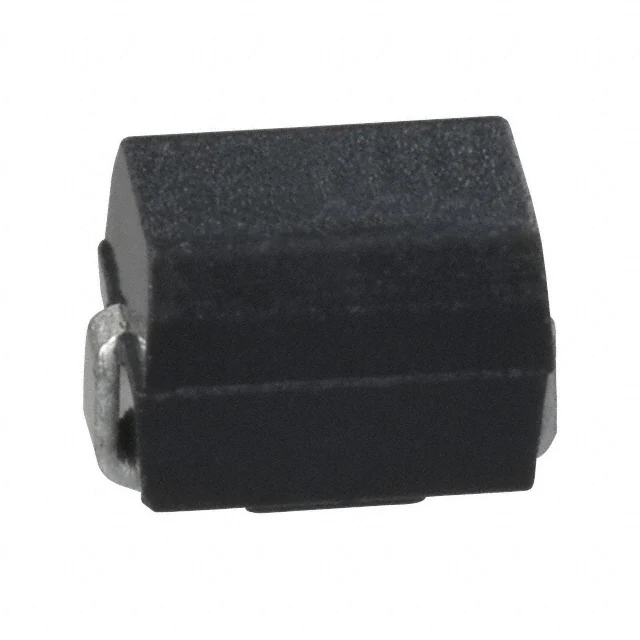

PM1812-R12KFIXED IND 120NH 770MA 200MOHM SM Bourns Inc. |
3,868 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 nH | ±10% | 770 mA | - | Unshielded | 200mOhm Max | 35 @ 25.2MHz | 280MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R18KFIXED IND 180NH 700MA 240MOHM SM Bourns Inc. |
2,546 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 nH | ±10% | 700 mA | - | Unshielded | 240mOhm Max | 35 @ 25.2MHz | 220MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R47KFIXED IND 470NH 545MA 320MOHM SM Bourns Inc. |
4,124 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 nH | ±10% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
