购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS5040330M-10FIXED IND 33UH 1.2A 188 MOHM SMD Laird-Signal Integrity Products |
5,357 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 188mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYS50401R5N-10FIXED IND 1.5UH 4.3A 15 MOHM SMD Laird-Signal Integrity Products |
4,971 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 4.3 A | 6.3A | Shielded | 15mOhm | - | 86MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYS5020150M-10FIXED IND 15UH 1.25A 165MOHM SMD Laird-Signal Integrity Products |
4,740 |
|
规格书 |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.25 A | 1.35A | Shielded | 165mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

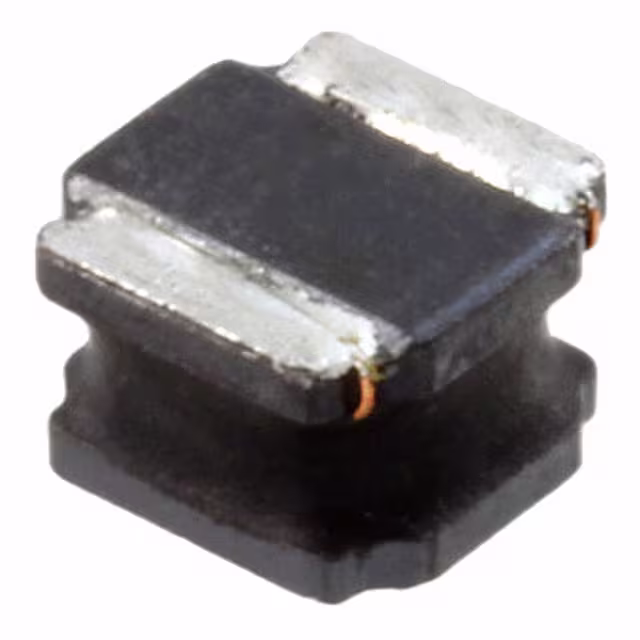

TYS4030121M-10FIXED IND 120UH 420MA 1.755 OHM Laird-Signal Integrity Products |
4,629 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 420 mA | 550mA | Shielded | 1.755Ohm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

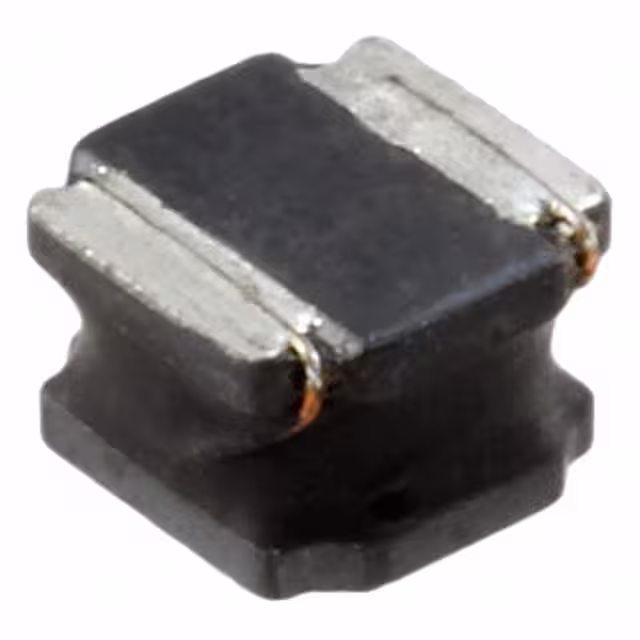

TYS4030330M-10FIXED IND 33UH 840MA 429MOHM SMD Laird-Signal Integrity Products |
4,621 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 840 mA | 1.1A | Shielded | 429mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS50403R3N-10FIXED IND 3.3UH 3.4A 24 MOHM SMD Laird-Signal Integrity Products |
3,866 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.4 A | 3.95A | Shielded | 24mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

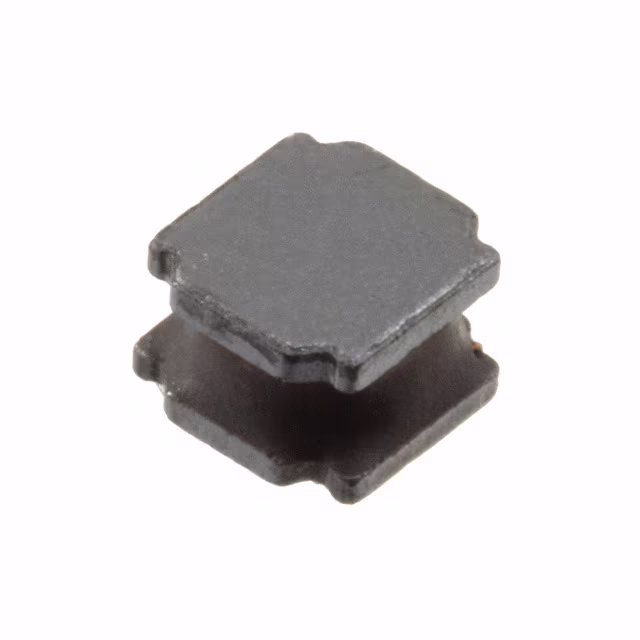

TYS4030680M-10FIXED IND 68UH 520MA 1.128OHM SM Laird-Signal Integrity Products |
2,769 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 520 mA | 720mA | Shielded | 1.128Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
TYS6045330M-10FIXED IND 33UH 1.45A 137MOHM SMD Laird-Signal Integrity Products |
1,733 |
|
规格书 |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.45 A | 1.65A | Shielded | 137mOhm | - | 7.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60453R3N-10FIXED IND 3.3UH 3.7A 21 MOHM SMD Laird-Signal Integrity Products |
9,935 |
|
规格书 |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.7 A | 5.9A | Shielded | 21mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60451R0N-10FIXED IND 1UH 5.14A 11 MOHM SMD Laird-Signal Integrity Products |
9,685 |
|
规格书 |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.14 A | 9.85A | Shielded | 11mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
