购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA4020150M-10FIXED IND 15UH 1A 400 MOHM SMD Laird-Signal Integrity Products |
7,337 |
|
规格书 |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1 A | 2.1A | Shielded | 400mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
TYA40123R3M-10PWRIND,SMT,SHLD,IRATED 4.00X4.00 Laird-Signal Integrity Products |
17,439 |
|
规格书 |
TYA4012 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 2 A | 2.8A | Shielded | 130mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
|
TYS40301R5N-10FIXED IND 1.5UH 3.34A 20MOHM SMD Laird-Signal Integrity Products |
4,000 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 3.34 A | 4.84A | Shielded | 20mOhm | - | 62MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

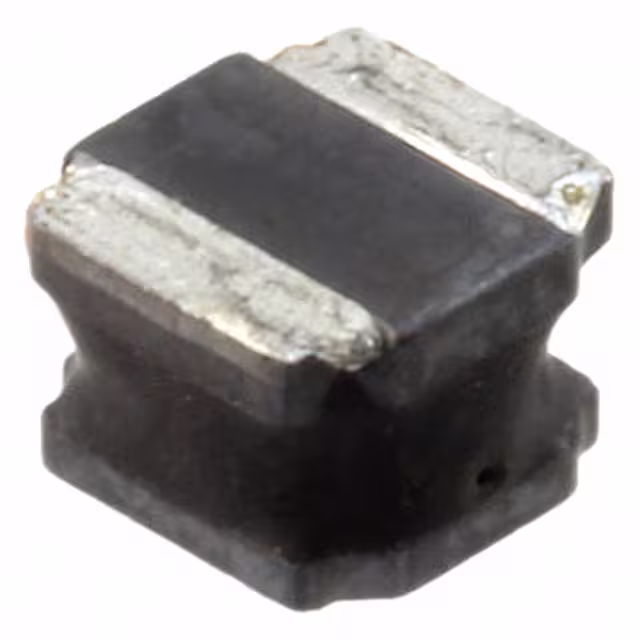

TYS40302R2N-10FIXED IND 2.2UH 2.95A 39MOHM SMD Laird-Signal Integrity Products |
22,899 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 2.95 A | 4.9A | Shielded | 39mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS40303R3M-10FIXED IND 3.3UH 2.4A 40 MOHM SMD Laird-Signal Integrity Products |
17,213 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2.4 A | 3.3A | Shielded | 40mOhm | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

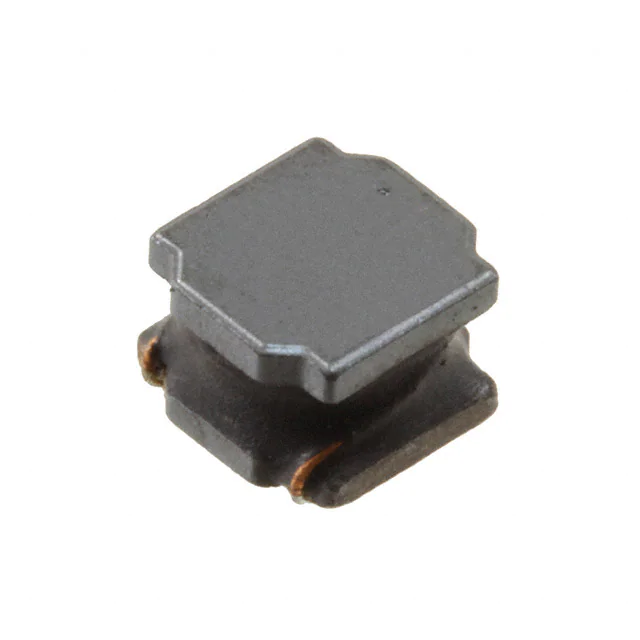

TYS40306R8M-10FIXED IND 6.8UH 1.6A 117MOHM SMD Laird-Signal Integrity Products |
7,441 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.6 A | 2.75A | Shielded | 117mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
TYS5040680M-10FIXED IND 68UH 800MA 400MOHM SMD Laird-Signal Integrity Products |
5,703 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 800 mA | 900mA | Shielded | 400mOhm Max | - | 5.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYS4030150M-10FIXED IND 15UH 1.11A 247MOHM SMD Laird-Signal Integrity Products |
5,695 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.11 A | 1.65A | Shielded | 247mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

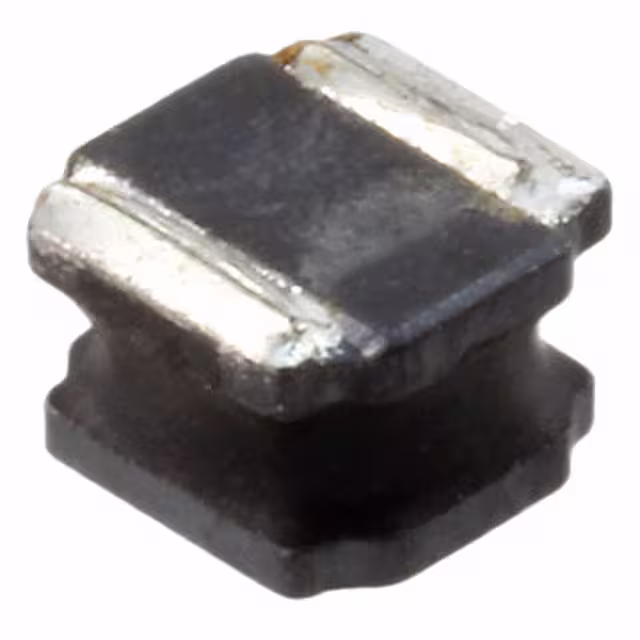

TYS40304R7M-10FIXED IND 4.7UH 2A 78 MOHM SMD Laird-Signal Integrity Products |
5,557 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2 A | 2.9A | Shielded | 78mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS4030470M-10FIXED IND 47UH 720MA 637MOHM SMD Laird-Signal Integrity Products |
5,420 |
|
规格书 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 720 mA | 950mA | Shielded | 637mOhm Max | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
