| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA2016103R3M-10FIXED IND 3.3UH 1.1A 307MOHM SMD Laird-Signal Integrity Products |
9,808 |
|
规格书 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.1 A | 1.4A | Shielded | 307mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
|
TYA2016106R8M-10FIXED IND 6.8UH 700MA 620MOHM SM Laird-Signal Integrity Products |
5,230 |
|
规格书 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 700 mA | 950mA | Shielded | 620mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
-Top-MGV-Series.jpg)
|

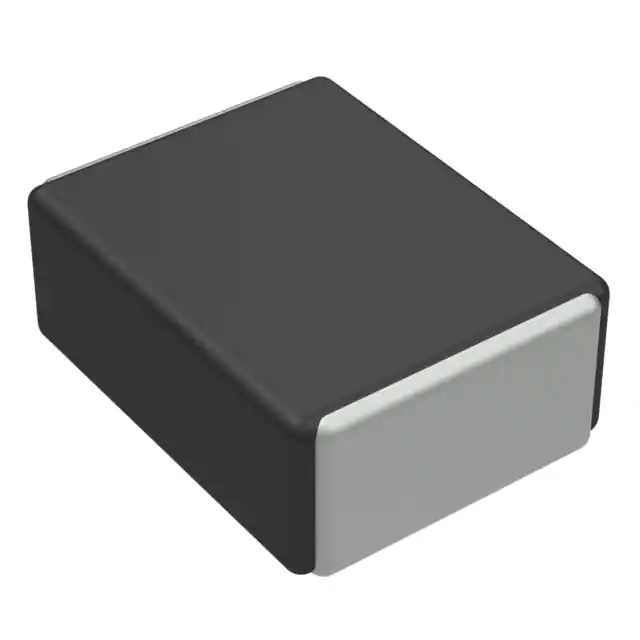

MGV2520121R0M-10FIXED IND 1UH 3.5A 49 MOHM SMD Laird-Signal Integrity Products |
1,190 |
|
规格书 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.5 A | 4.3A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MGV252012SR47M-10FIXED IND 470NH 5.8A 22MOHM SMD Laird-Signal Integrity Products |
13,829 |
|
规格书 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.8 A | 6.8A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MGV252010S2R2M-10FIXED IND 2.2UH 2.4A 110MOHM SMD Laird-Signal Integrity Products |
12,785 |
|
规格书 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.4 A | 3.3A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MGV252012S1R0M-10FIXED IND 1UH 3.9A 44 MOHM SMD Laird-Signal Integrity Products |
11,706 |
|
规格书 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.9 A | 4.3A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

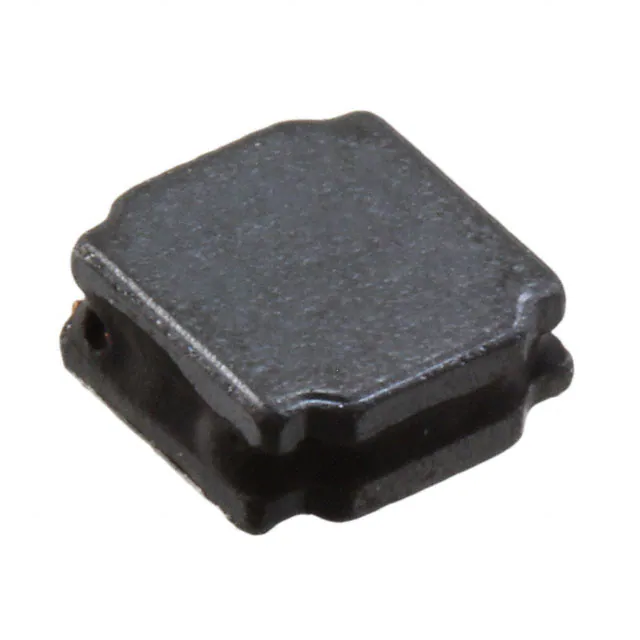

TYS40184R7M-10FIXED IND 4.7UH 1.2A 90 MOHM SMD Laird-Signal Integrity Products |
6,730 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1.7A | Shielded | 90mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018330M-10FIXED IND 33UH 490MA 530MOHM SMD Laird-Signal Integrity Products |
17,250 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 490 mA | 650mA | Shielded | 530mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018221M-10FIXED IND 220UH 170MA 4 OHM SMD Laird-Signal Integrity Products |
6,071 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 170 mA | 270mA | Shielded | 4Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018150M-10FIXED IND 15UH 650MA 250MOHM SMD Laird-Signal Integrity Products |
5,980 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 940mA | Shielded | 250mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
