购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS4018220M-10FIXED IND 22UH 590MA 360MOHM SMD Laird-Signal Integrity Products |
5,439 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 590 mA | 800mA | Shielded | 360mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018100M-10FIXED IND 10UH 840MA 180MOHM SMD Laird-Signal Integrity Products |
4,685 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 840 mA | 1.3A | Shielded | 180mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS4018470M-10FIXED IND 47UH 420MA 650MOHM SMD Laird-Signal Integrity Products |
3,254 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 420 mA | 570mA | Shielded | 650mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS40182R2M-10FIXED IND 2.2UH 1.65A 45MOHM SMD Laird-Signal Integrity Products |
2,967 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.65 A | 2.7A | Shielded | 45mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
TYS40183R3M-10FIXED IND 3.3UH 1.23A 70MOHM SMD Laird-Signal Integrity Products |
1,825 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.23 A | 2.45A | Shielded | 70mOhm | - | 44MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

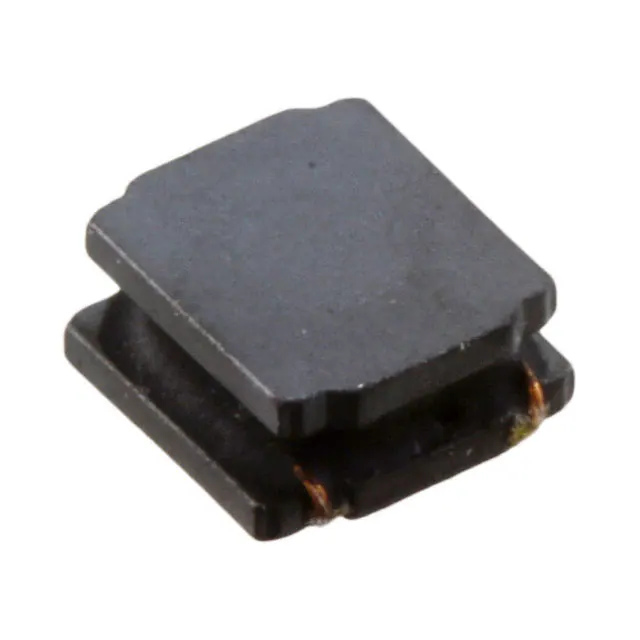

TYS30154R7M-10FIXED IND 4.7UH 1.09A 125MOHM SM Laird-Signal Integrity Products |
11,164 |
|
规格书 |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.09 A | 1.1A | Shielded | 125mOhm Max | - | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|

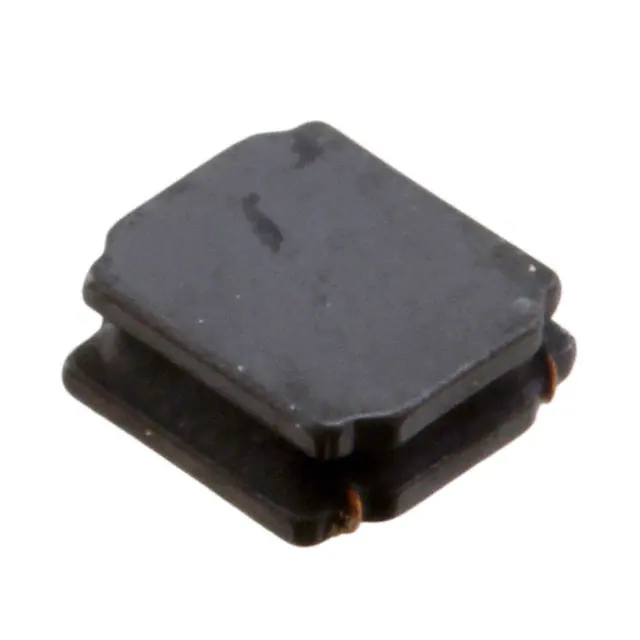

TYS30126R8M-10FIXED IND 6.8UH 980MA 190MOHM SM Laird-Signal Integrity Products |
9,896 |
|
规格书 |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 980 mA | 750mA | Shielded | 247mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS30156R8M-10FIXED IND 6.8UH 850MA 200MOHM SM Laird-Signal Integrity Products |
8,304 |
|
规格书 |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 850 mA | 850mA | Shielded | 200mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
TYS3015220M-10FIXED IND 22UH 570MA 460MOHM SMD Laird-Signal Integrity Products |
7,284 |
|
规格书 |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 570 mA | 520mA | Shielded | 460mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
TYS30151R0N-10FIXED IND 1UH 2.35A 35 MOHM SMD Laird-Signal Integrity Products |
5,995 |
|
规格书 |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 2.35 A | 2.32A | Shielded | 35mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
