购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7028A-4R7MFIXED IND 4.7UH 5.5A 40 MOHM SMD |
10,807 |
|
规格书 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | 20 @ 100kHz | 21MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

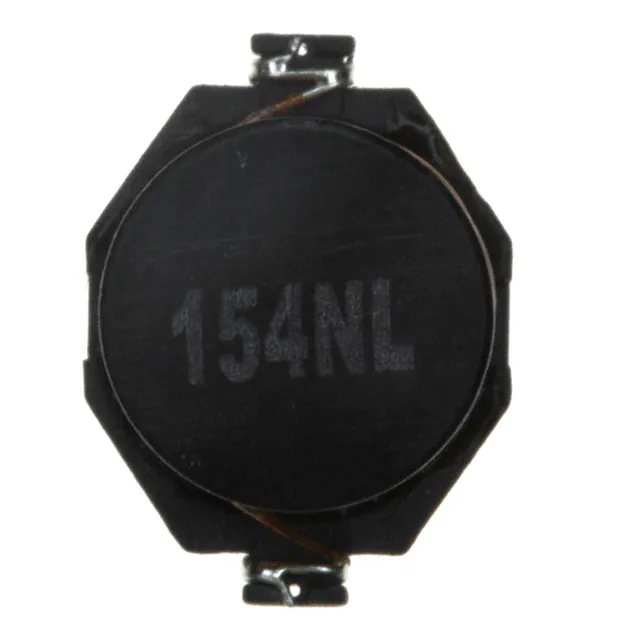

P0752.154NLTFIXED IND 150UH 1A 570 MOHM SMD |
3,769 |
|
规格书 |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1 A | 1A | Unshielded | 570mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

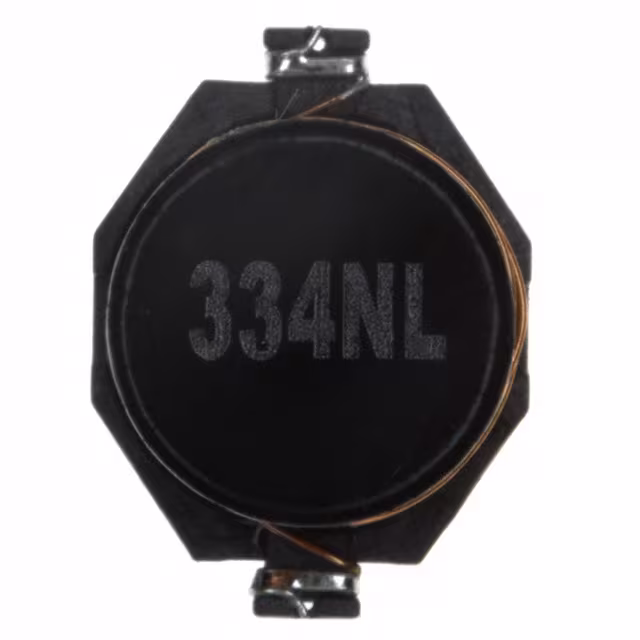

P0752.334NLTFIXED IND 330UH 600MA 1.02OHM SM |
2,936 |
|
规格书 |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

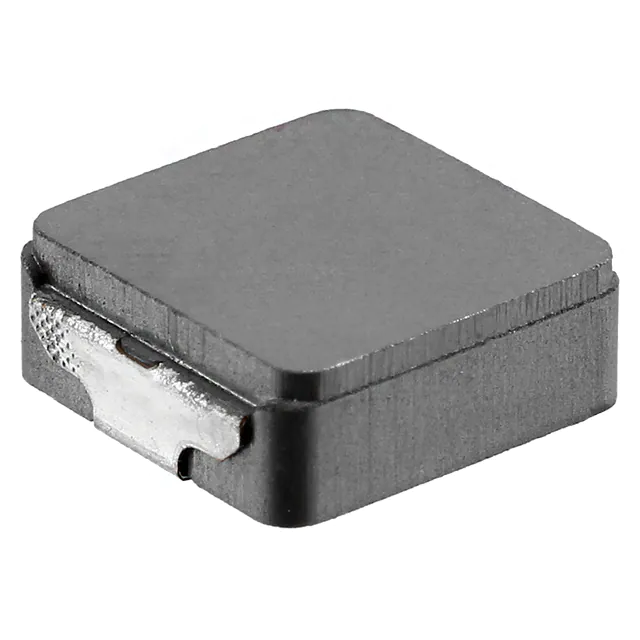

IHLP2525CZER100M5AFIXED IND 10UH 4A 76.9 MOHM SMD |
2,220 |
|
规格书 |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 2.9A | Shielded | 76.9mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

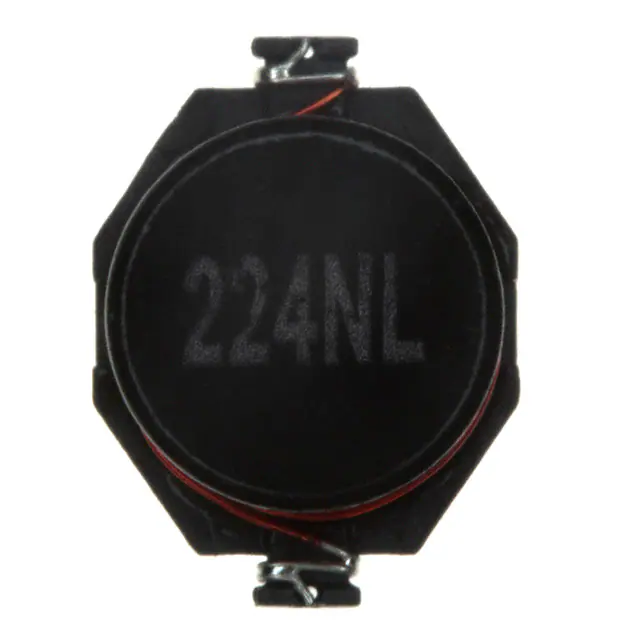

P0752.224NLTFIXED IND 220UH 800MA 840MOHM SM |
234 |
|
规格书 |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 800 mA | 800mA | Unshielded | 840mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
SRP7028A-1R0MFIXED IND 1UH 11A 10 MOHM SMD |
14,505 |
|
规格书 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | 20 @ 100kHz | 58MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-R10MFIXED IND 100NH 32.5A 1.7MOHM SM |
1,565 |
|
规格书 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 nH | ±20% | 32.5 A | 60A | Shielded | 1.7mOhm Max | 5 @ 100kHz | 300MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP1212AEERR22M11FIXED IND 220NH 8.5A 11.4MOHM SM |
951 |
|
规格书 |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 8.5 A | 9A | Shielded | 11.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|

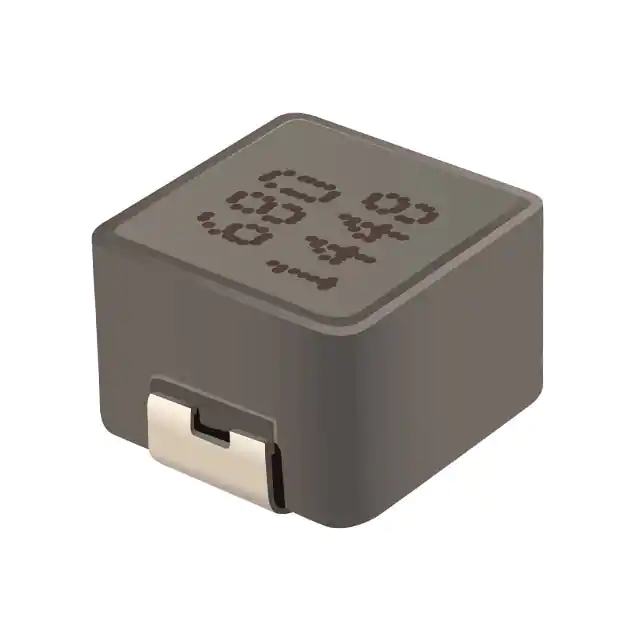

SRP7050TA-150MFIXED IND 15UH 3.5A 92 MOHM SMD |
16,585 |
|
规格书 |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 3.5 A | 6A | Shielded | 92mOhm Max | 15 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
IHLP4040DZER100M01FIXED IND 10UH 6.8A 36.5MOHM SMD |
6,855 |
|
规格书 |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6.8 A | 12A | Shielded | 36.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLP2525CZER220M8AFIXED IND 22UH 2.8A 174 MOHM SMD |
5,651 |
|
规格书 |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.76MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
CMLE063T-R15MS0R905FIXED IND 150NH 38A 0.9MOHM SMD |
69,797 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 38 A | 41A | Shielded | 0.9mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
VCMT063T-100MN5TFIXED IND 10UH 4A 70.5 MOHM SMD |
40,629 |
|
规格书 |
VCMT063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 4 A | 3.5A | Unshielded | 70.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
ETQ-P4M220YFPFIXED IND 22UH 2.3A 179 MOHM SMD |
4,277 |
|
规格书 |
PCC-M0540M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 2.3 A | 3.1A | Shielded | 179mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.157" (4.00mm) |
|

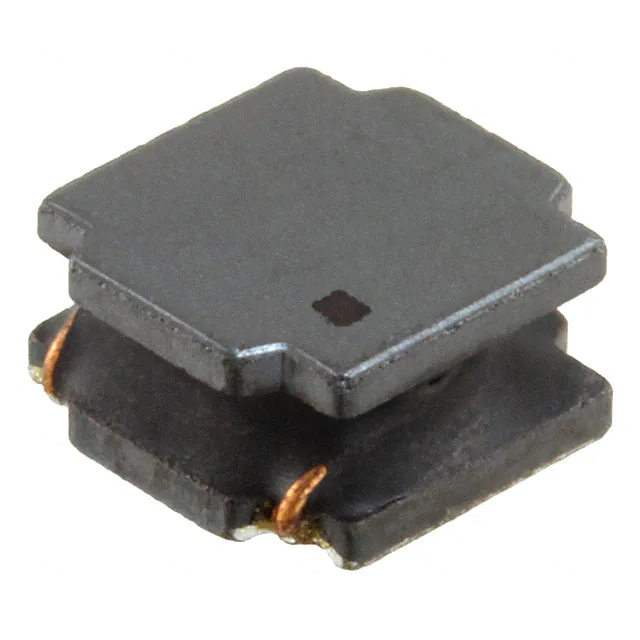

74404084221FIXED IND 220UH 810MA 592MOHM SM |
3,974 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 810 mA | 1.1A | Shielded | 592mOhm | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
CDR7D43MNNP-220NCFIXED IND 22UH 1.5A 106.4MOHM SM |
4,870 |
|
规格书 |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±25% | 1.5 A | 2.85A | Shielded | 106.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CDR7D43MNNP-100NCFIXED IND 10UH 2.5A 48.4MOHM SMD |
322 |
|
规格书 |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 2.5 A | 4.1A | Shielded | 48.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

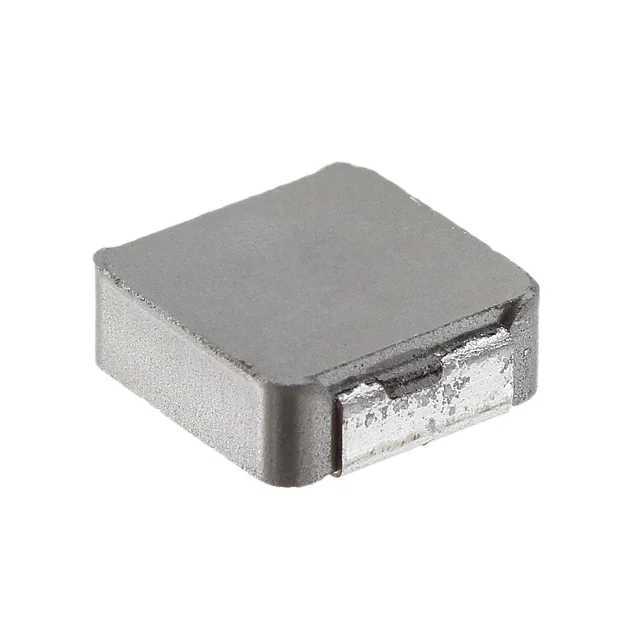

IHLP3232CZER150M11FIXED IND 15UH 4.3A 85.3MOHM SMD |
8,907 |
|
规格书 |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 4.3 A | 3.8A | Shielded | 85.3mOhm Max | - | 11MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
|
ETQ-P4M470YFNFIXED IND 47UH 2.2A 231 MOHM SMD |
249 |
|
规格书 |
PCC-M0645M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.2 A | 3.8A | Shielded | 231mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.177" (4.50mm) |
|

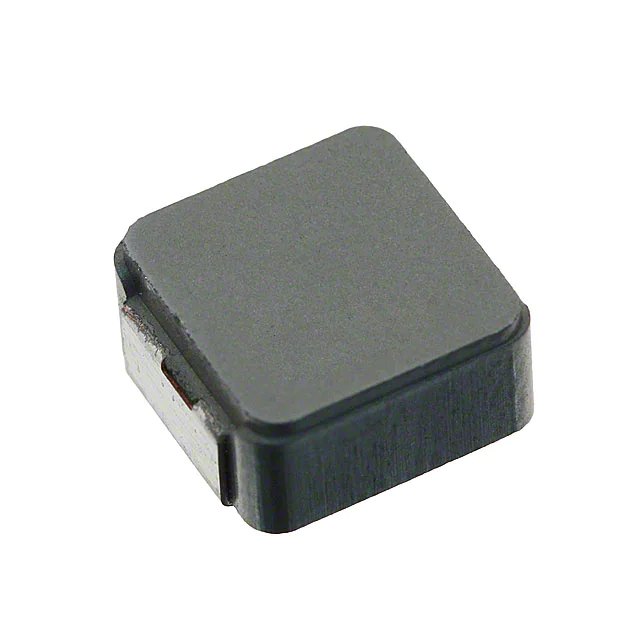

IHLP3232DZER2R2M11FIXED IND 2.2UH 14.5A 9.41 MOHM |
7,013 |
|
规格书 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 14.5 A | 10.2A | Shielded | 9.41mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
