购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1260-220MFIXED IND 22UH 4A 43 MOHM SMD |
11,022 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | 3.7A | Shielded | 43mOhm Max | 29 @ 2.52MHz | 13.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260-680MFIXED IND 68UH 2.1A 110 MOHM SMD |
10,118 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | 2.1A | Shielded | 110mOhm Max | 22 @ 2.52MHz | 7.43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR1280-102KFIXED IND 1MH 680MA 1.7 OHM SMD |
5,113 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 680 mA | 800mA | Shielded | 1.7Ohm Max | 40 @ 252kHz | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-221KFIXED IND 220UH 1.6A 400MOHM SMD |
3,493 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.6 A | 1.7A | Shielded | 400mOhm Max | 24 @ 796kHz | 3.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

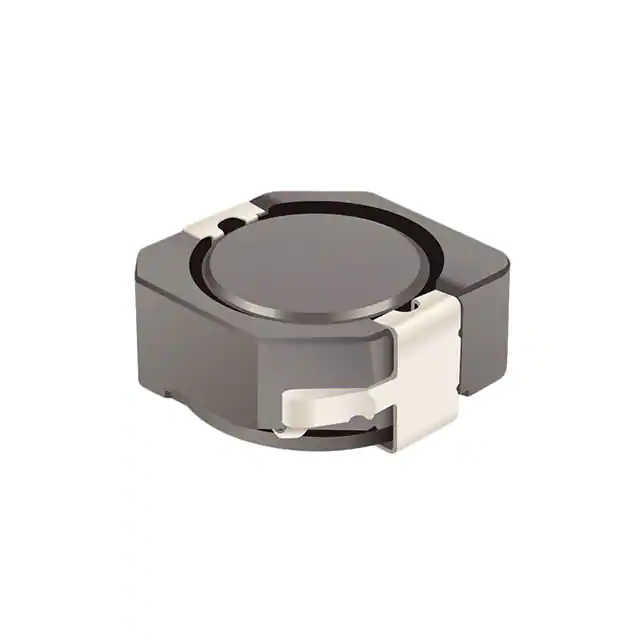

SRR1050A-101YFIXED IND 100UH 1.35A 255MOHM SM |
3,017 |
|
规格书 |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.35 A | 1.35A | Shielded | 255mOhm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRR1260-470MFIXED IND 47UH 2.6A 86 MOHM SMD |
2,692 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 2.5A | Shielded | 86mOhm Max | 22 @ 2.52MHz | 7.63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260-102KFIXED IND 1MH 680MA 1.7 OHM SMD |
2,596 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 680 mA | 600mA | Shielded | 1.7Ohm Max | 30 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
.jpg)
|
74479887310AFIXED IND 10UH 850MA 300MOHM SMD |
1,101 |
|
规格书 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 850 mA | 125mA | Shielded | 300mOhm | 27 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW32FT220M0HLFIXED IND 22UH 110MA 620MOHM SMD |
897 |
|
规格书 |
LQW32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 110 mA | 400mA | Shielded | 620mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
IHLP2525CZER4R7M01FIXED IND 4.7UH 5.5A 40 MOHM SMD |
14,913 |
|
规格书 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER3R3M01FIXED IND 3.3UH 6A 30 MOHM SMD |
7,990 |
|
规格书 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZERR47M01FIXED IND 470NH 17.5A 4.2MOHM SM |
6,757 |
|
规格书 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020CZER4R7M11FIXED IND 4.7UH 4.5A 60 MOHM SMD |
3,893 |
|
规格书 |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.5 A | 5.2A | Shielded | 60mOhm Max | - | 27MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
SRR1280-180MFIXED IND 18UH 4.8A 35 MOHM SMD |
3,058 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.8 A | 4.6A | Shielded | 35mOhm Max | 24 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-181KFIXED IND 180UH 1.75A 300MOHM SM |
2,554 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 1.75 A | 1.88A | Shielded | 300mOhm Max | 24 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1260-100MFIXED IND 10UH 5.5A 20 MOHM SMD |
1,725 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.5 A | 5.5A | Shielded | 20mOhm Max | 32 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
IHLP2525CZER6R8M01FIXED IND 6.8UH 4.5A 60 MOHM SMD |
9,354 |
|
规格书 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER100M01FIXED IND 10UH 3A 105 MOHM SMD |
7,985 |
|
规格书 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
PA4342.332NLTFIXED IND 3.3UH 11A 11.8MOHM SMD |
1,523 |
|
规格书 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 11 A | 20A | Shielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
IHLP1212BZER1R2M11FIXED IND 1.2UH 5A 27 MOHM SMD |
10,225 |
|
规格书 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 5 A | 4A | Shielded | 27mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
