购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR127-680-RFIXED IND 68UH 2.44A 105MOHM SMD |
113 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.44 A | 4.44A | Shielded | 105mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHLP2020CZER4R7M01FIXED IND 4.7UH 3.5A 77.5MOHM SM |
24,641 |
|
规格书 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.5 A | 8.2A | Shielded | 77.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
DR125-8R2-RFIXED IND 8.2UH 5.54A 17.6 MOHM |
4,993 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 5.54 A | 7.86A | Shielded | 17.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
CDRH3D16NP-6R8NCFIXED IND 6.8UH 730MA 170MOHM SM |
33,935 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 730 mA | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
IHLP2020CZER150M01FIXED IND 15UH 1.9A 265 MOHM SMD |
3,898 |
|
规格书 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 1.9 A | 2.5A | Shielded | 265mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZER1R0M01FIXED IND 1UH 9.2A 13.7 MOHM SMD |
2,495 |
|
规格书 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9.2 A | 12A | Shielded | 13.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
CDRH3D16NP-2R2NCFIXED IND 2.2UH 1.2A 72 MOHM SMD |
14,200 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.2 A | - | Shielded | 72mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
FP1308R3-R44-RFIXED IND 440NH 68A 0.18MOHM SMD |
10,018 |
|
规格书 |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±10% | 68 A | 37A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
IHLP1616BZER4R7M11FIXED IND 4.7UH 1.7A 105MOHM SMD |
4,123 |
|
规格书 |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.7 A | 1.75A | Shielded | 105mOhm Max | - | 29MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

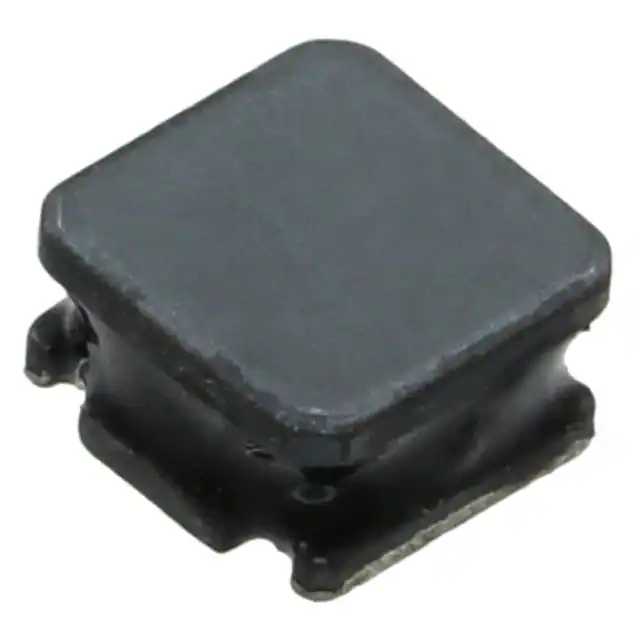

74404086331FIXED IND 330UH 850MA 698MOHM SM |
2,702 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 850 mA | 1.12A | Shielded | 698mOhm | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086101FIXED IND 100UH 1.35A 238MOHM SM |
2,044 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.35 A | 2.15A | Shielded | 238mOhm | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
SRR1260-101MFIXED IND 100UH 1.7A 180MOHM SMD |
167,987 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.7A | Shielded | 180mOhm Max | 26 @ 796kHz | 6.07MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR1280-100MFIXED IND 10UH 6A 19.5 MOHM SMD |
89,951 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6 A | 6.3A | Shielded | 19.5mOhm Max | 24 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-151KFIXED IND 150UH 1.85A 270MOHM SM |
32,273 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.85 A | 1.9A | Shielded | 270mOhm Max | 24 @ 796kHz | 4.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1260-150MFIXED IND 15UH 5A 27 MOHM SMD |
29,884 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 4.6A | Shielded | 27mOhm Max | 25 @ 2.52MHz | 17.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|

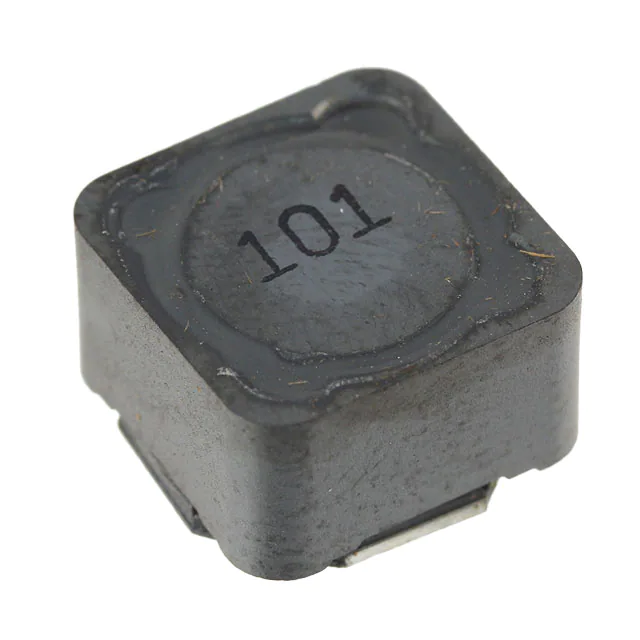

SRR1280-101MFIXED IND 100UH 2.1A 150MOHM SMD |
28,431 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.1 A | 2A | Shielded | 150mOhm Max | 18 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-150MFIXED IND 15UH 5.2A 28.5MOHM SMD |
25,524 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.2 A | 5A | Shielded | 28.5mOhm Max | 26 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-470MFIXED IND 47UH 2.9A 80 MOHM SMD |
20,258 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.9 A | 2.8A | Shielded | 80mOhm Max | 24 @ 2.52MHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1260-331KFIXED IND 330UH 1.15A 580MOHM SM |
17,693 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.15 A | 1.1A | Shielded | 580mOhm Max | 22 @ 796kHz | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1280-330MFIXED IND 33UH 3.5A 57 MOHM SMD |
15,922 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | 3.3A | Shielded | 57mOhm Max | 28 @ 2.52MHz | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
