购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-680MR60-PFFIXED IND 68UH 770MA 210MOHM SMD |
36,370 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 600mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

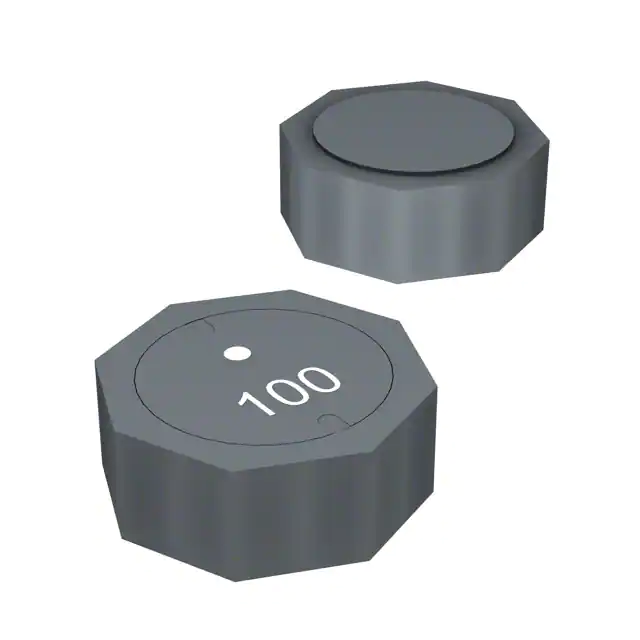

SRU1038-470YFIXED IND 47UH 1.65A 121MOHM SMD |
17,492 |
|
规格书 |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.65 A | 1.6A | Shielded | 121mOhm | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|

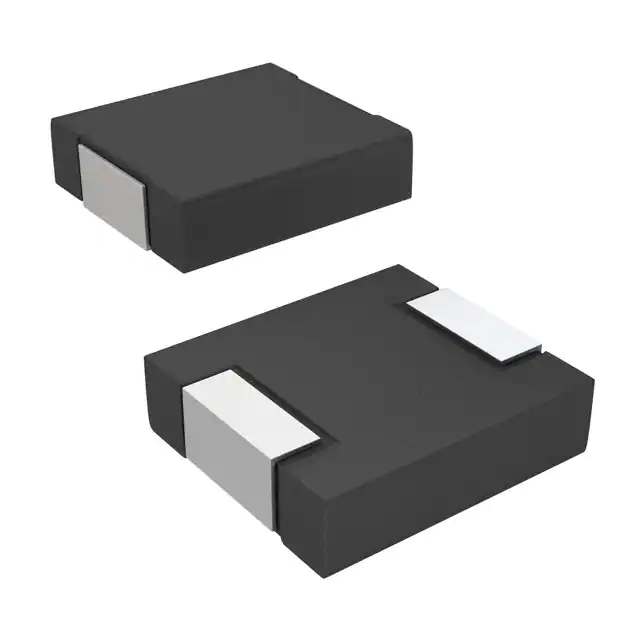

IHLP1616ABER2R2M11FIXED IND 2.2UH 2.75A 83.5 MOHM |
31,466 |
|
规格书 |
IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.75 A | 3A | Shielded | 83.5mOhm Max | - | 49MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|

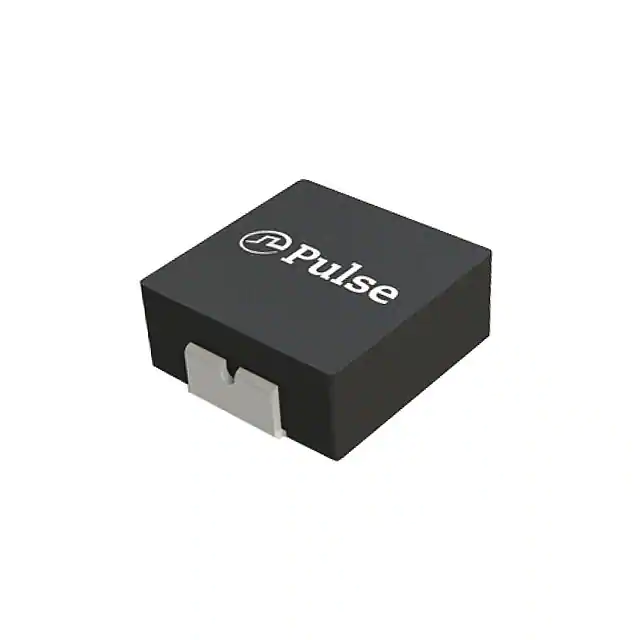

PA4341.473NLTFIXED IND 47UH 1.75A 363MOHM SMD |
6,421 |
|
规格书 |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 1.75 A | 2A | Shielded | 363mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
CDRH2D18/HPNP-4R7NCFIXED IND 4.7UH 1.2A 140MOHM SMD |
68,314 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

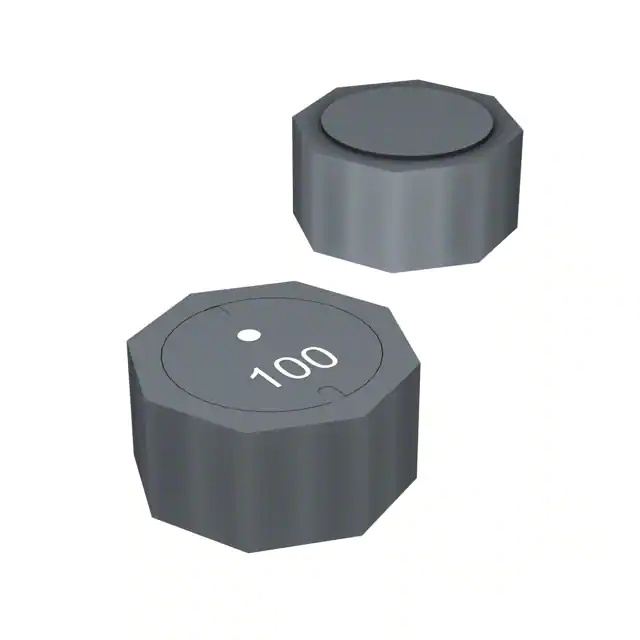

SRU1048-100YFIXED IND 10UH 4.5A 18.5MOHM SMD |
43,202 |
|
规格书 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.5 A | 3.7A | Shielded | 18.5mOhm | 26 @ 7.96MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-150YFIXED IND 15UH 3.2A 29 MOHM SMD |
30,570 |
|
规格书 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 2.7A | Shielded | 29mOhm | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|

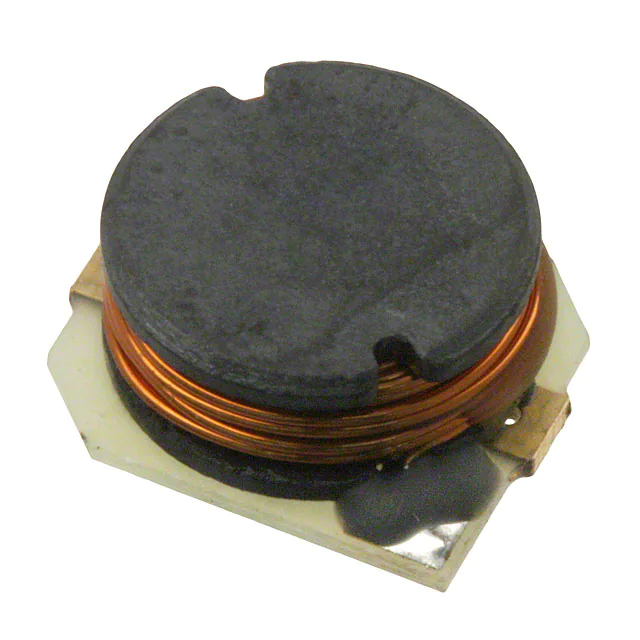

SDR1105-330KLFIXED IND 33UH 2.6A 100 MOHM SMD |
17,895 |
|
规格书 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.6 A | 5A | Unshielded | 100mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SRU1048-4R7YFIXED IND 4.7UH 5.5A 9.5MOHM SMD |
6,048 |
|
规格书 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.5 A | 4.75A | Shielded | 9.5mOhm | 12 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SDR1105-220MLFIXED IND 22UH 3A 80 MOHM SMD |
3,752 |
|
规格书 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 6.5A | Unshielded | 80mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|

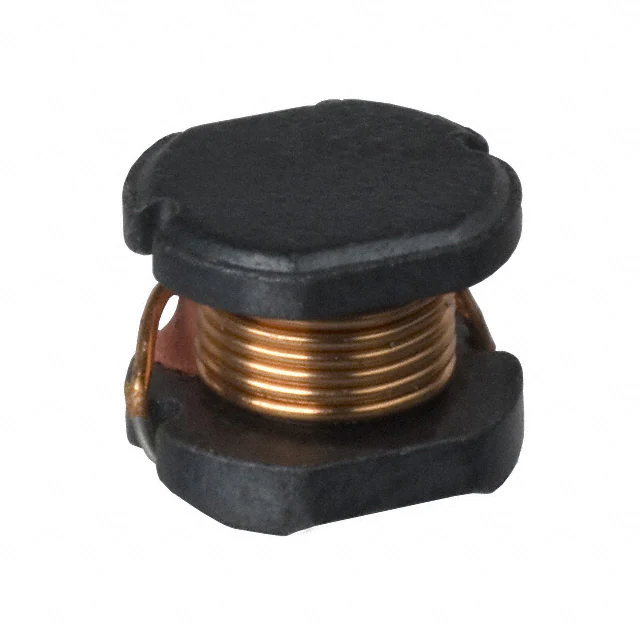

PM54-100M-RCFIXED IND 10UH 1.45A 100MOHM SMD |
36,580 |
|
规格书 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.45 A | 2A | Unshielded | 100mOhm | 30 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
CDRH2D18/HPNP-2R2NCFIXED IND 2.2UH 1.9A 60 MOHM SMD |
34,426 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.9 A | 1.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

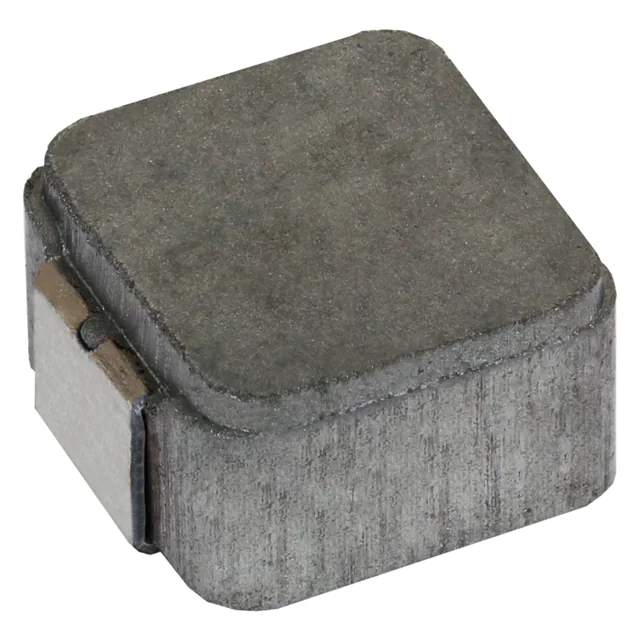

IHLP1212BZEVR10M5AFIXED IND 100NH 12.26A 6.95MOHM |
19,237 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 12.26 A | 13.46A | Shielded | 6.95mOhm Max | - | 380MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
CDRH2D18/HPNP-100NCFIXED IND 10UH 900MA 245MOHM SMD |
15,932 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 900 mA | 850mA | Shielded | 245mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
SRU1048-101YFIXED IND 100UH 1.2A 160MOHM SMD |
10,546 |
|
规格书 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.2 A | 1A | Shielded | 160mOhm | 26 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
MPI4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 OHM SMD |
5,865 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 3.8 A | 5.5A | Shielded | 48Ohm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|

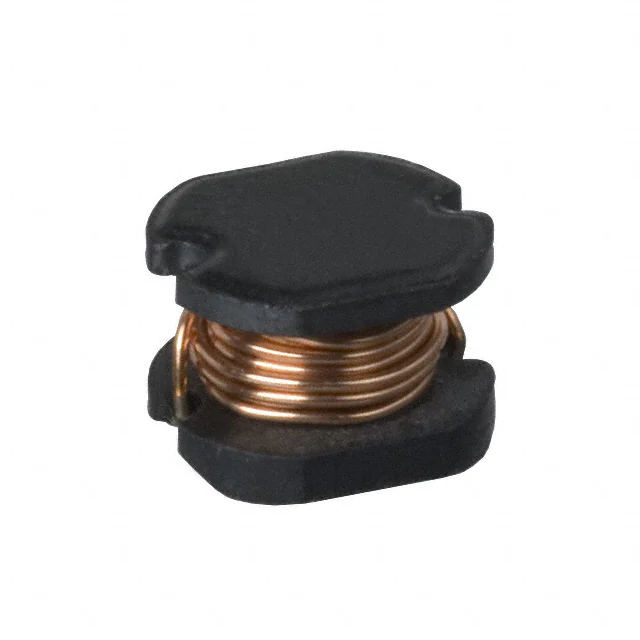

PM43-100M-RCFIXED IND 10UH 1.15A 180MOHM SMD |
1,448 |
|
规格书 |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.15 A | 1.7A | Unshielded | 180mOhm Max | 28 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CDRH2D14NP-2R2NCFIXED IND 2.2UH 1.6A 94 MOHM SMD |
92,358 |
|
规格书 |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.5A | Shielded | 94mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
CDRH127/LDNP-220MCFIXED IND 22UH 4.7A 36.4MOHM SMD |
63,137 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 4.7 A | - | Shielded | 36.4mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH125NP-470MCFIXED IND 47UH 1.8A 75 MOHM SMD |
63,094 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.8 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
