购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038A-470MFIXED IND 47UH 3A 167 MOHM SMD |
15,997 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH105RNP-100NCFIXED IND 10UH 4.5A 26 MOHM SMD |
9,314 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 4.5 A | 4.45A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRP1038A-4R7MFIXED IND 4.7UH 10A 15.5MOHM SMD |
6,738 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | 20 @ 100kHz | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
.jpg)
|

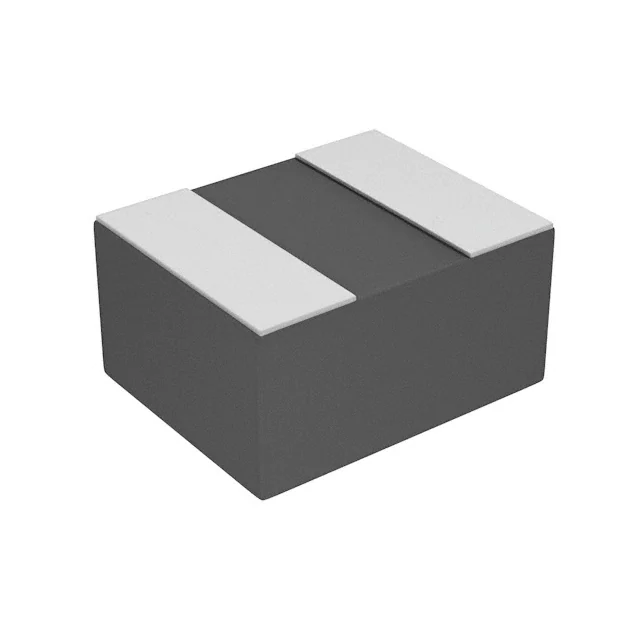

74438343022FIXED IND 2.2UH 1.1A 270MOHM SMD |
5,060 |
|
规格书 |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±30% | 1.1 A | 2.5A | Shielded | 270mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
IHLP4040DZERR36M01FIXED IND 360NH 31.5A 1.4MOHM SM |
4,923 |
|
规格书 |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 31.5 A | 60A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER220M11FIXED IND 22UH 5A 66 MOHM SMD |
3,178 |
|
规格书 |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5 A | 4.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SRP1038A-330MFIXED IND 33UH 3.5A 112 MOHM SMD |
1,565 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-150MFIXED IND 15UH 6.25A 45 MOHM SMD |
372 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

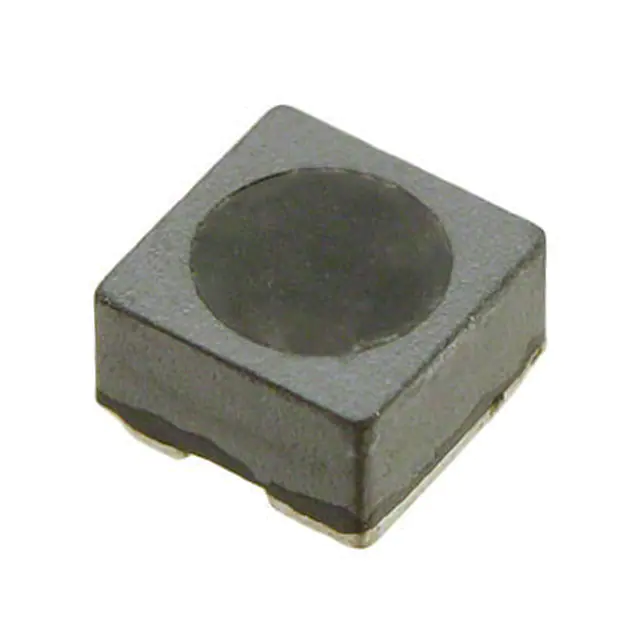

744043003FIXED IND 3.3UH 2.15A 35MOHM SMD |
14,295 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.15 A | 1.8A | Shielded | 35mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
744029001FIXED IND 1UH 2.2A 55 MOHM SMD |
8,520 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 1.6A | Shielded | 55mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
IHLP3232DZER220M11FIXED IND 22UH 4.3A 94.2MOHM SMD |
6,830 |
|
规格书 |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 4.3 A | 3.3A | Shielded | 94.2mOhm Max | - | 8.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
ETQ-P5M470YFCFIXED IND 47UH 4.2A 108.9MOHM SM |
5,909 |
|
规格书 |
PCC-M1054M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 4.2 A | 6.8A | Shielded | 108.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.421" W (10.00mm x 10.70mm) | 0.213" (5.40mm) |
|
744042004FIXED IND 4.7UH 1.72A 82MOHM SMD |
5,821 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.72 A | 1.65A | Shielded | 82mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
744029004FIXED IND 4.7UH 1A 200 MOHM SMD |
5,026 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1 A | 800mA | Shielded | 200mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
ETQ-P5M101YGCFIXED IND 97UH 2.7A 229 MOHM SMD |
2,291 |
|
规格书 |
PCC-M1050M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 97 µH | ±20% | 2.7 A | 3A | Shielded | 229mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.197" (5.00mm) |
|

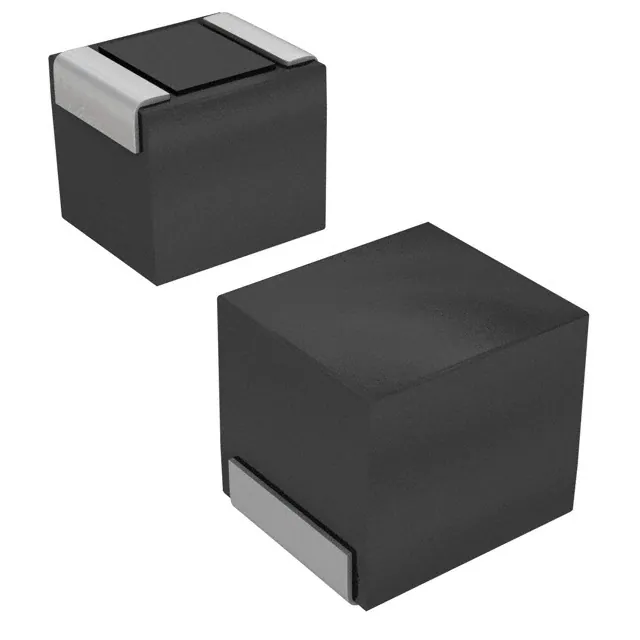

B82442T1103K050FIXED IND 10UH 1.42A 132MOHM SMD |
1,875 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.42 A | 2.28A | Unshielded | 132mOhm Max | 15 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
CDRH127/LDNP-330MCFIXED IND 33UH 3.9A 53.3MOHM SMD |
122,852 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 3.9 A | - | Shielded | 53.3mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LDNP-470MCFIXED IND 47UH 3.25A 78 MOHM SMD |
33,686 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 3.25 A | - | Shielded | 78mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LDNP-680MCFIXED IND 68UH 2.6A 120 MOHM SMD |
12,064 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.6 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LDNP-270MCFIXED IND 27UH 4.2A 41.6MOHM SMD |
4,787 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 4.2 A | - | Shielded | 41.6mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
