购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4030FA-3R3MFIXED IND 3.3UH 6.6A 28.6MOHM SM |
2,673 |
|
规格书 |
SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6.6 A | 4.8A | Shielded | 28.6mOhm Max | 10 @ 100kHz | 28MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|

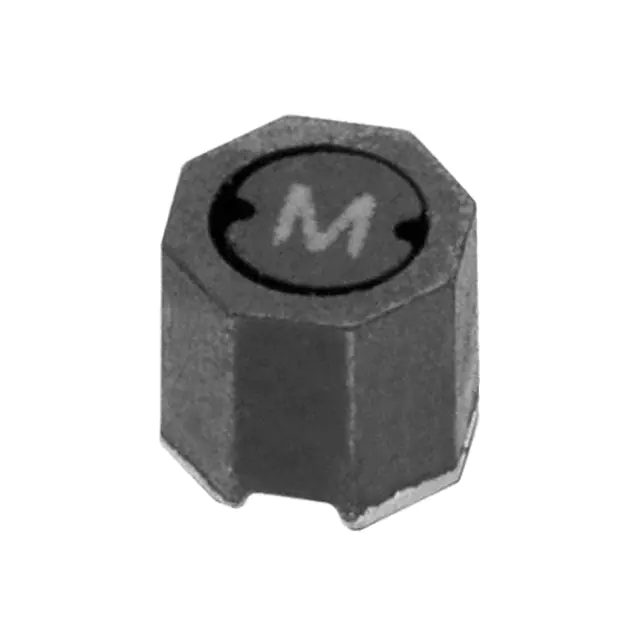

744025100FIXED IND 10UH 1A 190 MOHM SMD |
5,316 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.1A | Shielded | 190mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
SRP4030FA-4R7MFIXED IND 4.7UH 5.1A 44.1MOHM SM |
4,157 |
|
规格书 |
SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.1 A | 4.2A | Shielded | 44.1mOhm Max | 10 @ 100kHz | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|
|
744025002FIXED IND 2.2UH 1.8A 66 MOHM SMD |
3,699 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 2.4A | Shielded | 66mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
744025150FIXED IND 15UH 720MA 400MOHM SMD |
2,343 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 720 mA | 900mA | Shielded | 400mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|

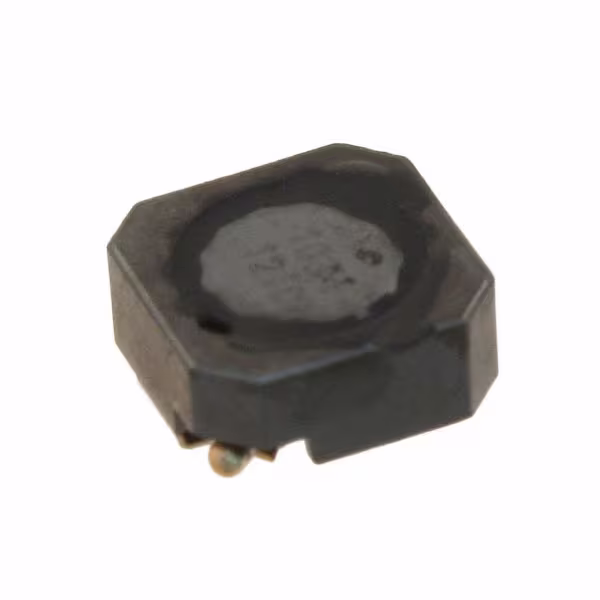

B82462G4104M000FIXED IND 100UH 530MA 580MOHM SM |
14,694 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 530 mA | 420mA | Shielded | 580mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|

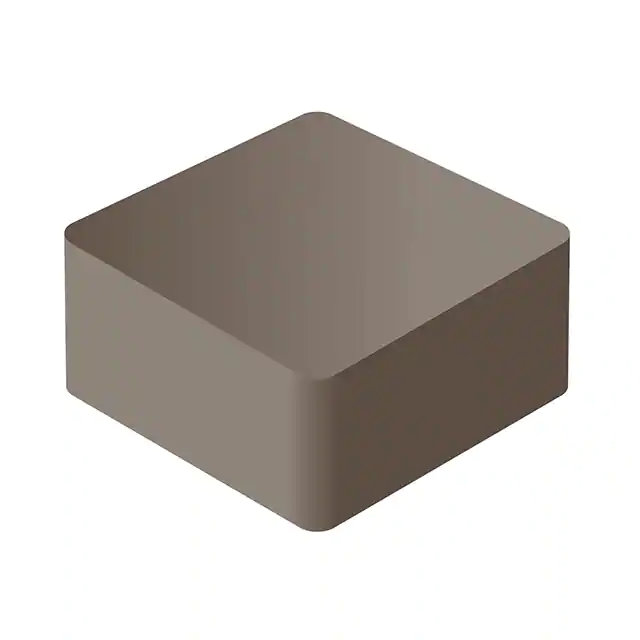

SRP5030CA-3R3MFIXED IND 3.3UH 8.1A 23.1MOHM SM |
2,158 |
|
规格书 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 8.1 A | 9.5A | Shielded | 23.1mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
B82462G4473M000FIXED IND 47UH 750MA 310MOHM SMD |
15,538 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 750 mA | 600mA | Shielded | 310mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4223M000FIXED IND 22UH 1.05A 150MOHM SMD |
10,024 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.05 A | 850mA | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4224M000FIXED IND 220UH 350MA 1.35OHM SM |
6,392 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 350 mA | 280mA | Shielded | 1.35Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4682M000FIXED IND 6.8UH 1.65A 50MOHM SMD |
5,984 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.5A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4103M000FIXED IND 10UH 1.5A 62 MOHM SMD |
5,648 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.3A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4472M000FIXED IND 4.7UH 2A 40 MOHM SMD |
2,809 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 1.8A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
BCL322520RT-330M-DINDUCTORS FOR POWER CIRCUITS, AU |
2,035 |
|
规格书 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 990 mA | 920mA | Shielded | 670mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|

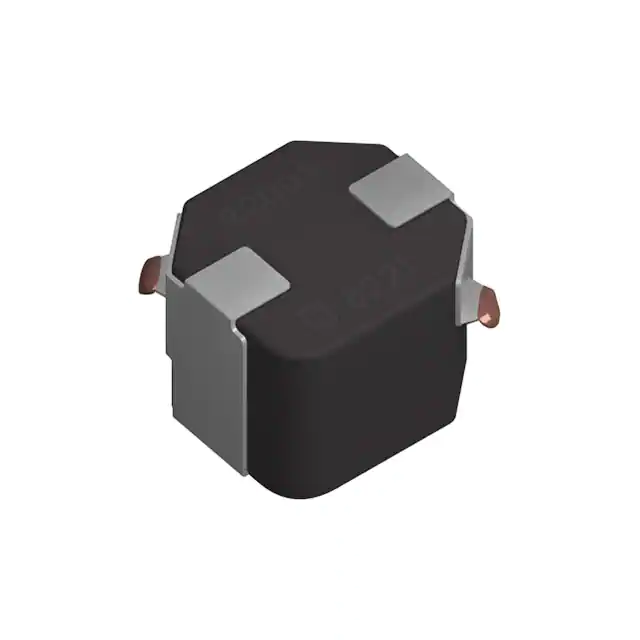

SPM7054VT-680M-DFIXED IND 68UH 2.1A 0.222OHM SMD |
2,000 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 2.1 A | 3.1A | Shielded | 222mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
B82462G4154M000FIXED IND 150UH 380MA 1.05OHM SM |
502 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 380 mA | 330mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|

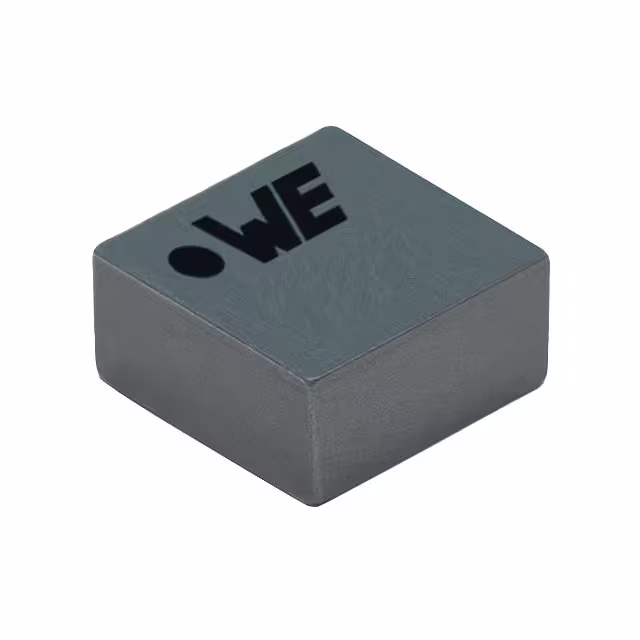

74438357022FIXED IND 2.2UH 5.2A 26 MOHM SMD |
22,939 |
|
规格书 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 5.2 A | 7A | Shielded | 26mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|

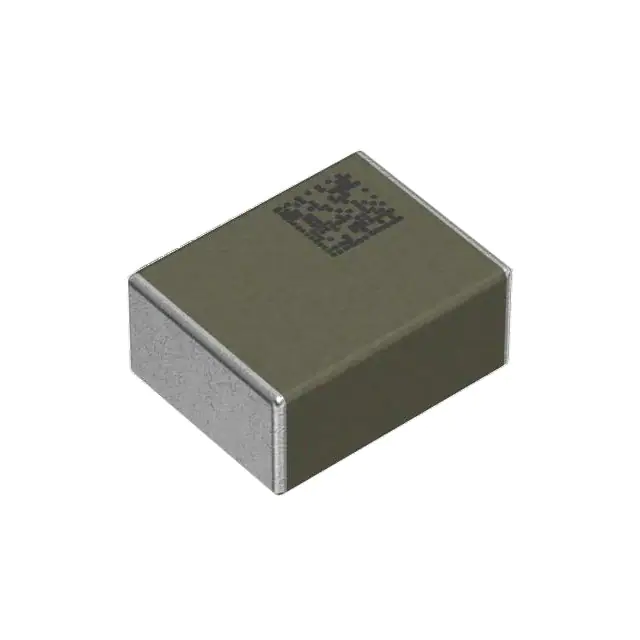

BCL322515RT-4R7M-DINDUCTORS FOR POWER CIRCUITS, AU |
7,266 |
|
规格书 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.08 A | 1.71A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|
|
74438357047FIXED IND 4.7UH 3.9A 44 MOHM SMD |
3,945 |
|
规格书 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 5.1 A | 6.4A | Shielded | 44mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
74438357082FIXED IND 8.2UH 2.8A 86 MOHM SMD |
3,146 |
|
规格书 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 2.8 A | 5.2A | Shielded | 86mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
