购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLFR1608T101M-LRFIXED IND 100UH 80MA 5.5 OHM SMD TDK Corporation |
1,078 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 100 µH | ±20% | 80 mA | 15mA | Shielded | 5.5Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T6R8M-LRFIXED IND 6.8UH 400MA 350MOHM SM TDK Corporation |
2,698 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±20% | 400 mA | 90mA | Shielded | 350mOhm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T3R3M-LRFIXED IND 3.3UH 525MA 230MOHM SM TDK Corporation |
4,280 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 525 mA | 120mA | Shielded | 230mOhm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

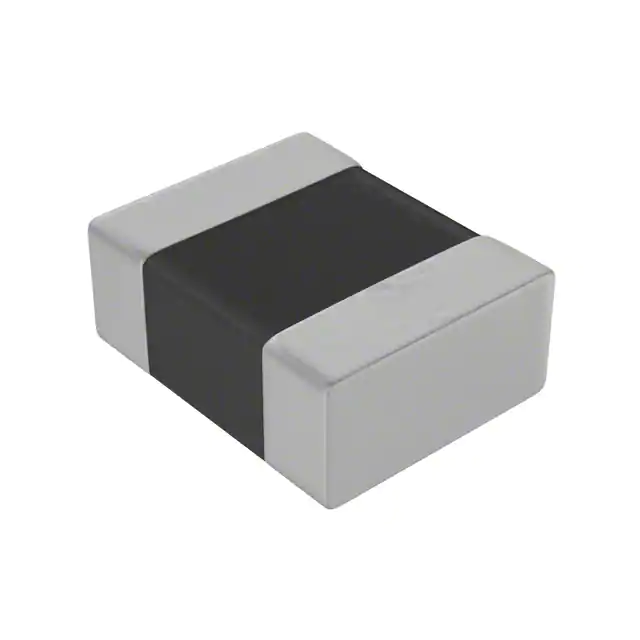

CPL2508T220MFIXED IND 22UH 180MA 3.12OHM SMD TDK Corporation |
3,283 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 180 mA | 180mA | Shielded | 3.12Ohm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.031" (0.80mm) |
|
|
CPL2508T2R2MFIXED IND 2.2UH 700MA 214.5 MOHM TDK Corporation |
2,576 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 700 mA | 700mA | Shielded | 214.5mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.031" (0.80mm) |
|
|
GLFR1608TR35M-LRFIXED IND 350NH 1.2A 40 MOHM SMD TDK Corporation |
2,030 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 350 nH | ±20% | 1.2 A | 330mA | Shielded | 40mOhm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLF1005L1R8KFIXED IND 1.8UH 20MA 1.05OHM SMD TDK Corporation |
1,426 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.8 µH | ±10% | 20 mA | - | Shielded | 1.05Ohm Max | 25 @ 10MHz | 90MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

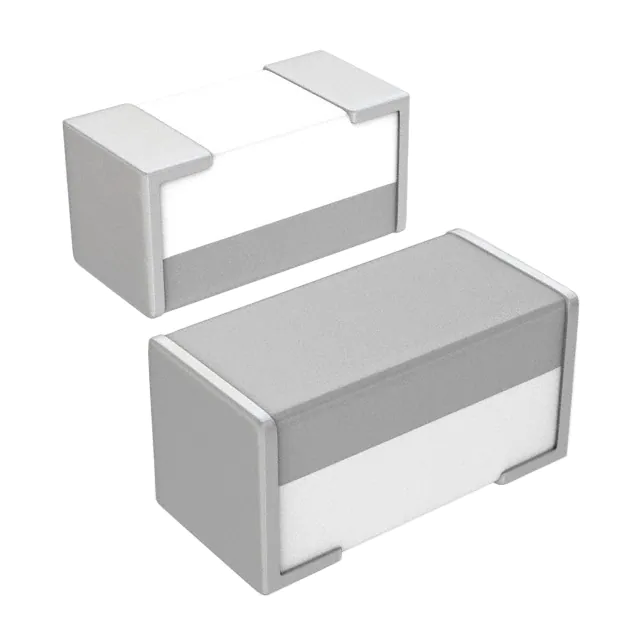

MLG0603Q11NJFIXED IND 11NH 200MA 800MOHM SMD TDK Corporation |
4,037 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 11 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 6 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q16NJFIXED IND 16NH 180MA 1.1 OHM SMD TDK Corporation |
2,911 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 16 nH | ±5% | 180 mA | - | Unshielded | 1.1Ohm Max | 6 @ 100MHz | 2.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q2N3SFIXED IND 2.3NH 450MA 300MOHM SM TDK Corporation |
1,442 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.3 nH | ±0.3nH | 450 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 7.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
