购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

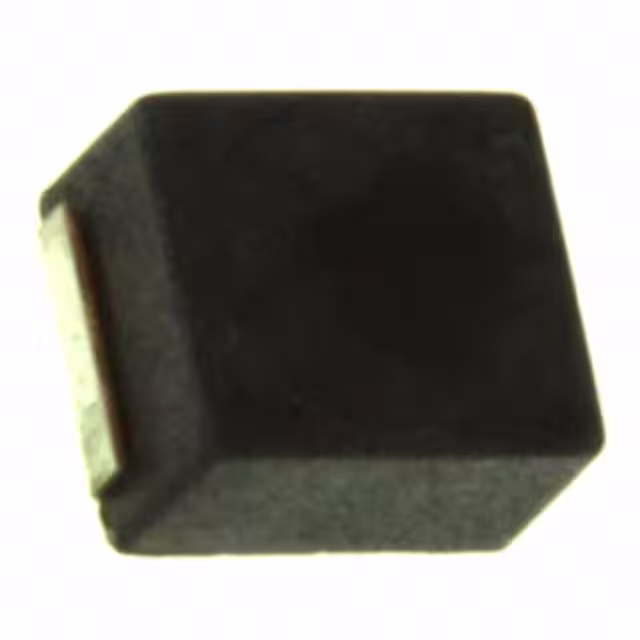

FLF3215T-100MFIXED IND 10UH 900MA 240MOHM SMD TDK Corporation |
3,142 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 700mA | Shielded | 240mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FLF3215T-1R0NFIXED IND 1UH 2.35A 36 MOHM SMD TDK Corporation |
4,016 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.35 A | 2A | Shielded | 36mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FLF3215T-220MFIXED IND 22UH 600MA 540MOHM SMD TDK Corporation |
1,655 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 600 mA | 450mA | Shielded | 540mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FLF3215T-2R2MFIXED IND 2.2UH 1.8A 60 MOHM SMD TDK Corporation |
3,226 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 1.4A | Shielded | 60mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FLF3215T-4R7MFIXED IND 4.7UH 1.36A 90MOHM SMD TDK Corporation |
2,166 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.36 A | 1A | Shielded | 90mOhm | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FLF3215T-R47NFIXED IND 470NH 2.8A 25.2MOHM SM TDK Corporation |
4,155 |
|
规格书 |
FLF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.8 A | 2.8A | Shielded | 25.2mOhm Max | - | 200MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|

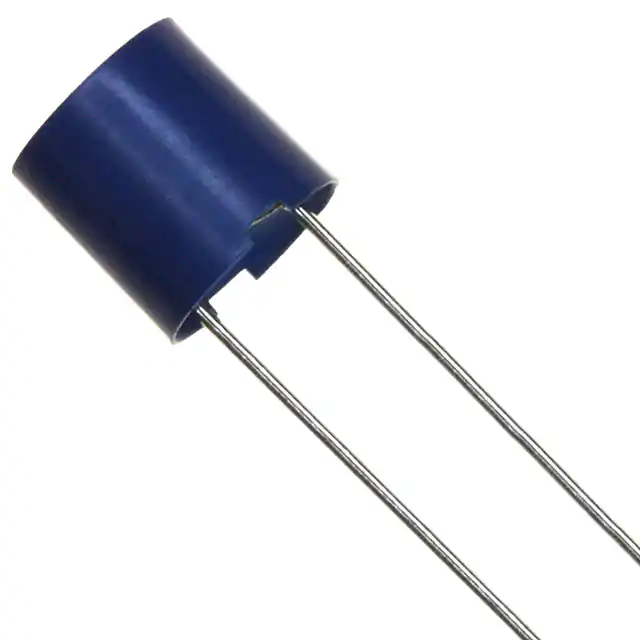

TSL0808RA-222KR17-PFFIXED IND 2.2MH 170MA 6.4 OHM TH TDK Corporation |
1,276 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 2.2 mH | ±10% | 170 mA | 170mA | Unshielded | 6.4Ohm Max | 50 @ 252kHz | 880kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-2R2M3R9-PFFIXED IND 2.2UH 3.9A 15 MOHM TH TDK Corporation |
4,917 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 2.2 µH | ±20% | 3.9 A | 5.6A | Unshielded | 15mOhm Max | 10 @ 7.96MHz | 45MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-332KR14-PFFIXED IND 3.3MH 140MA 8.5 OHM TH TDK Corporation |
3,758 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 3.3 mH | ±10% | 140 mA | 140mA | Unshielded | 8.5Ohm Max | 50 @ 252kHz | 710kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-472JR13-PFFIXED IND 4.7MH 130MA 12.2OHM TH TDK Corporation |
3,037 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 4.7 mH | ±5% | 130 mA | 150mA | Unshielded | 12.2Ohm Max | 50 @ 252kHz | 680kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
