| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF5012AT-2R2M1R5FIXED IND 2.2UH 1.5A 110MOHM SMD TDK Corporation |
4,194 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 2.3A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|
|
VLF5012AT-4R7M1R2FIXED IND 4.7UH 1.2A 160MOHM SMD TDK Corporation |
4,258 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|

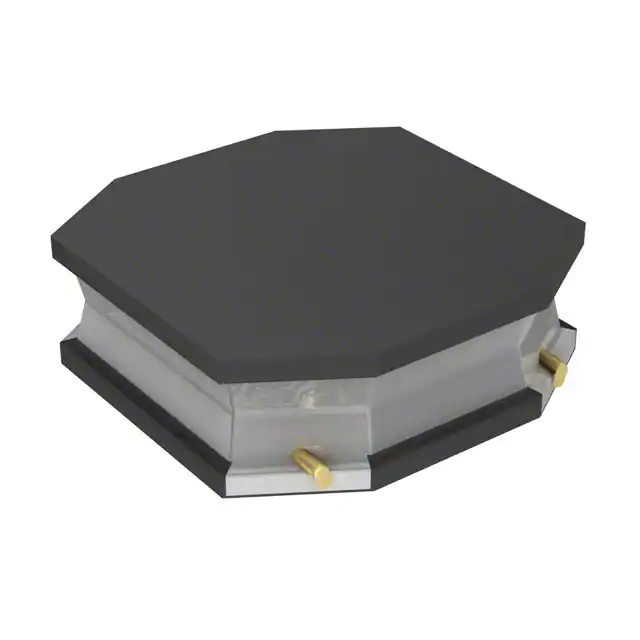

VLS3010T-1R0N1R9FIXED IND 1UH 2.1A 72 MOHM SMD TDK Corporation |
3,708 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 2.1 A | 1.7A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
VLS3010T-4R7MR80FIXED IND 4.7UH 800MA 204MOHM SM TDK Corporation |
4,768 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 800 mA | 800mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
TSL1315RA-102JR78-PFFIXED IND 1MH 780MA 1 OHM TH TDK Corporation |
3,714 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 1 mH | ±5% | 780 mA | 1.2A | Unshielded | 1Ohm Max | 30 @ 252kHz | 1MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-151K2R1-PFFIXED IND 150UH 2.1A 140 MOHM TH TDK Corporation |
3,268 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 150 µH | ±10% | 2.1 A | 3.2A | Unshielded | 140mOhm Max | 50 @ 796kHz | 2.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
LTF5022T-1R8N3R6-LCFIXED IND 1.8UH 3.8A 32 MOHM SMD TDK Corporation |
2,592 |
|
规格书 |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 3.8 A | 3.6A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|
GLFR1608T150M-LRFIXED IND 15UH 220MA 900MOHM SMD TDK Corporation |
3,745 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 220 mA | 55mA | Shielded | 900mOhm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T330M-LRFIXED IND 33UH 120MA 2.2 OHM SMD TDK Corporation |
2,036 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 120 mA | 40mA | Shielded | 2.2Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T680M-LRFIXED IND 68UH 90MA 4 OHM SMD TDK Corporation |
1,947 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 90 mA | 20mA | Shielded | 4Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
