购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

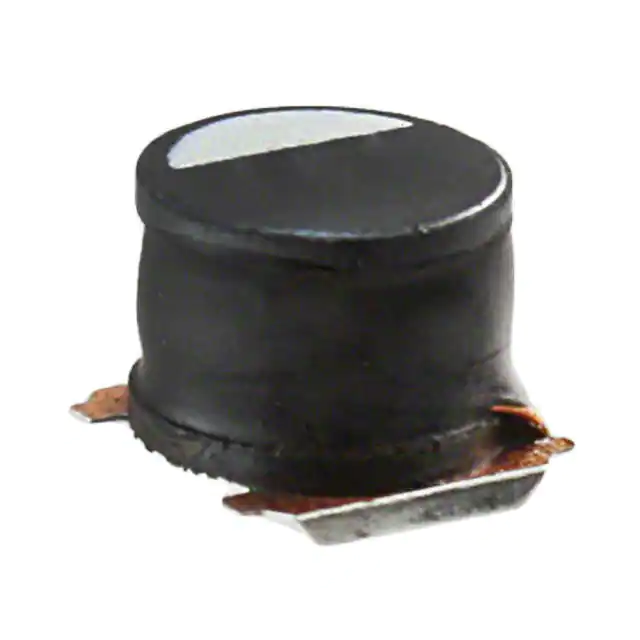

VLC5045T-330MFIXED IND 33UH 1.2A 230 MOHM SMD TDK Corporation |
3,635 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.2 A | 1.2A | Shielded | 230mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|

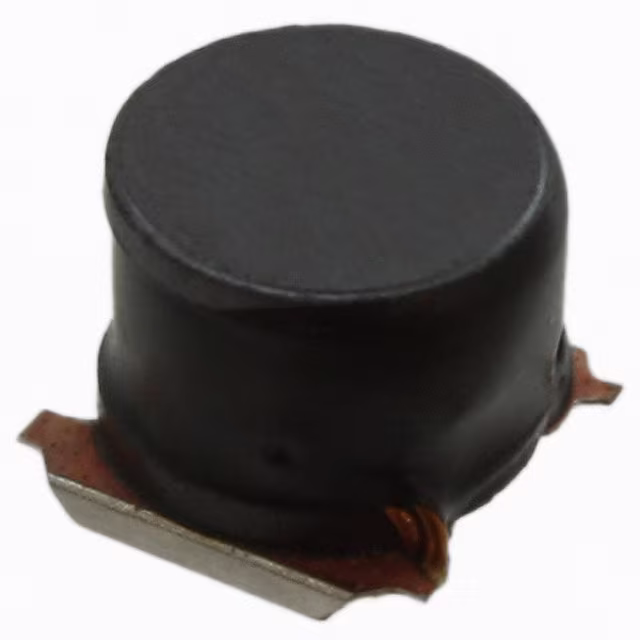

VLC5045T-3R3NFIXED IND 3.3UH 4A 29 MOHM SMD TDK Corporation |
3,189 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 4 A | 4A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-4R7MFIXED IND 4.7UH 3.3A 34 MOHM SMD TDK Corporation |
4,041 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.3 A | 3.3A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-6R8MFIXED IND 6.8UH 2.7A 46 MOHM SMD TDK Corporation |
1,639 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.7 A | 2.7A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLC6045T-101MFIXED IND 100UH 800MA 590MOHM SM TDK Corporation |
3,074 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 800 mA | 800mA | Shielded | 590mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-150MFIXED IND 15UH 2.1A 91 MOHM SMD TDK Corporation |
1,451 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.1 A | 2.1A | Shielded | 91mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-151MFIXED IND 150UH 600MA 750MOHM SM TDK Corporation |
1,033 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±20% | 600 mA | 600mA | Shielded | 750mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-1R5NFIXED IND 1.5UH 5.7A 15 MOHM SMD TDK Corporation |
3,811 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 5.7 A | 5.7A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-220MFIXED IND 22UH 1.7A 130 MOHM SMD TDK Corporation |
2,960 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.7 A | 1.7A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-2R2NFIXED IND 2.2UH 5.5A 17 MOHM SMD TDK Corporation |
2,367 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 5.5 A | 5.5A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
