购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS6045EX-221M-HFIXED IND 220UH 500MA 1.495 OHM TDK Corporation |
3,218 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 800mA | Shielded | 1.495Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
TFM201610ALMA1R5MTAAFIXED IND 1.5UH 2.3A 110MOHM SMD TDK Corporation |
25,066 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 2.3 A | 2.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

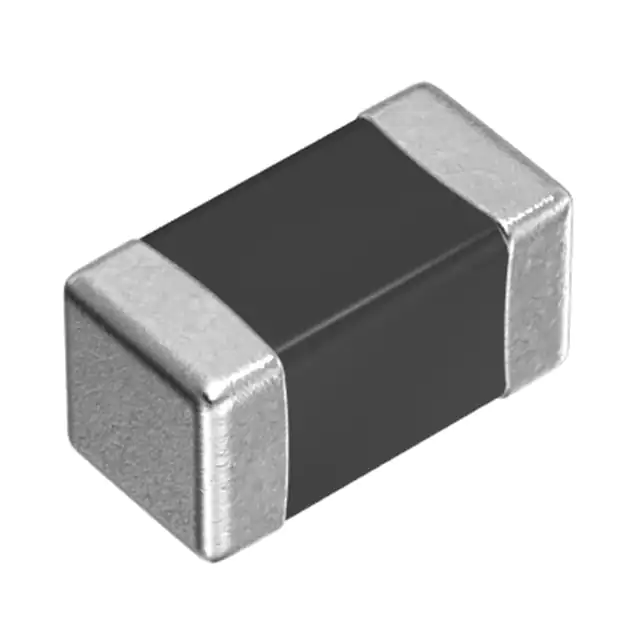

TFM201610ALC-R47MTAAFIXED IND 470NH 5.2A 25 MOHM SMD TDK Corporation |
10,994 |
|
规格书 |
TFM-ALC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 5.2 A | 5.1A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLCF5020T-100MR87FIXED IND 10UH 870MA 182MOHM SMD TDK Corporation |
7,385 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 870 mA | 870mA | Shielded | 182mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TFM201610ALMAR33MTAAFIXED IND 330NH 4.3A 31 MOHM SMD TDK Corporation |
6,083 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4.3 A | 5.2A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLCF4020T-100MR85FIXED IND 10UH 850MA 185MOHM SMD TDK Corporation |
14,939 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 850 mA | 850mA | Shielded | 185mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

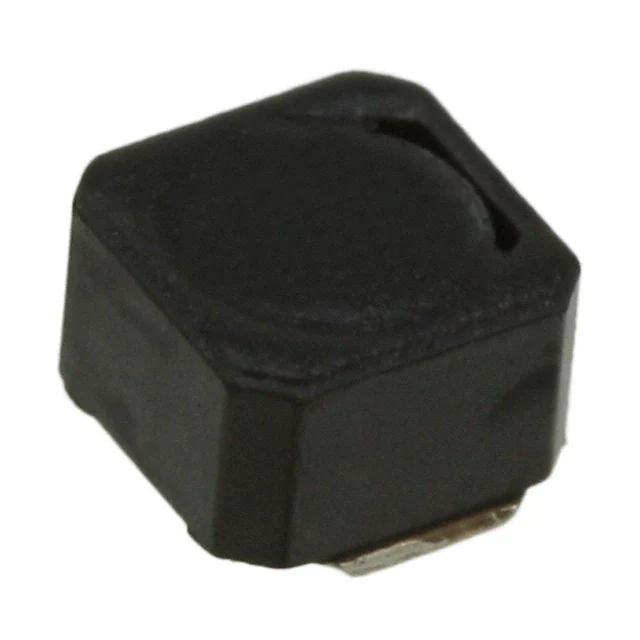

VLCF4028T-471MR14-2FIXED IND 470UH 140MA 4.58OHM SM TDK Corporation |
2,946 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 140 mA | 140mA | Shielded | 4.58Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
TFM201208BLD-R11MTCAIND 110NH 8.8A 13MOHM -40~125 TDK Corporation |
1,518 |
|
规格书 |
TFM-BLD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 110 nH | ±20% | 5.9 A | 7.1A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|

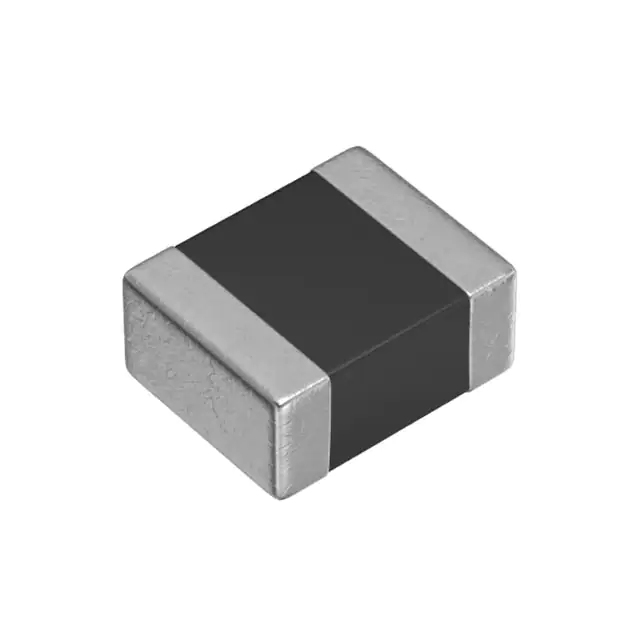

TMS252012ALM-2R2MTAAFIXED IND 2.2UH 2.6A 84 MOHM SMD TDK Corporation |
14,912 |
|
规格书 |
TMS-ALM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.6 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CLF7045NIT-331M-DFIXED IND 330UH 500MA 960MOHM SM TDK Corporation |
17,316 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 500 mA | 500mA | Shielded | 960mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
